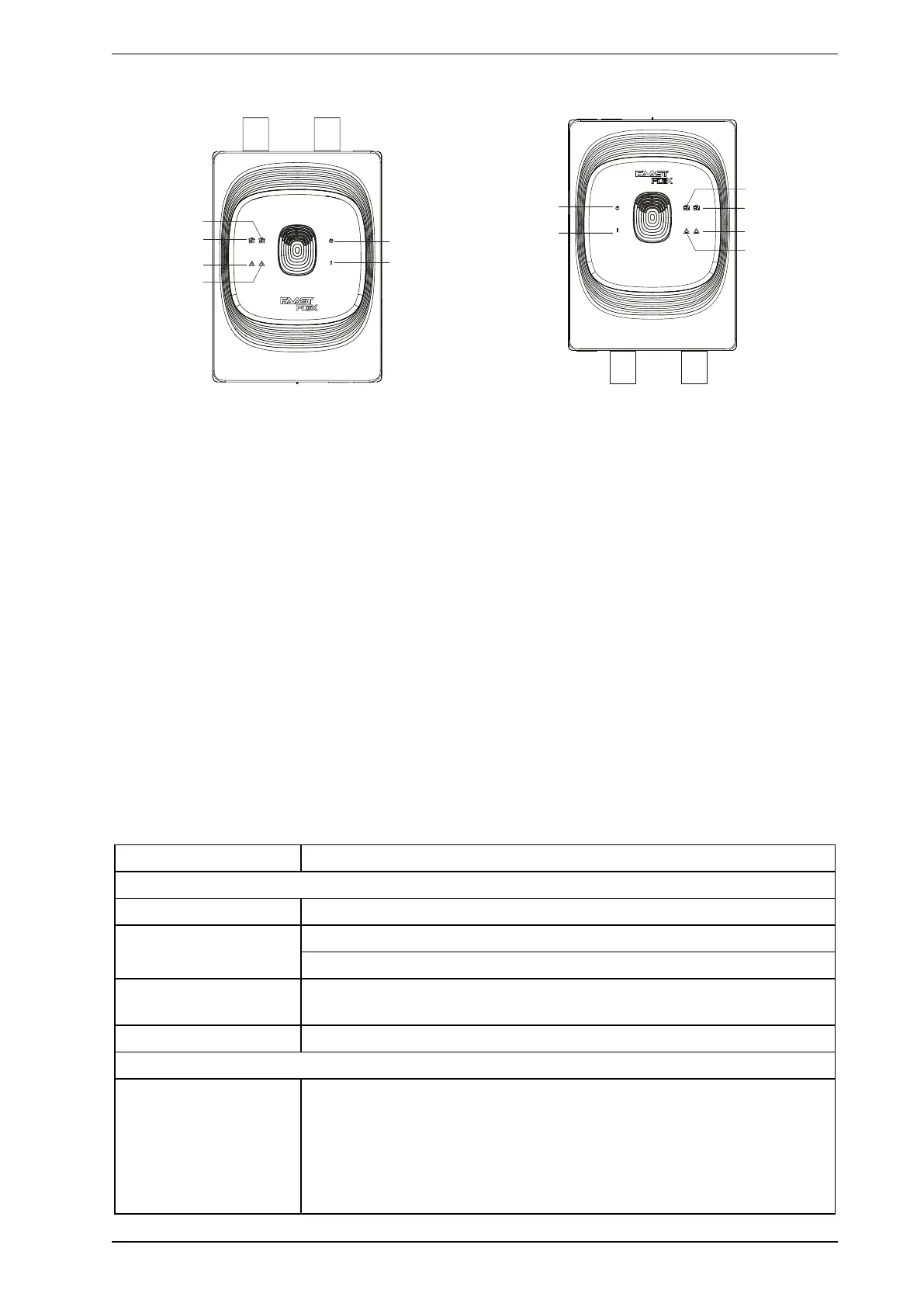

FAASTFLEX FAAST FLEX Product Guide
www.xtralis.com 6
ALARM 1
ALARM 2
ACTION 1
POWER
FAULT
ACTION 2
ALARM 1
ALARM 2
ACTION 1
POWER
FAULT
ACTION 2
Standard Mounting Inverted Mounting
Figure2-3: FAAST FLEX Indicator LEDs
2.4 Audible Alarms
The FAAST FLEX has a buzzer that provides the following audible feedback:
l Buzzer will sound whenever the user presses a button. This is the default configuration and it can be
disabled with the Silence button (See section 6.3 WAIT Mode).
l Buzzer will sound for 0.5 seconds when the NORMALIZE procedure is completed (See section 6.3.4
Normalize).
l Buzzer will sound for 0.5 seconds when a data log file or a DIAGTEST.txt has been written to the USB
drive (See section 6.3.8 Test Mode).
l Buzzer will sound for 0.5 seconds when the cover is opened or closed and there is a conflict between the
DIP switch settings and the current device configuration (for example, if a DIP switch has been
accidentally changed).
l Buzzer will sound for 0.5 when the detector is connected / disconnected to SMARTCONFIG (Bluetooth
App).
l Buzzer will sound for 0.5 when the passcode recovery procedure is done.
2.5 Specifications
Specification Value
Electrical Characteristics
Voltage Range 18-30 VDC (24 V Nominal)
Supply Current
(@24 VDC 2C)
Single Channel Model: 200 mA (typical) 400 mA (max) @ 24V
Dual Channel Model: 220 mA (typical) 450 mA (max) @ 24V
General Purpose Input
(GPI)
Activation Time 2s (min)
Relay Contact Ratings 2.0 A @ 30 VDC, 0.5 A @ 30 VAC
Environmental Ratings
Operating Conditions Temperature:
l Ambient: -40 °C to 55 °C (-40°F to 13F)
l Sampled Air: -40 °C to 55 °C (-40°F to 131°F)
Humidity:
l 10-93% RH, non-condensing
Table2-2: FAAST FLEX Detector Specifications
