6.3.8 Test Mode
In TEST mode, the device will perform a self-test. As tests are executed the user must confirm each step of
the test before it continues.
Follow these steps to enter TEST mode execute the self-test.
Note: If any of these steps do NOT complete correctly, press the SILENCE/+ button to indicate FAIL
condition for the test step. If 30 seconds pass without pressing TEST, the test fails.

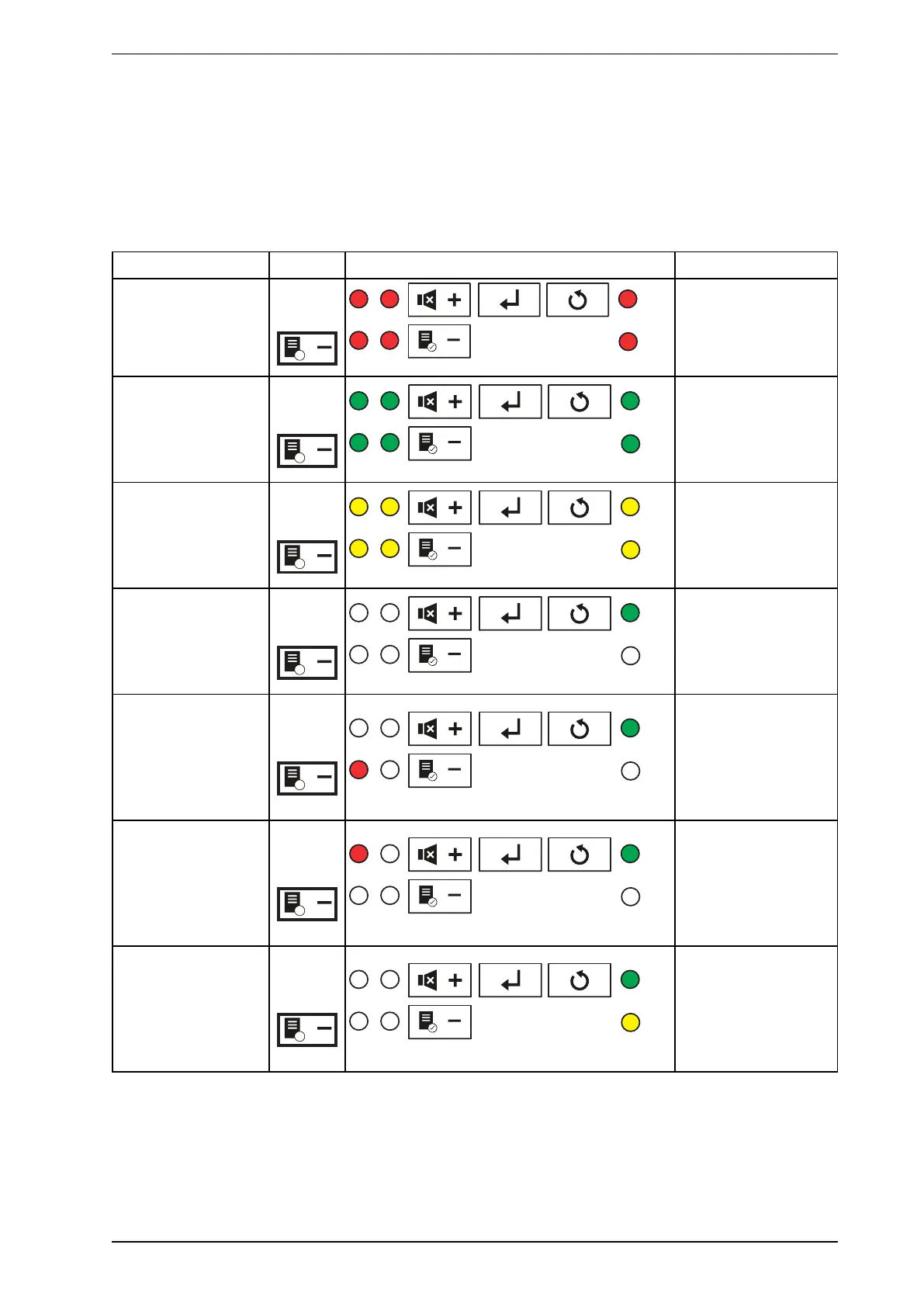

Action Button Action(s) Description
Short press the TEST
button. /+
Short
Press
1 3
2 4
5
6
All LEDs will show red
in the following
sequence: 1, 3, 5, 6, 4,
2.
Press the TEST
button to confirm test
PASS or press
Silence to enter test
FAIL.
Short
Press
1 3
2
4
5
6
All LEDs will show
green in the following
sequence: 1, 3, 5, 6, 4,
2.
Press the TEST
button to confirm test
PASS or press
Silence to enter test
FAIL.
Short
Press
1 3
2 4
5
6
Buzzer will sound for 1
second and all LEDs
will show yellow in the
following sequence: 1,
3, 5, 6, 4, 2.
Press the TEST
button to confirm test
PASS or press
Silence to enter test
FAIL.
Short
Press
1 3
2
4
5
6
LED 5 shows green,
indicating normal
condition (no
action/alarms or
faults).
Press the TEST
button to confirm test
PASS or press
Silence to enter test
FAIL.
Short
Press
1 3
2
4
5
6
LED 2 shows red and
LED5 shows green to
indicate Action
condition on Channel
1. Relay activation can
be checked.
Press the TEST
button to confirm test
PASS or press
Silence to enter test
FAIL.
Short
Press
1 3
2
4
5
6
LED 1 shows red and
LED5 shows green to
indicate Alarm
condition on Channel
1. Relay activation can
be checked.
Press the TEST
button to confirm test
PASS or press
Silence to enter test
FAIL.
Short
Press
1 3
2
4
5
6
LED 5 shows green
and LED 6 shows
yellow to indicate Fault
condition on Channel
1. Relay activation can
be checked.
