c. Remove the display panel cable (3).
The display panel cable is available using spare part number 734407-001.

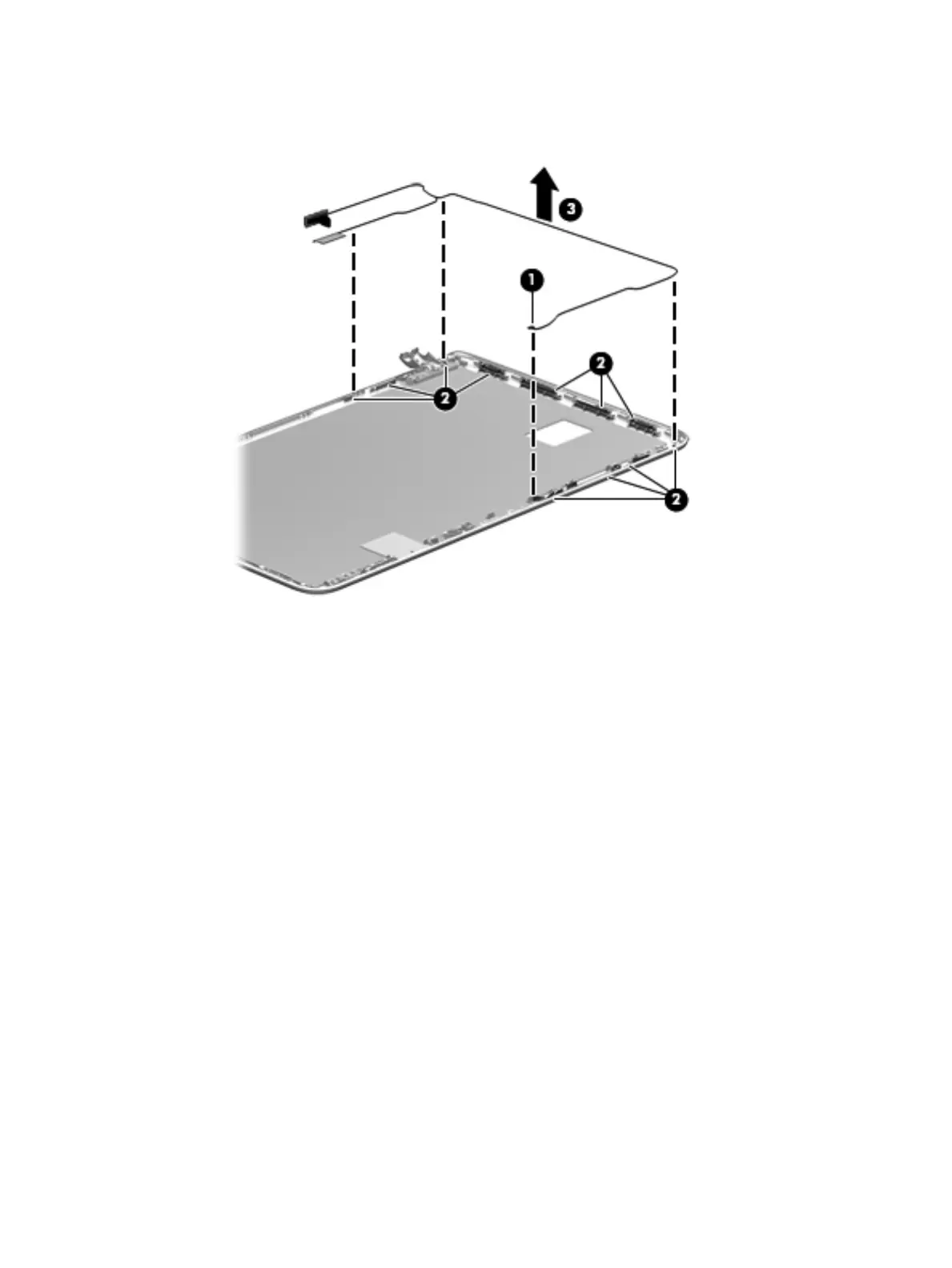

7. If it is necessary to replace the wireless antenna cables and transceivers:
a. Release the wireless antenna transceiver (1) from the display enclosure. (The wireless antenna
transceiver is attached to the display enclosure with double-sided adhesive.)
b. Release the wireless antenna cable from the clips (2) built into the display enclosure.
Component replacement procedures 67
