HP 1910 - V1910-24 G-Poe (365 W) Panel Views; 1910-8 G Panel Views

4

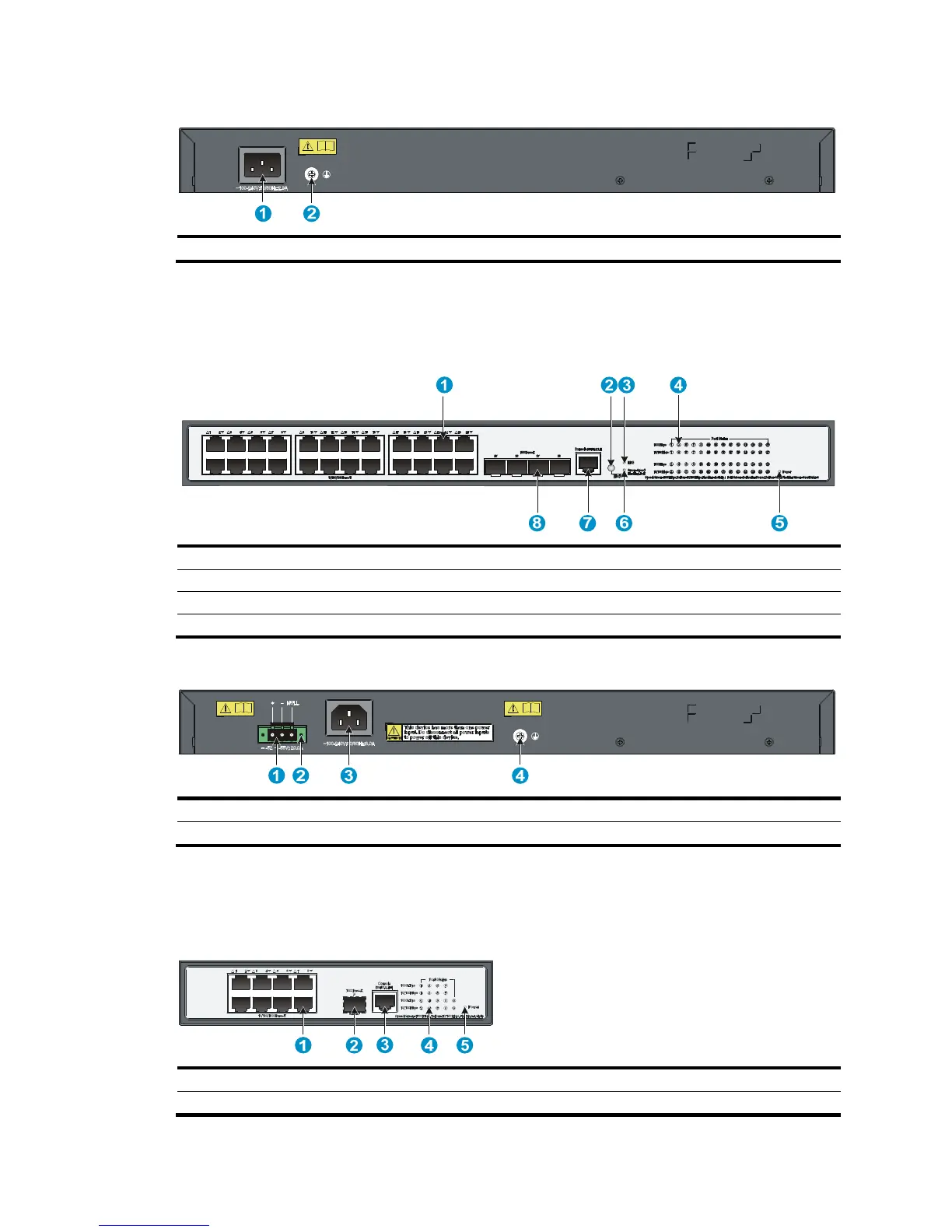

Figure 8 Rear panel
(1)
A
C-input power receptacle (2) Groundin
g
screw
V1910-24G-PoE (365W) panel views
Figure 9 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) Port LED mode switching button
(3) RPS status LED
(RPS) (4) Port LED
(5) Power LED (Power) (6) Port mode LED
(7) Console port (8) 1000Base-X SFP port
Figure 10 Rear panel
(1) DC receptacle
(2) Screw hole of the plu
g
(3) AC-input power receptacle (4) Grounding screw
1910-8G panel views
Figure 11 Front panel
(1) 10/100/1000Base-T auto-sensin
g
Ethernet port
(2) 1000Base-X SFP port
(3) Console port (4) Port LED
