2 Illustrated parts catalog

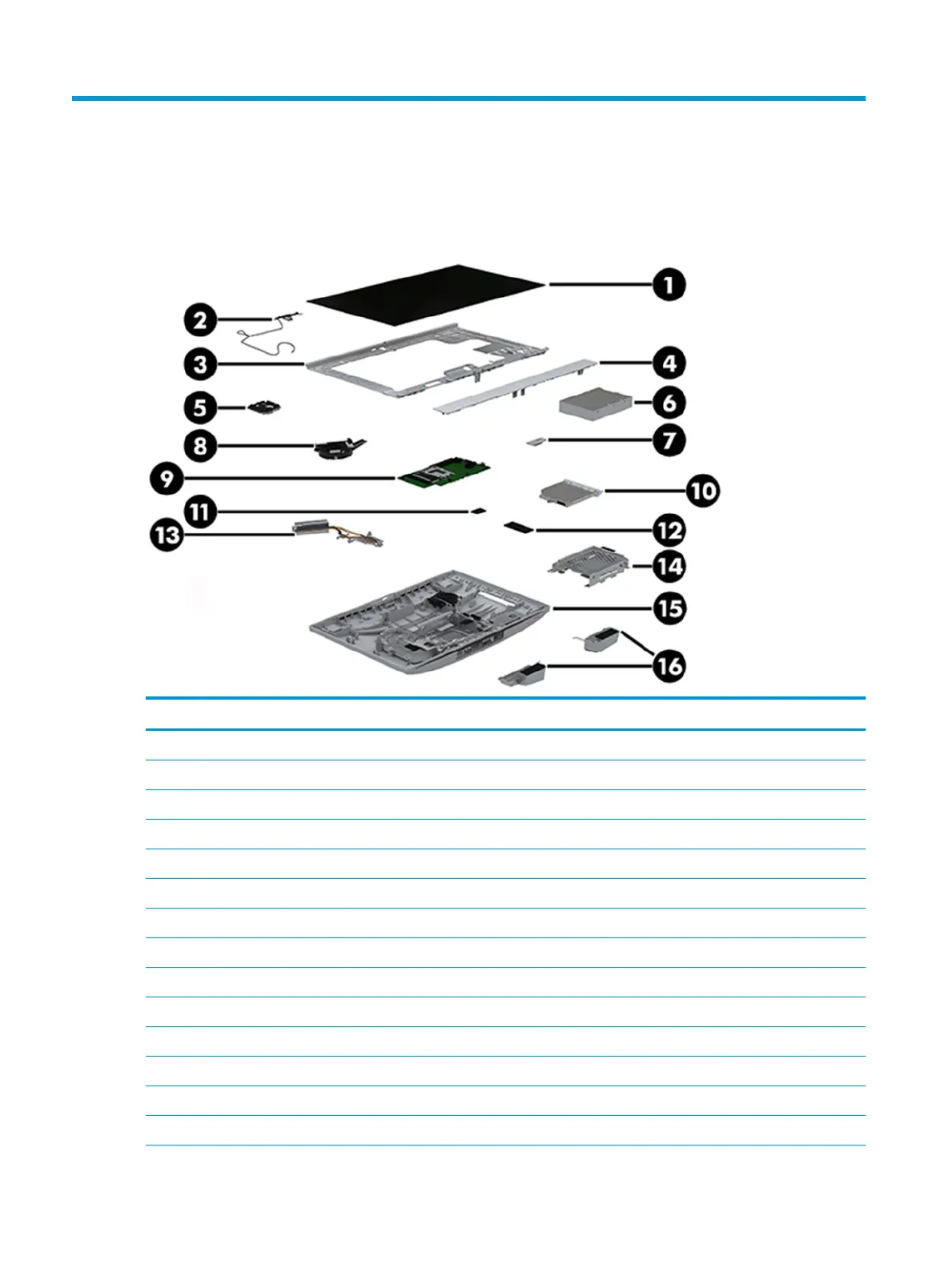

Computer major components
Item Description
(1) Display panel
(2) Card reader/power button board
(3) Display bezel
(4) Speaker cover
(5) Graphics card
(6) Hard drive (3.5 in)
2-TB, 7200-rpm
1-TB, 7200-rpm
500-GB, 7200-rpm
(7) Camera module (includes bracket)
Camera shutter (not illustrated)
(8) Fan
(9) System board (includes integrated processor; includes replacement thermal material)
IntelĀ® Core i5-8250U
4 Chapter 2 Illustrated parts catalog
