Display
1. Prepare the computer for disassembly (see Preparation for disassembly on page 14).
2. Remove the stand assembly (see Stand assembly on page 15).

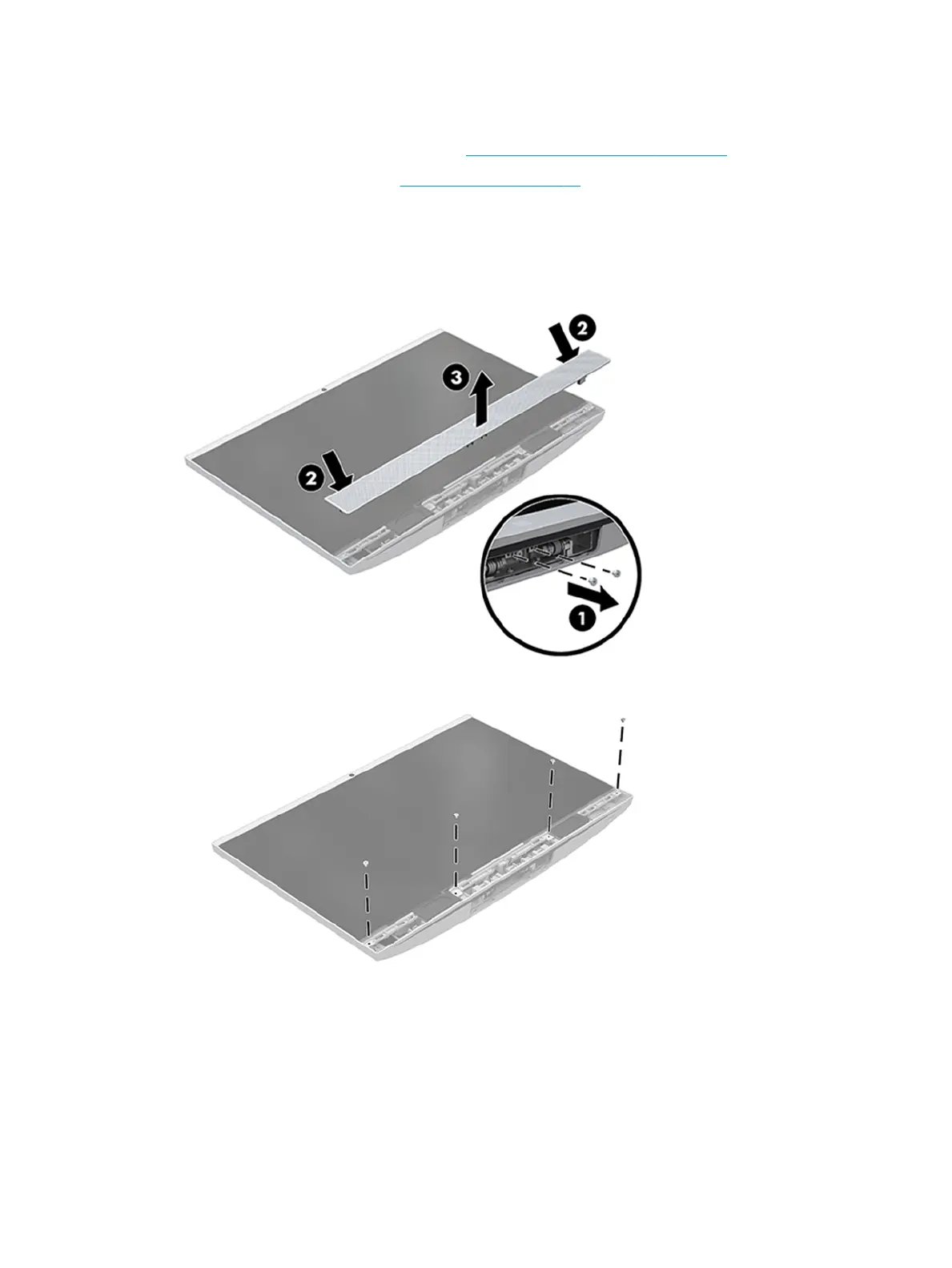

3. Position the computer with the display facing upward.
4. Remove the two Phillips screws (1) that secure the speaker cover to the computer.
5. Pry along the inside edge of the speaker cover to disengage (2), and then lift the cover o the computer
(3).
6. Remove the four Phillips screws under the speaker cover that secure the display to the computer.
7. Remove the Phillips screw under the stand that secures the display to the computer (1).
16 Chapter 4 Removal and replacement procedures
