Power button/card reader board

1. Prepare the computer for disassembly (see Preparation for disassembly on page 14).

2. Remove the stand assembly (see Stand assembly on page 15).

3. Remove the display (see Display on page 16).

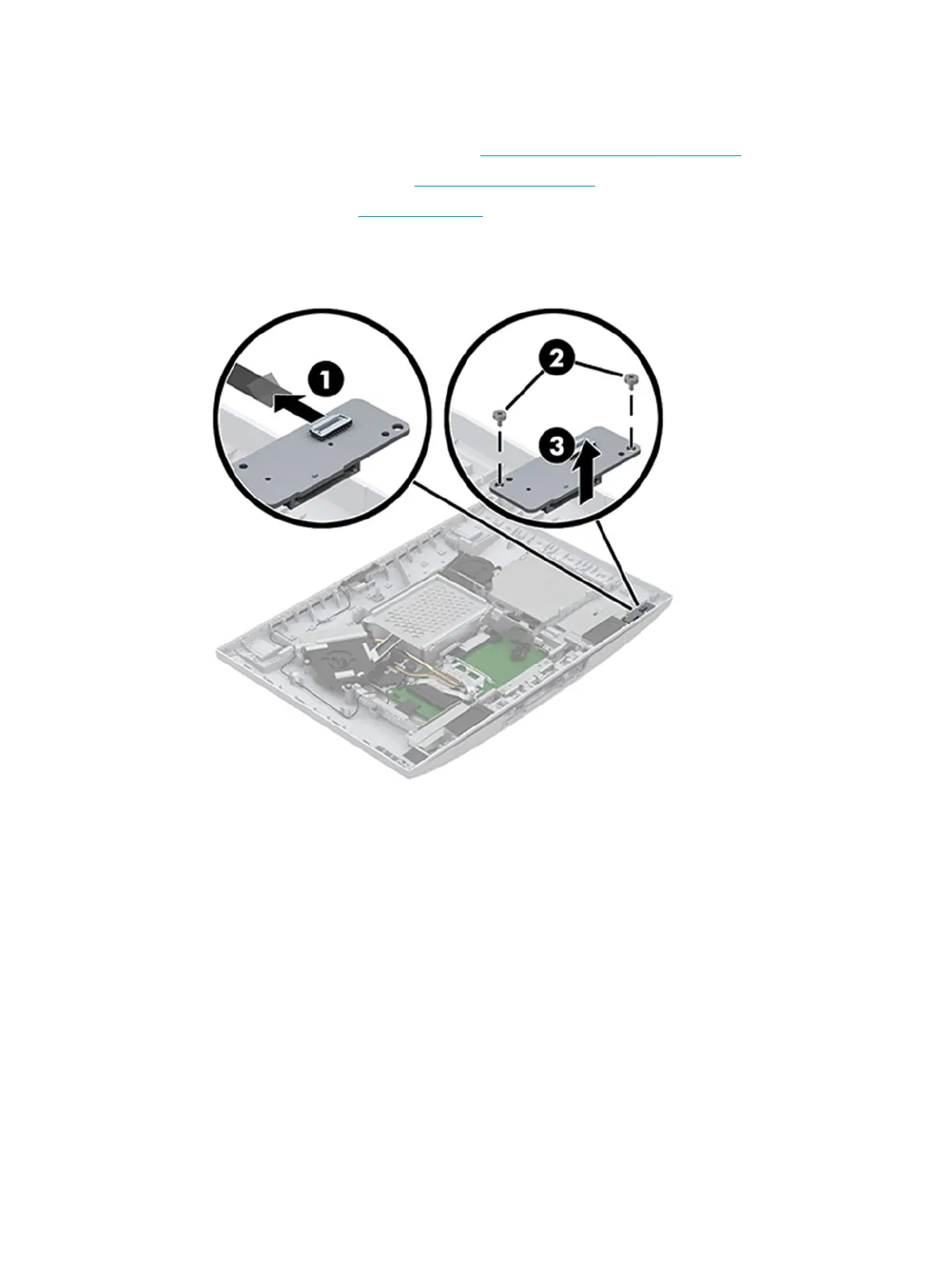

4. Disconnect the cable from the ZIF connector on the power button/card reader board (1).

5. Remove the two Phillips screws (2), and then lift the board out of the computer (3).

Reverse this procedure to install the power button/card reader board.

Power button/card reader board 25
