Display cables
1. Prepare the computer for disassembly (see Preparation for disassembly on page 14).
2. Remove the stand assembly (see Stand assembly on page 15).
3. Remove the display (see Display on page 16).

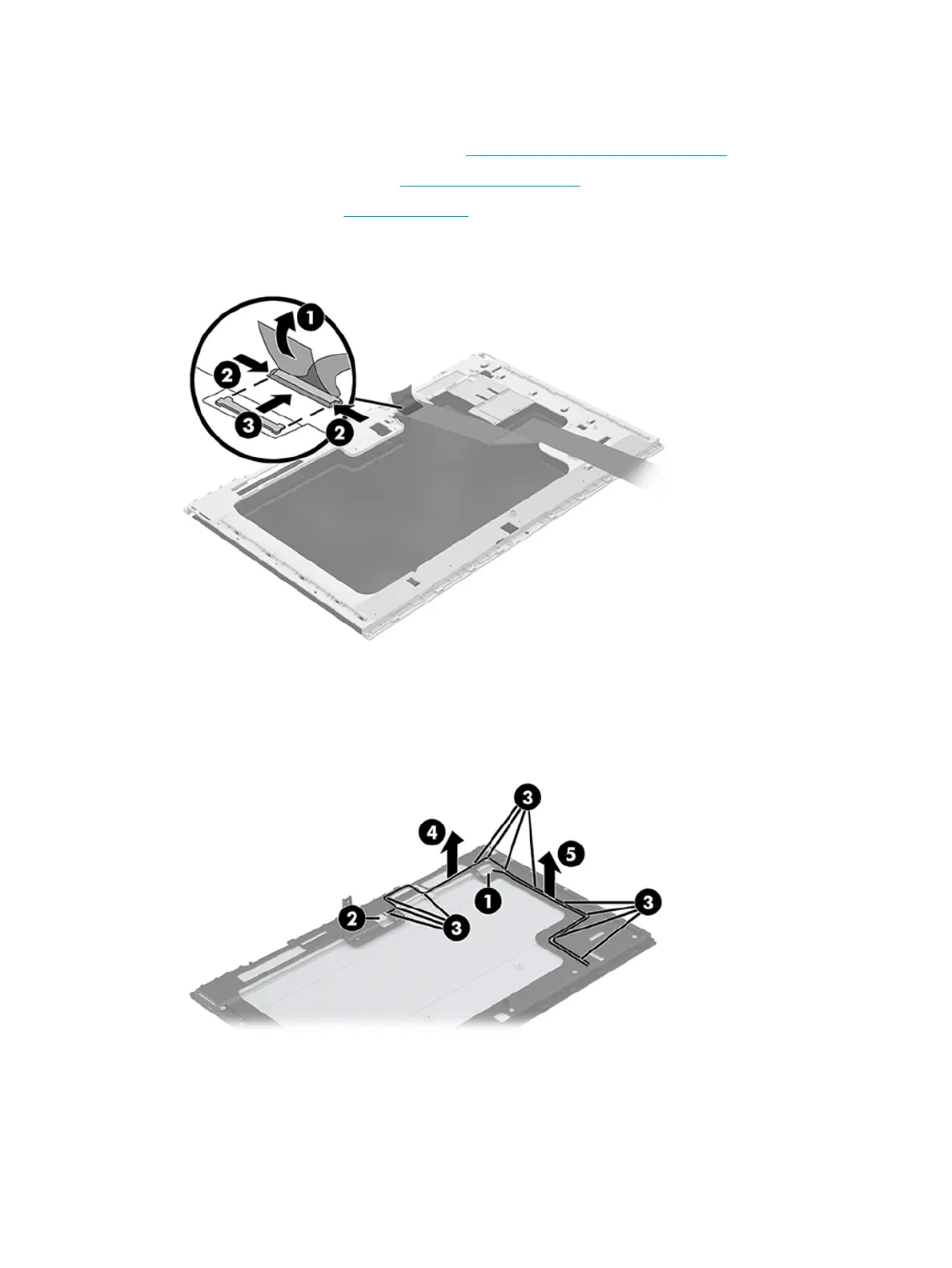

4. Remove the main display cable by lifting the tape from on top of the connector (1).
5. Squeeze the latches on each side of the connector (2), and then pull the cable out of the connector (3).
6. Disconnect the backlight cable from the display panel (1).
7. Disconnect the touch cable from the display panel (2).
8. Remove from the cables from the clips in the bezel (3).
9. Remove the backlight cable (4) and the touch cable (5) from the bezel.
Reverse this procedure to install the display cables.
