HP 200 G3 User Manual

Optical drive
1. Prepare the computer for disassembly (see Preparation for disassembly on page 14).
2. Remove the stand assembly (see Stand assembly on page 15).
3. Remove the display (see Display on page 16).

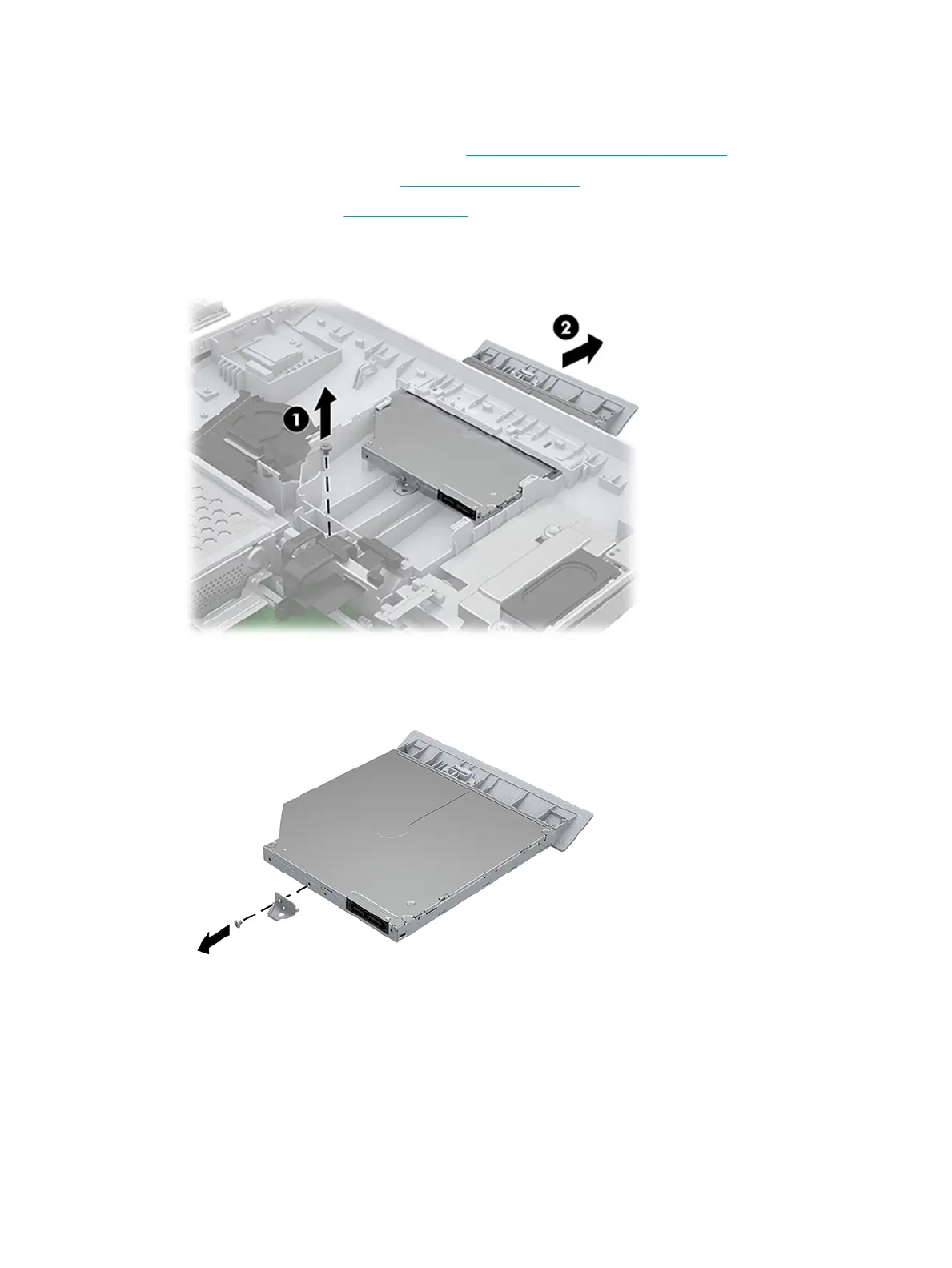

4. Remove the Phillips screw that secures the drive to the computer (1).
5. Slide the drive out of the computer (2).
6. If replacing the optical drive, remove the bracket from the rear of the old drive and install on the new
drive. Remove the Phillips screw that secures the bracket to the rear of the drive, and then remove the
bracket.
18 Chapter 4 Removal and replacement procedures

HP 200 G3 Specifications

General

Memory Type	DDR4
Processor	Intel Core i3/i5/i7
Storage	500 GB HDD; 128 GB SSD
Operating System	Windows 10 Pro
Ports	USB 2.0, HDMI, VGA, Ethernet, Audio
