Camera
1. Prepare the computer for disassembly (see Preparation for disassembly on page 14).
2. Remove the stand assembly (see Stand assembly on page 15).
3. Remove the display (see Display on page 16).

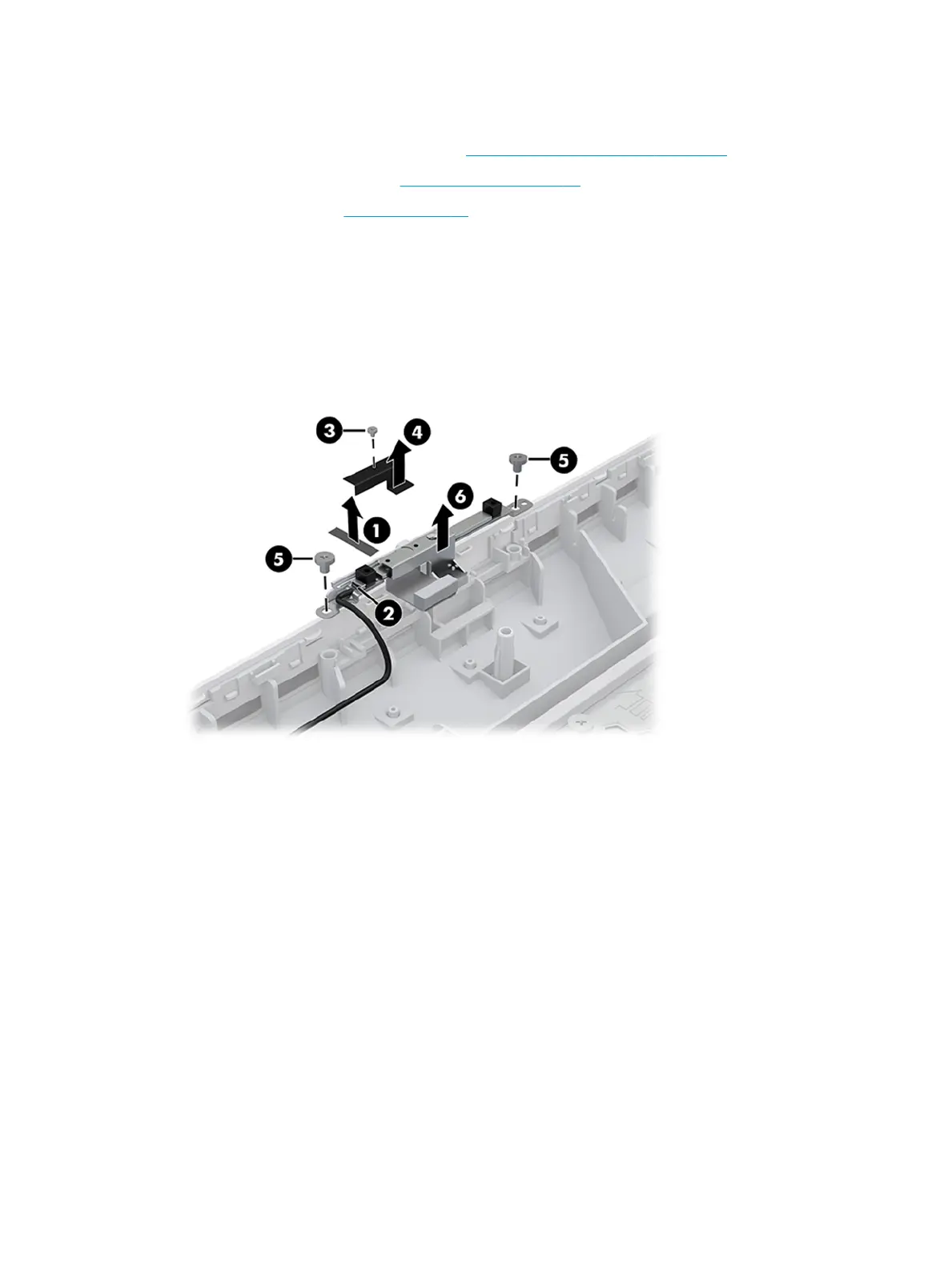

4. Lift the tape from on top of the connector on the camera (1).
5. Disconnect cable from camera (2).
6. Remove the small Phillips screw that secures the shutter (3).
7. Lift the shutter o the camera (4).
8. Remove the two Phillips screws that secure the camera (5).
9. Lift the camera out of the computer (6).
Reverse this procedure to install the camera.
