Antennas
1. Prepare the computer for disassembly (see Preparation for disassembly on page 14).
2. Remove the stand assembly (see Stand assembly on page 15).
3. Remove the display (see Display on page 16).

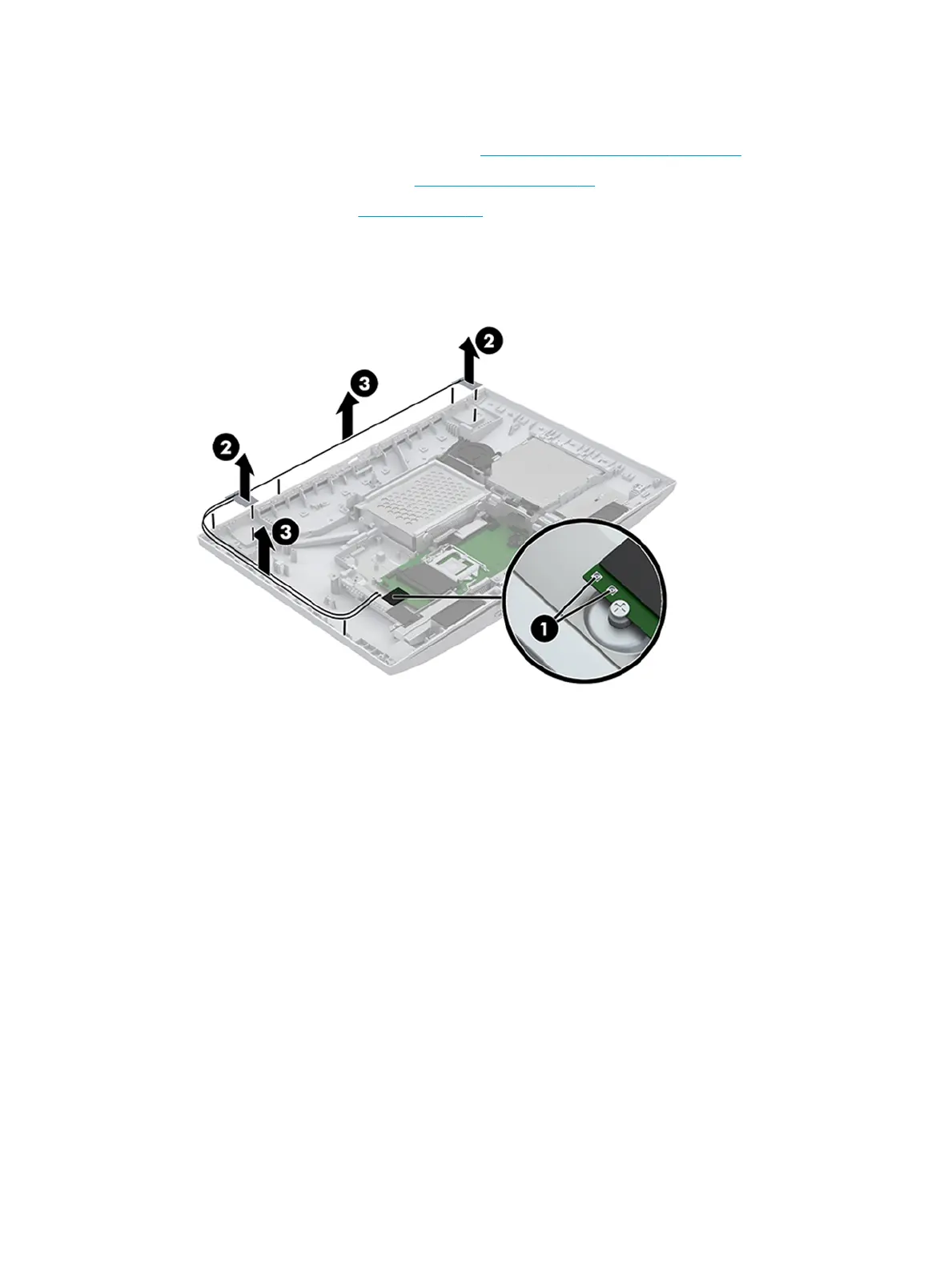

4. Disconnect the antenna cables from the WLAN module (1).
5. Peel each antenna o the computer (2).
6. Remove the cables from the clips and routing paths inside of the computer (3).
Reverse this procedure to install the antennas.
Antennas 33
