Hard drive
1. Prepare the computer for disassembly (see Preparation for disassembly on page 14).
2. Remove the stand assembly (see Stand assembly on page 15).
3. Remove the display (see Display on page 16).

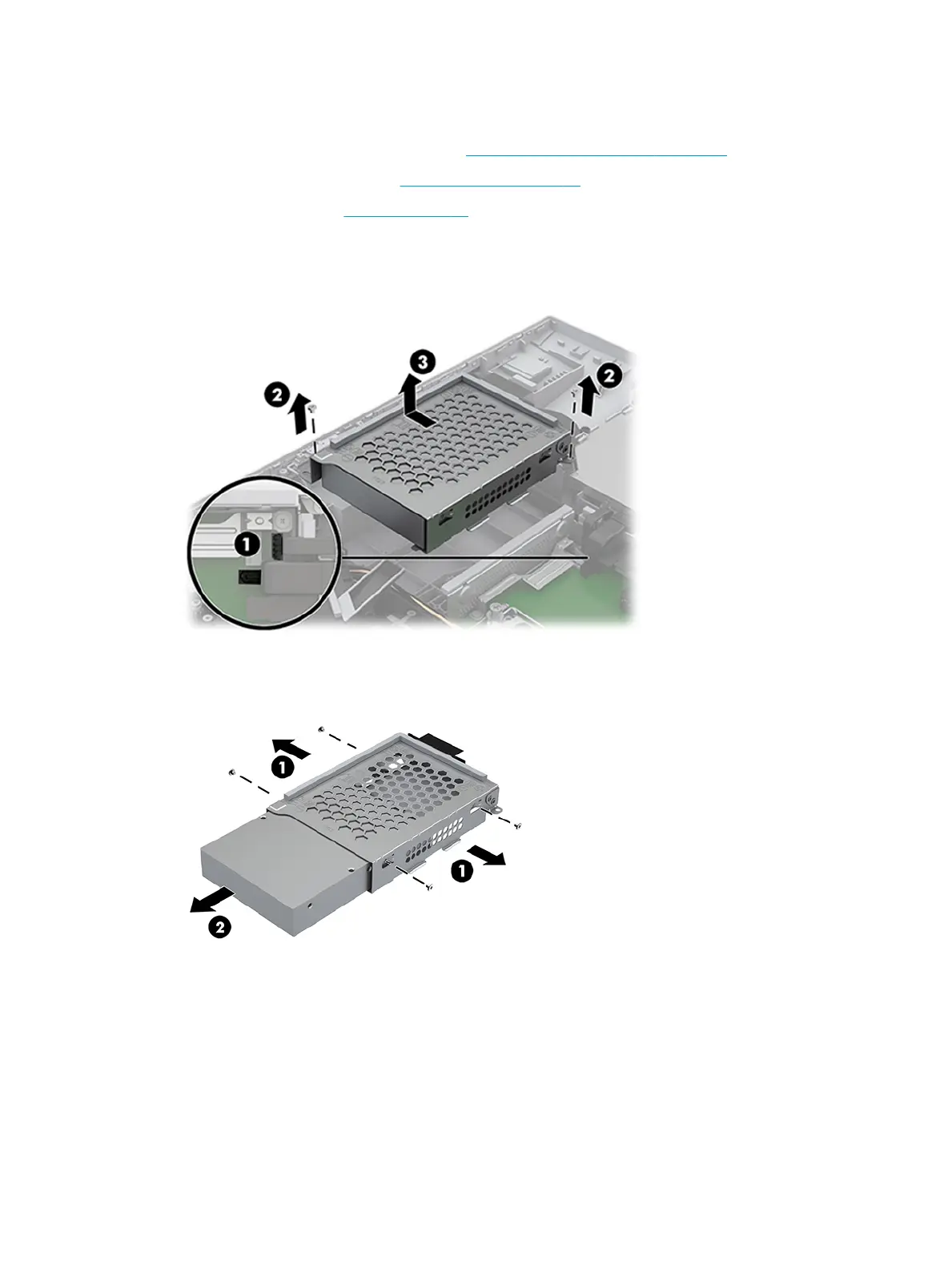

4. Disconnect the two hard drive cables from the system board (1).
5. Remove the two Phillips screws that secure the drive cage (2), and then remove the drive cage from the
computer (3).
6. Remove the four Phillips screws from the sides of the hard drive cage (1).
7. Slide the hard drive out of the drive cage (2).
Reverse this procedure to install the hard drive and hard drive cage.
20 Chapter 4 Removal and replacement procedures
