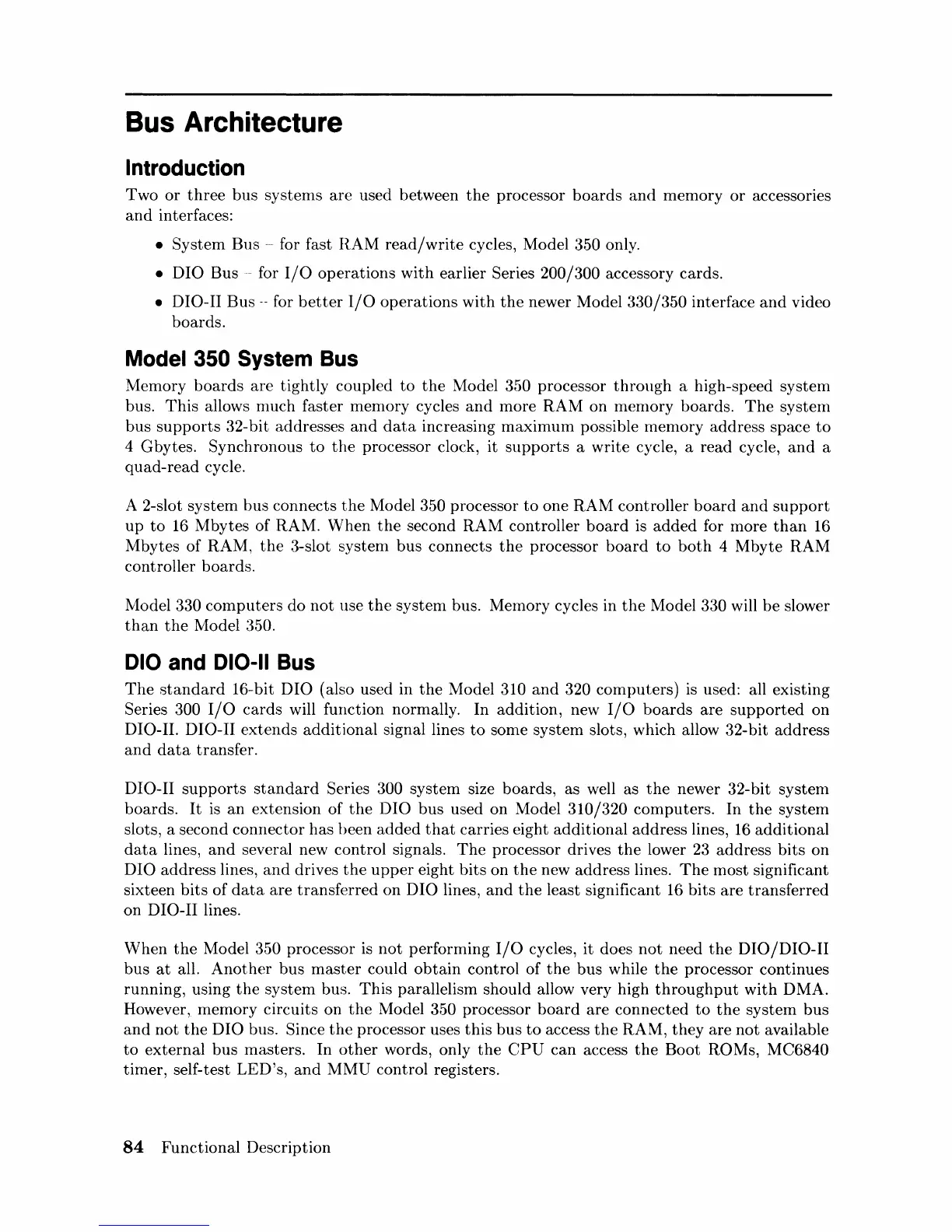

Bus Architecture
Introduction
Two
or
three
bus
systems are used between
the
processor
boards
and
memory
or
accessories
and
interfaces:
•
System
Bus - for fast
RAM
read/write
cycles, Model 350 only.
• DIO Bus for
I/O
operations
with
earlier Series 200/300 accessory cards.
• DIO-II Bus
--
for
better
I/O
operations
with
the
newer Model
~{30/350
interface
and
video
boards.
Model 350 System Bus
Memory
boards
are
tightly coupled
to
the
Model 350 processor
through
a high-speed system
bus.
This
allows much faster memory cycles
and
more
RAM
on memory boards.
The
system
bus
supports
32-bit addresses
and
data
increasing
maximum
possible memory address space
to
4 Gbytes. Synchronous
to
the
processor clock, it
supports
a write cycle, a read cycle,
and
a
quad-read cycle.
A 2-s10t system bus connects
the
Model 350 processor
to
one RAM controller
board
and
support
up
to
16
Mbytes
of
RAM.
When
the
second RAM controller
board
is
added
for more
than
16
Mbytes of RAM,
the
3-s10t system
bus
connects
the
processor
board
to
both
4
Mbyte
RAM
controller boards.
Model 330
computers
do
not
use
the
system bus. Memory cycles in
the
Model 330 will
be
slower
than
the
Model 350.
010 and
010-11
Bus
The
standard
16-bit DIO (also used in
the
Model 310
and
320 computers)
is
used: all existing
Series 300
I/O
cards
will function normally. In addition, new
I/O
boards
are
supported
on
DIO-II. DIO-II
extends
additional
signal lines
to
some system slots, which allow 32-bit address
and
data
transfer.
DIO-II
supports
standard
Series 300 system size boards, as well as
the
newer 32-bit system
boards.
It
is
an
extension of
the
DIO
bus
used
on
Model
310/320
computers. In
the
system
slots, a second
connector
has been
added
that
carries eight additional address lines,
16
additional
data
lines,
and
several new control signals.
The
processor drives
the
lower
23
address
bits
on
DIO address lines,
and
drives
the
upper
eight bits on
the
new address lines.
The
most
significant
sixteen
bits
of
data
are
transferred
on DIO lines,
and
the
least significant
16
bits
are
transferred
on DIO-II lines.
When
the
Model 350 processor
is
not
performing
I/O
cycles, it does
not
need
the
DIO
/DIO-II
bus
at
all.
Another
bus
master
could
obtain
control of
the
bus
while
the
processor continues
running, using
the
system
bus.
This
parallelism should allow very high
throughput
with
DMA.
However, memory circuits on
the
Model 350 processor
board
are
connected
to
the
system
bus
and
not
the
DIO bus. Since
the
processor uses
this
bus
to
access
the
RAM,
they
are
not
available
to
external
bus
masters. In
other
words, only
the
CPU
can
access
the
Boot
ROMs, MC6840
timer, self-test LED's,
and
MMU control registers.
84
Functional Description
