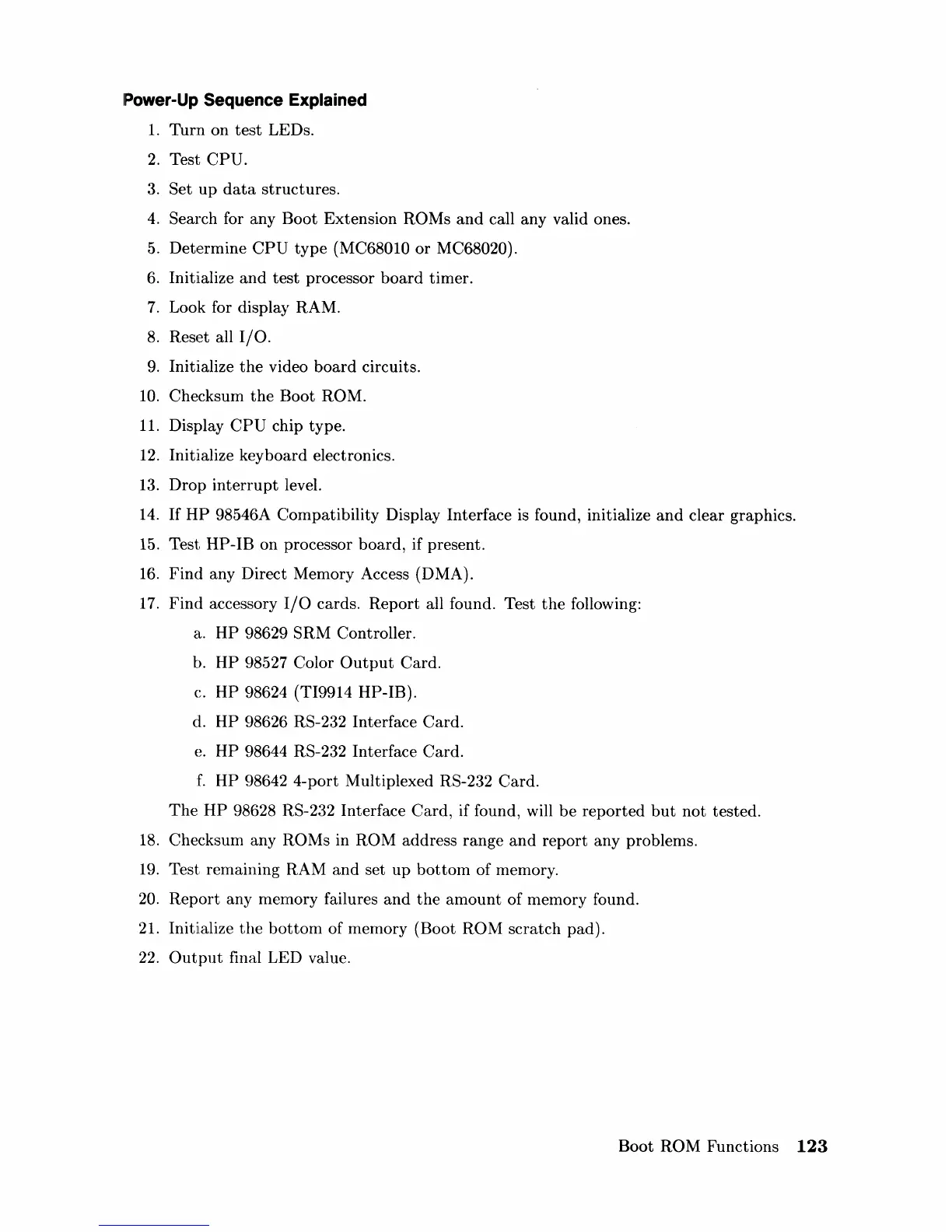

IF>>ower-Up
Sequence Explained
1.
Turn
on
test
LEDs.
2.
Test
CPU.
3.
Set
up
data
structures.
4.
Search for any
Boot
Extension ROMs
and
call any valid ones.
5.
Determine
CPU
type
(MC68010
or
MC68020).
6.
Initialize
and
test
processor
board
timer.
7.
Look for display RAM.
8. Reset all
I/O.
9.
Initialize
the
video
board
circuits.
10. Checksum
the
Boot ROM.
11. Display
CPU
chip type.
12. Initialize keyboard electronics.
13. Drop
interrupt
level.
14.
If
HP
98546A Compatibility Display Interface is found, initialize
and
clear graphics.
15. Test
HP-IB
on processor
board,
if present.
16.
Find
any Direct Memory Access (DMA).
17.
Find
accessory
I/O
cards.
Report
all found. Test
the
following:
a.
HP
98629 SRM Controller.
b.
HP
98527 Color
Output
Card.
c.
HP
98624 (TI9914 HP-IB).
d.
HP
98626 RS-232 Interface
Card.
e.
HP
98644 RS-232 Interface
Card.
f.
HP
98642
4-port
Multiplexed RS-232 Card.
The
HP
98628 RS-232 Interface
Card,
if found, will
be
reported
but
not
tested.
18.
Checksum any ROMs in ROM address range
and
report
any problems.
19. Test remaining RAM
and
set
up
bottorn
of
memory.
20.
Report
any mernory failures
and
the
amount
of
memory found.
21. Initialize
the
bottom
of memory (Boot ROM scratch pad).
22.
Output
final LED value.
Boot
ROM Functions
123
