117

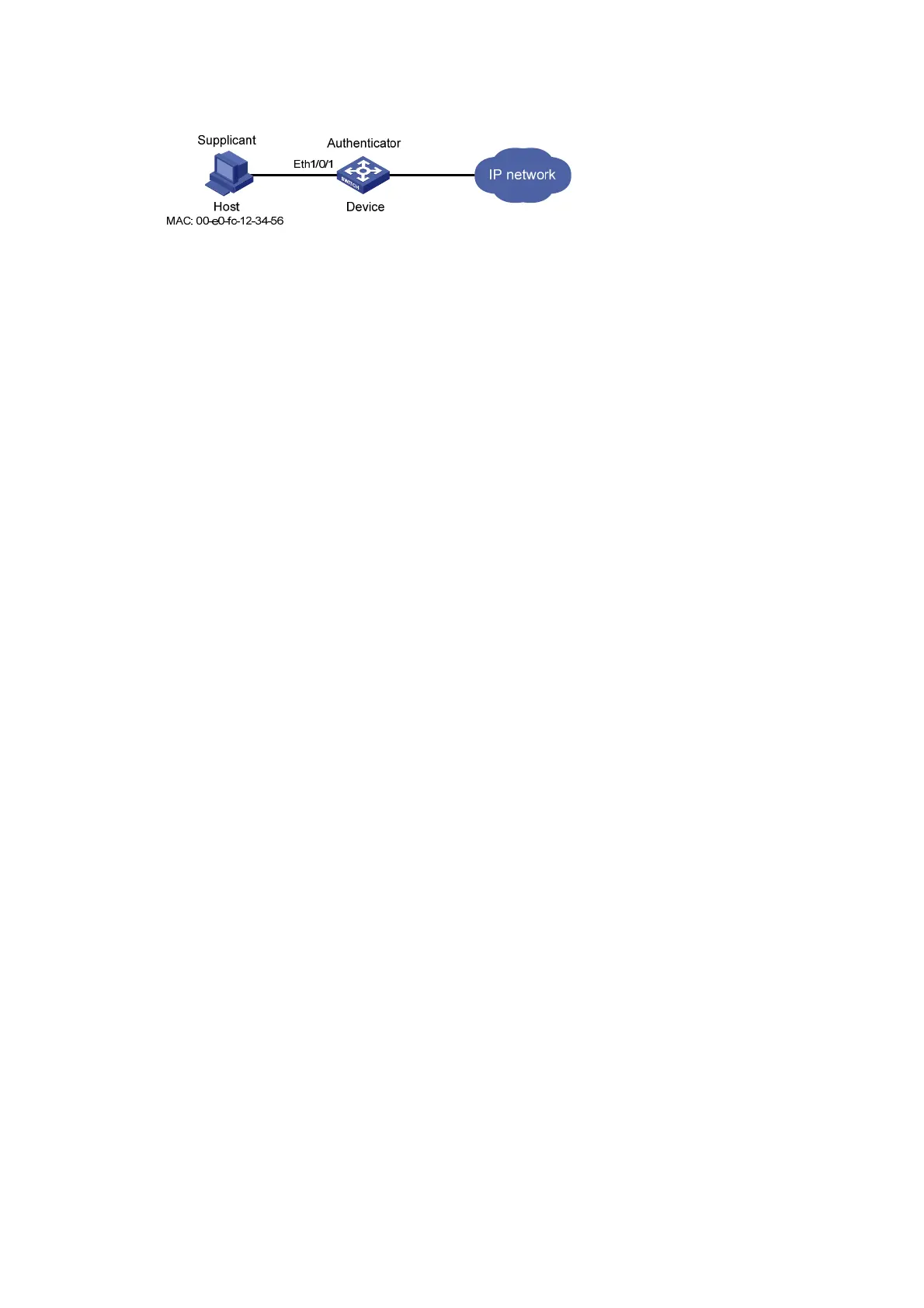

Figure 48 Network diagram
Configuration procedure
# Add a local user account, set both the username and password to 00-e0-fc-12-34-56, the MAC address
of the user host, and enable LAN access service for the account.
<Device> system-view
[Device] local-user 00-e0-fc-12-34-56
[Device-luser-00-e0-fc-12-34-56] password simple 00-e0-fc-12-34-56
[Device-luser-00-e0-fc-12-34-56] service-type lan-access
[Device-luser-00-e0-fc-12-34-56] quit
# Configure ISP domain aabbcc.net to perform local authentication for LAN access users.
[Device] domain aabbcc.net
[Device-isp-aabbcc.net] authentication lan-access local
[Device-isp-aabbcc.net] quit
# Enable MAC authentication globally.
[Device] mac-authentication
# Enable MAC authentication on port Ethernet 1/0/1.
[Device] mac-authentication interface ethernet 1/0/1
# Specify the ISP domain for MAC authentication.
[Device] mac-authentication domain aabbcc.net
# Set the MAC authentication timers.
[Device] mac-authentication timer offline-detect 180
[Device] mac-authentication timer quiet 180
# Configure MAC authentication to use MAC-based accounts. The MAC address usernames and
passwords are hyphenated and in lowercase.
[Device] mac-authentication user-name-format mac-address with-hyphen lowercase
Verifying the configuration
# Display MAC authentication settings and statistics.
<Device> display mac-authentication
MAC address authentication is enabled.
User name format is MAC address in lowercase, like xx-xx-xx-xx-xx-xx
Fixed username:mac
Fixed password:not configured
Offline detect period is 180s
Quiet period is 180s.
Server response timeout value is 100s
The max allowed user number is 2048 per slot
Current user number amounts to 1
Current domain is aabbcc.net
