Manual-mode MFF configuration example in a tree network
Network requirements
As shown in Figure 142, all the devices are in VLAN 100. Host A, Host B, and Host C are configured with
IP addresses manually. They are isolated at Layer 2, and can communicate with each other through
Gateway. To ensure communication between hosts and the server, the IP address of the server is
specified on the MFF devices manually.

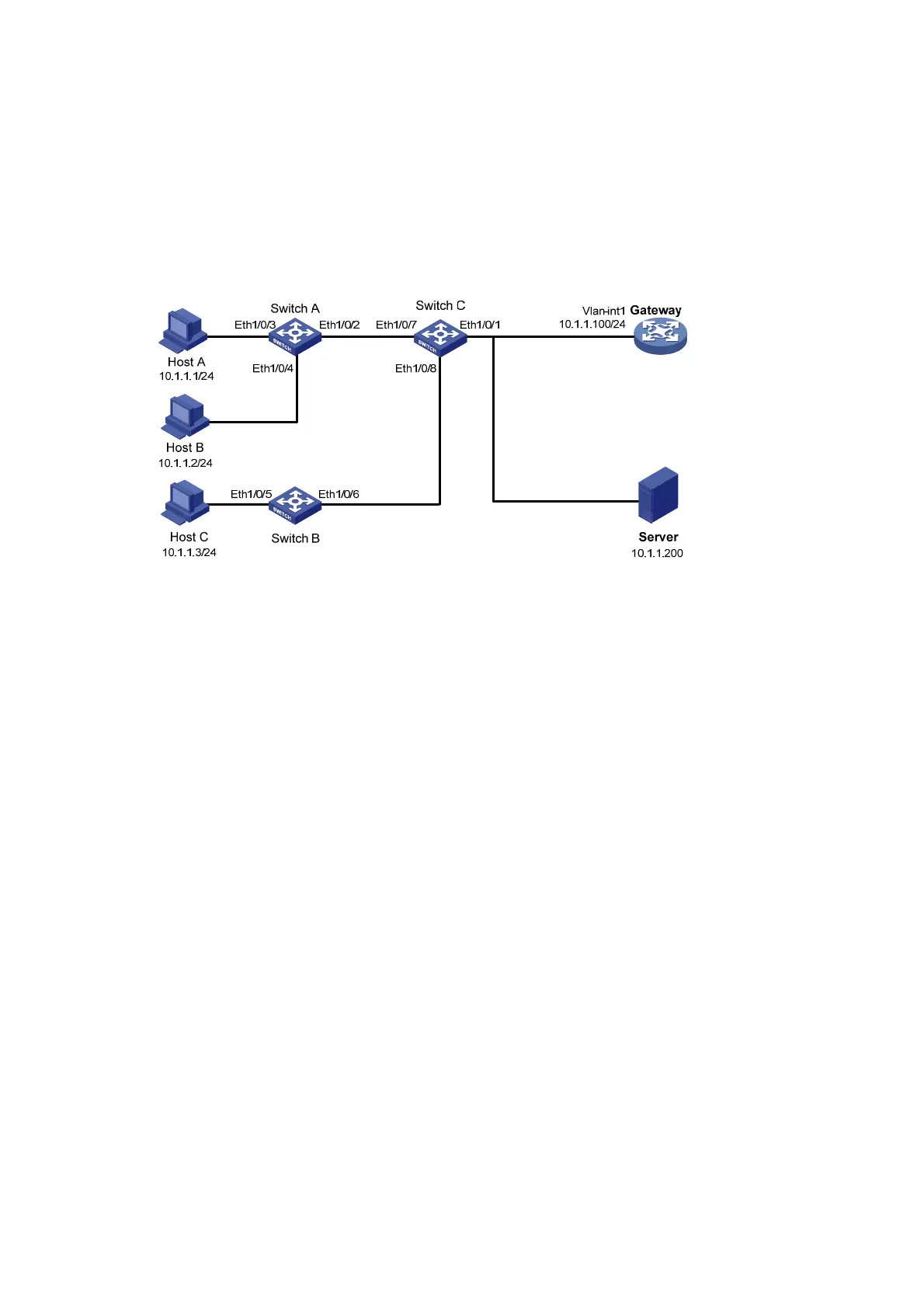

Figure 142 Network diagram
Configuration procedure
1. Configure IP addresses of the hosts as shown in Figure 142.
2. Configure Gateway
# Configure the IP address of VLAN-interface 1.
<Gateway> system-view
[Gateway] interface Vlan-interface 1
[Gateway-Vlan-interface1] ip address 10.1.1.100 24
3. Configure Switch A
# Configure manual-mode MFF.
[SwitchA] vlan 100
[SwitchA-vlan-100] mac-forced-forwarding default-gateway 10.1.1.100
# Specify the IP address of the server.
[SwitchA-vlan-100] mac-forced-forwarding server 10.1.1.200
# Enable ARP snooping.
[SwitchA-vlan-100] arp-snooping enable
[SwitchA-vlan-100] quit
# Configure Ethernet 1/0/2 as a network port.
[SwitchA] interface ethernet 1/0/2
[SwitchA-Ethernet1/0/2] mac-forced-forwarding network-port
4. Configure Switch B
# Configure manual-mode MFF.
[SwitchB] vlan 100
