HP 3600 v2 Series

To Next Page

To Previous Page

360

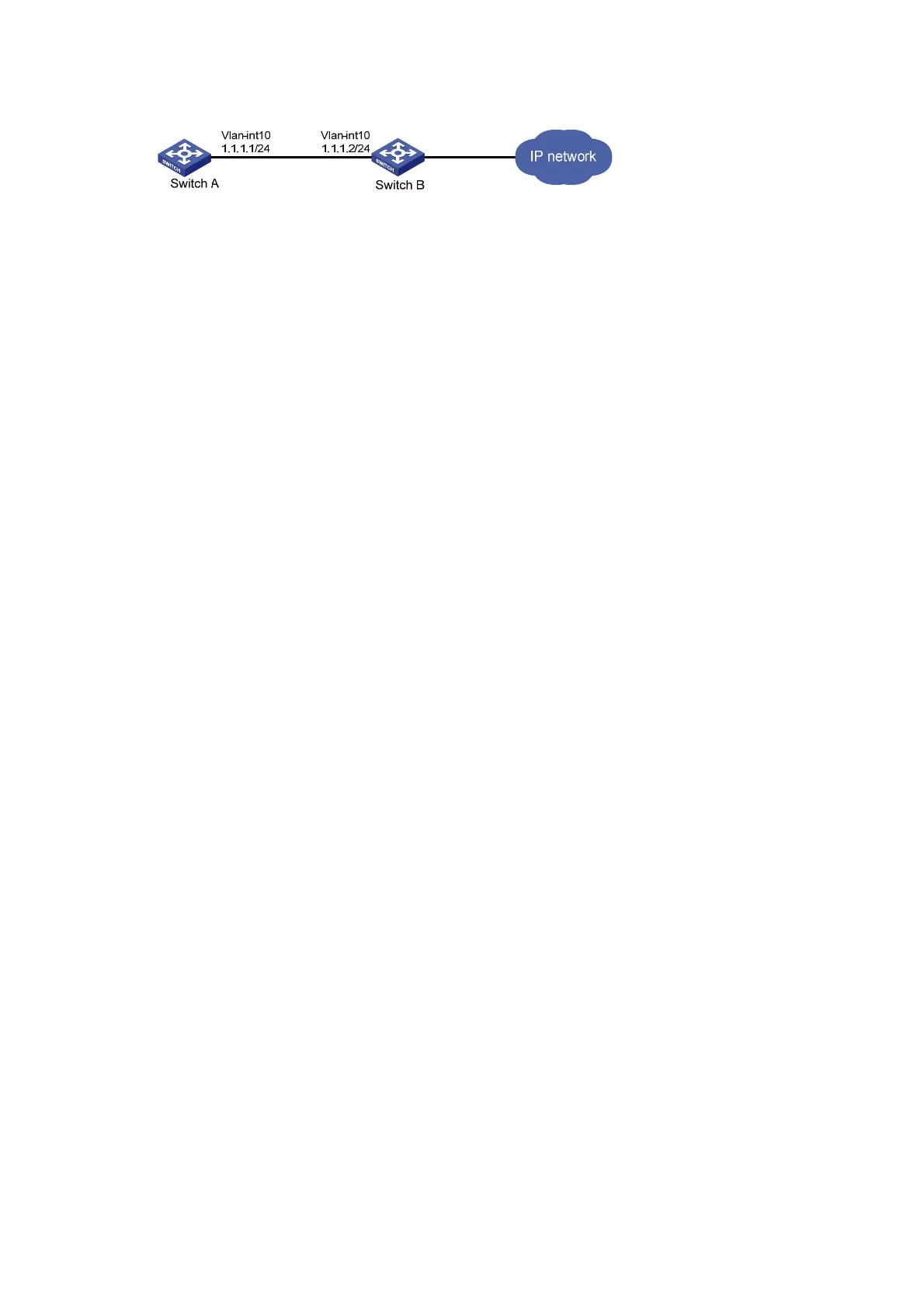

Figure 138 Network diagram

Configuration procedure

1. Configure Switch A

# Enable strict URPF check.

<SwitchA> system-view

[SwitchA] ip urpf strict

2. Configure Switch B

# Enable strict URPF check.

<SwitchB> system-view

[SwitchB] ip urpf strict
