Front bezel
1. Prepare the computer for disassembly (Preparation for disassembly on page 14)
2. Remove the access panel (Access panel on page 15)

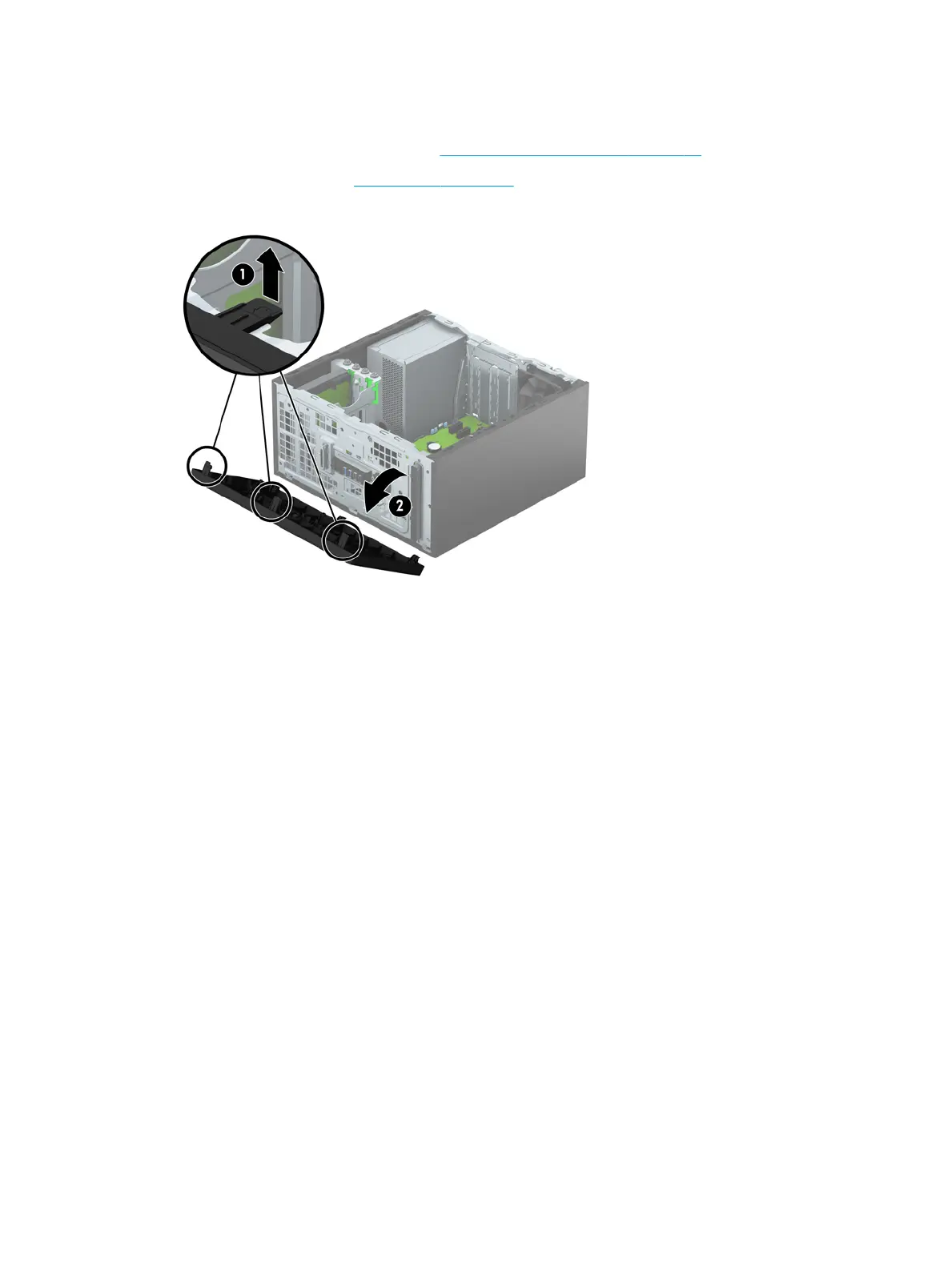

3. Lift up the three tabs on the side of the bezel (1), and then rotate the bezel o the chassis (2).
To replace the front bezel, reverse the disassembly procedures.
16 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis
