7
5120-48G-PoE+ EI (2 slots)/5120-48G-PoE+ EI
TAA (2 slots) panel views

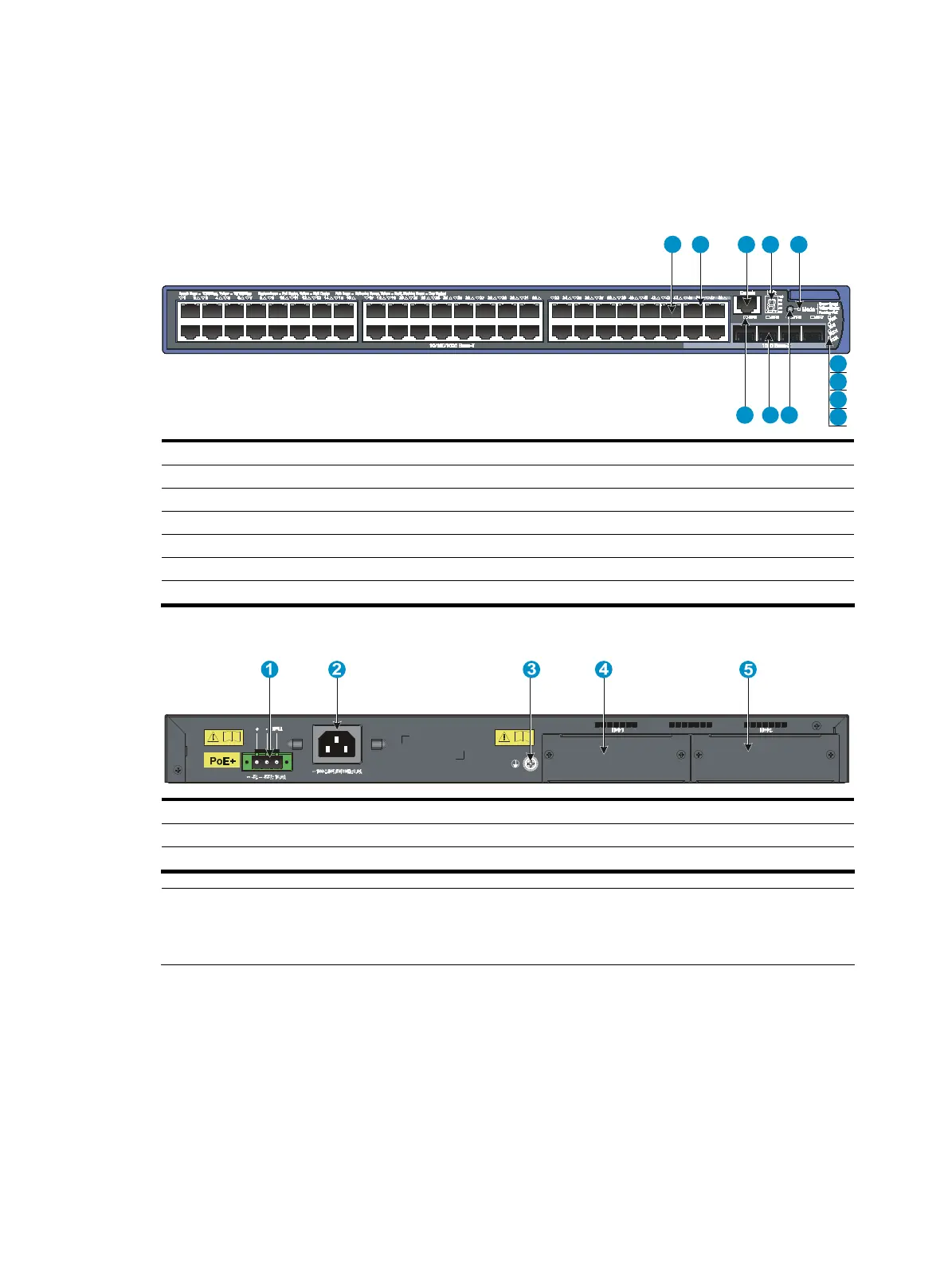

Figure 11 Front panel
1 2 3 4 5
6
7
8
9
101112
(1) 10/100/1000Base-T auto-sensing Ethernet port
(2) 10/100/1000Base-T Ethernet port LED
(3) Console port (4) Seven-segment LED (Unit)
(5) Port mode LED (Mode) (6) System status LED (PWR)
(7) RPS status LED (RPS) (8) Interface card 1 status LED (MOD1)
(9) Interface card 2 status LED (MOD2) (10) Port LED mode switching button
(11) 1000Base-X SFP port (12) 1000Base-X SFP port LED
Figure 12 Rear panel
(1) RPS receptacle (2) AC-input power receptacle
(3) Grounding screw (4) Interface card slot 1 (MOD1)
(5) Interface card slot 2 (MOD2)
NOTE:
The 5120-48G-PoE+ EI (2 slots) and 5120-48G-PoE+ EI TAA (2 slots) switches come with the expansion
interface card slots covered by filler panels.
