3
(3) Grounding screw (4) Interface card slot 1 (MOD1)
(5) Interface card slot 2 (MOD2)
NOTE:
The 5120-24G EI (2 slots) and 5120-24G EI TAA (2 slots) switches come with the expansion interface
card slots covered by filler panels.
5120-48G EI (2 slots)/5120-48G EI TAA (2 slots)
panel views

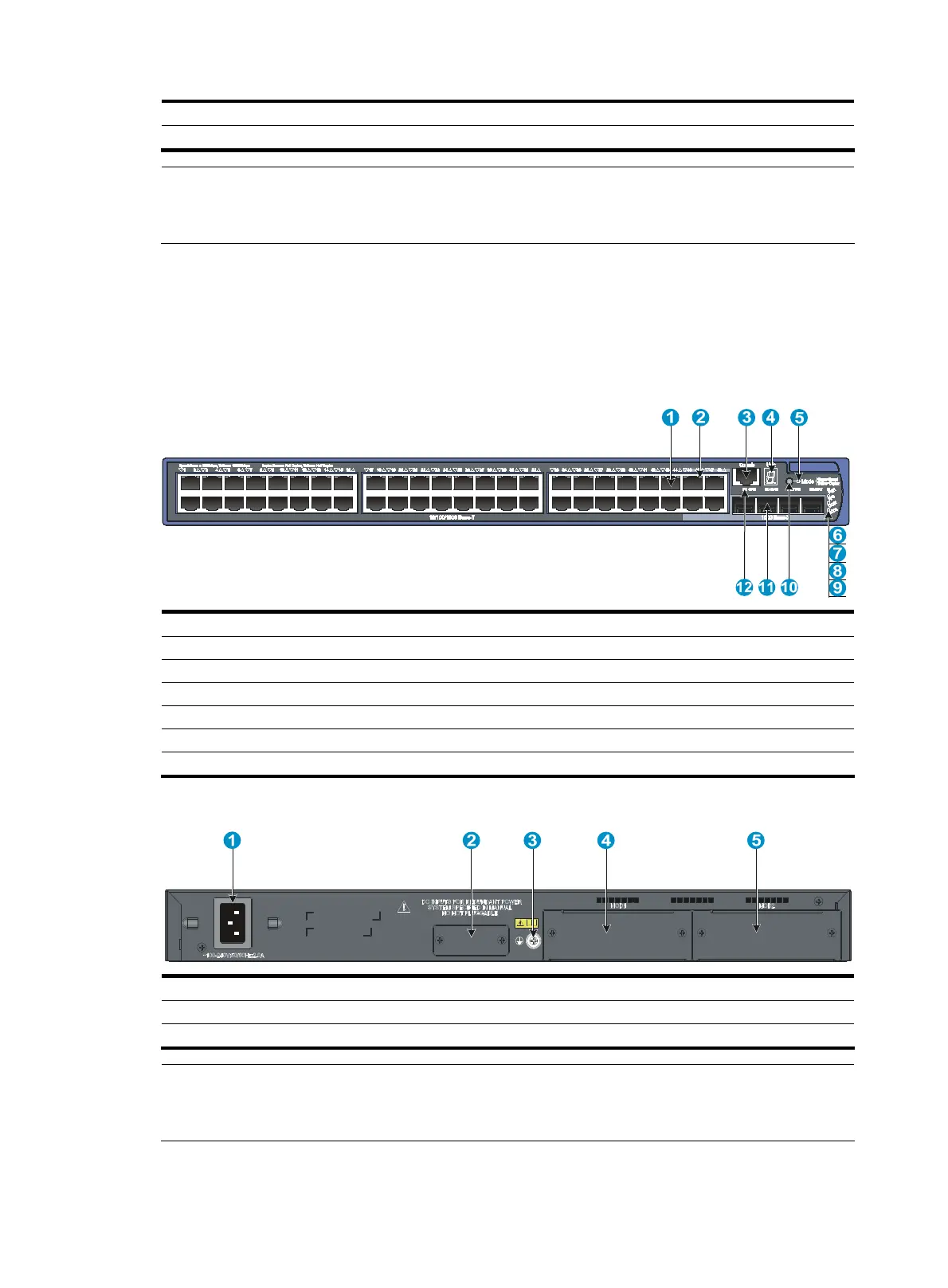

Figure 3 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port
(2) 10/100/1000Base-T Ethernet port LED
(3) Console port (4) Seven-segment LED (Unit)
(5) Port mode LED (Mode) (6) System status LED (PWR)
(7) RPS status LED (RPS) (8) Interface card 1 status LED (MOD1)
(9) Interface card 2 status LED (MOD2) (10) Port LED mode switching button
(11) 1000Base-X SFP port (12) 1000Base-X SFP port LED
Figure 4 Rear panel
(1) AC-input power receptacle (2) RPS receptacle (shipped with a protective cover)
(3) Grounding screw (4) Interface card slot 1 (MOD1)
(5) Interface card slot 2 (MOD2)
NOTE:
The 5120-48G EI (2 slots) and 5120-48G EI TAA (2 slots) switches come with the expansion interface
card slots covered by filler panels.
