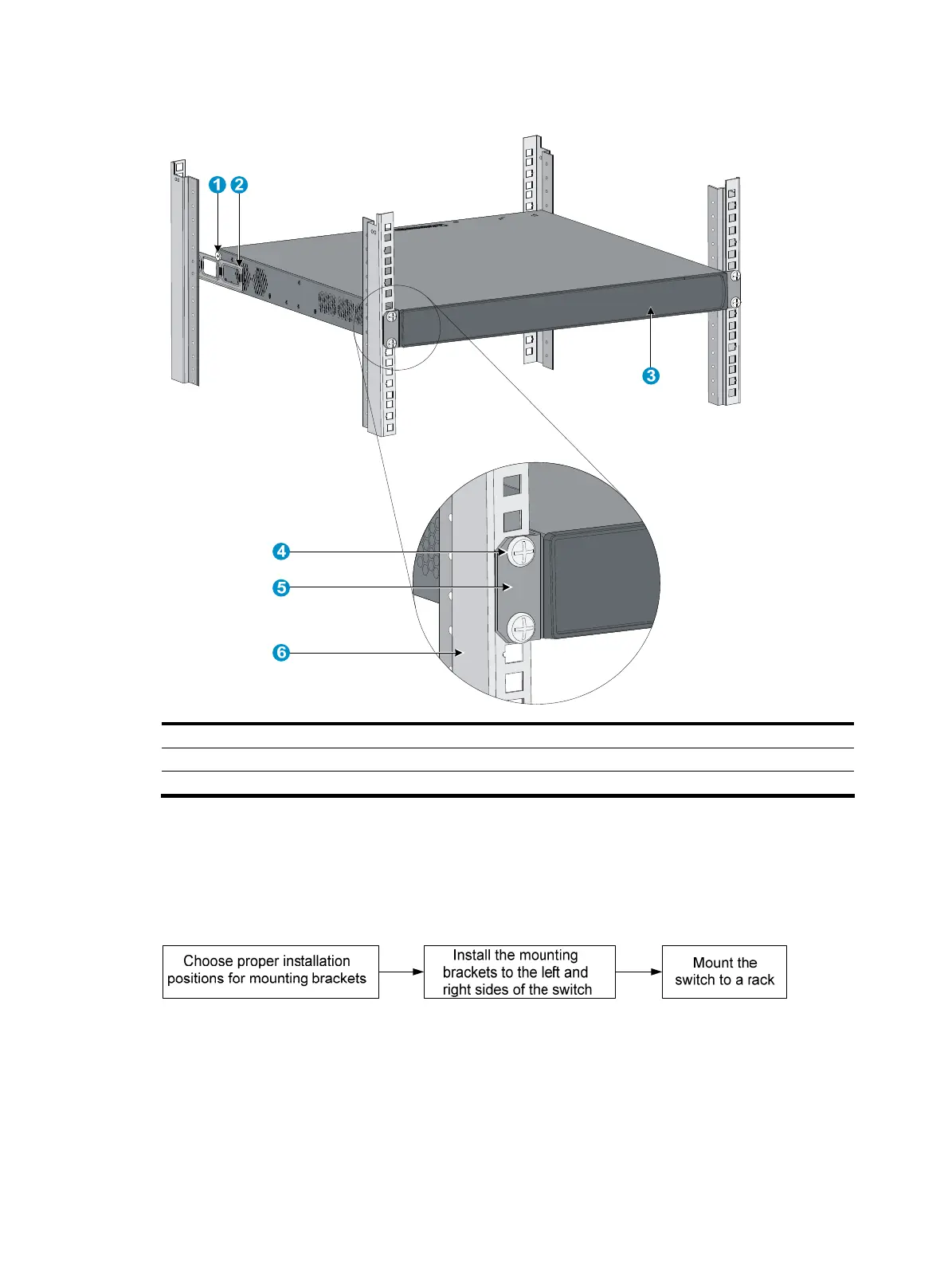

Figure 37 Attach the front brackets to the rack
(1) Load-bearing screw (2) Rear mounting bracket
(3) Front panel (4) A screw used to fix the front mounting bracket to the rack
(5) Front mounting bracket (6) Front square-holed post
Installing a 5120 SI switch in a 19-inch rack
Figure 38 shows the general procedure for installing a 5120 SI switch in a 19-inch rack.
Figure 38 Install a 5120 SI switch in a 19-inch rack
