IMPORTANT:
For regulatory identification purposes, the HP 5120-8G SI, HP 5120-8G-PPoE+ SI, and HP
5120-8G-PoE+ SI products are assigned Regulatory Model Numbers (RMN). The Regulatory Model
Numbers for these products are listed below. These re
ulatory numbers should not be confused with the
marketing names HP 5120, or product numbers JG308A, JG310A, and JG309A.
Table 3 Regulatory Model Numbers in the HP 5120 8G SI Switch Series
Product code RMN HP description
JG308A BJNGA-AD0006 HP 5120-8G SI Switch
JG310A BJNGA-AD0007 HP 5120-8G-PPoE+ SI Switch
JG309A BJNGA-AD0008 HP 5120-8G-PoE+ SI Switch

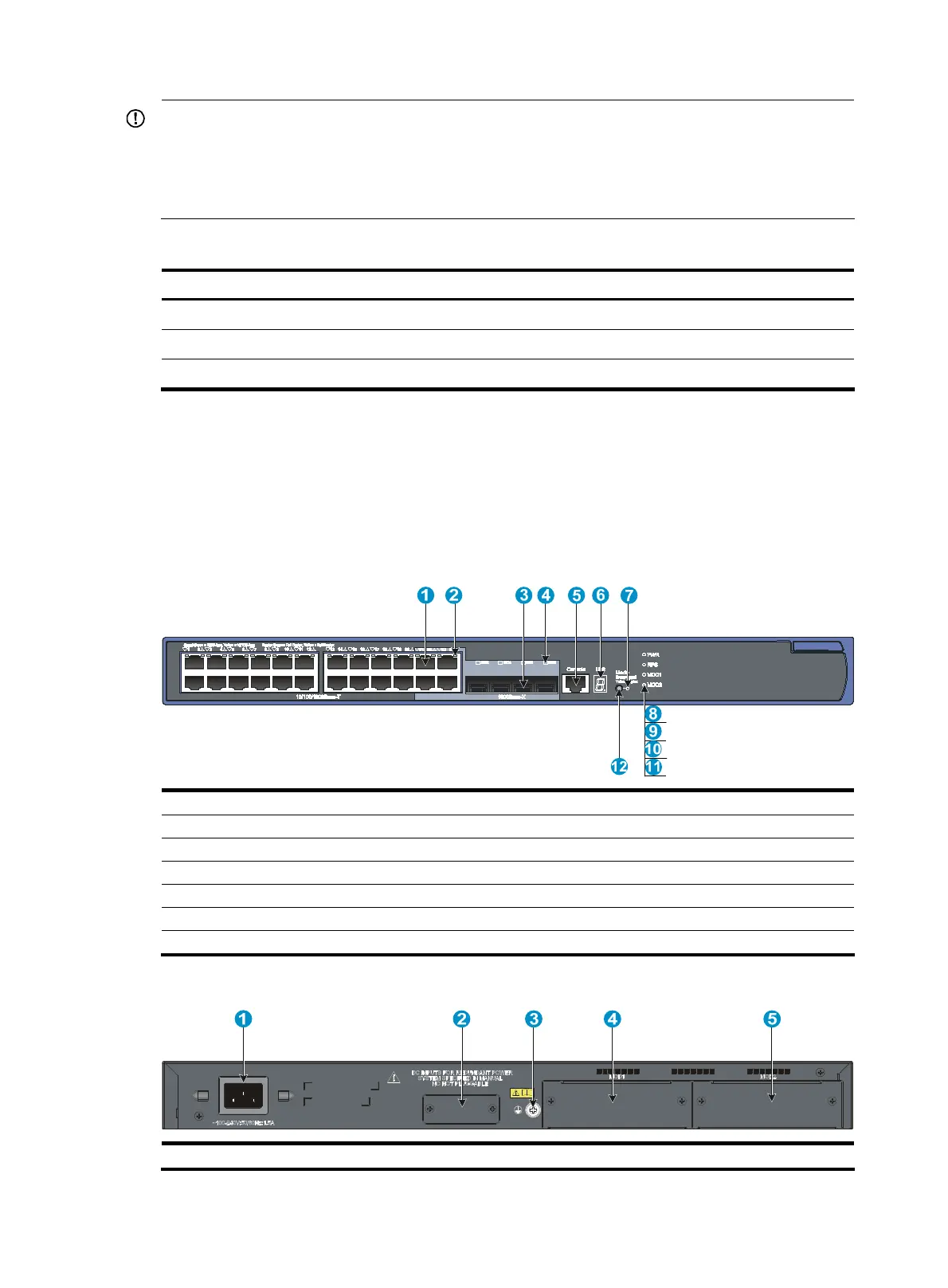

This chapter describes the chassis panel views of the 5120 EI and 5120 SI switches.
5120-24G EI (2 slots)/5120-24G EI TAA (2 slots)
panel views
Figure 1 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port
(2) 10/100/1000Base-T Ethernet port LED
(3) 1000Base-X SFP port (4) 1000Base-X SFP port LED
(5) Console port (6) Seven-segment LED (Unit)
(7) Port mode LED (Mode) (8) System status LED (PWR)
(9) RPS status LED (RPS) (10) Interface card 1 status LED (MOD1)
(11) Interface card 2 status LED (MOD2) (12) Port LED mode switching button
Figure 2 Rear panel
(1) AC-input power receptacle (2) RPS receptacle (shipped with a protective cover)
