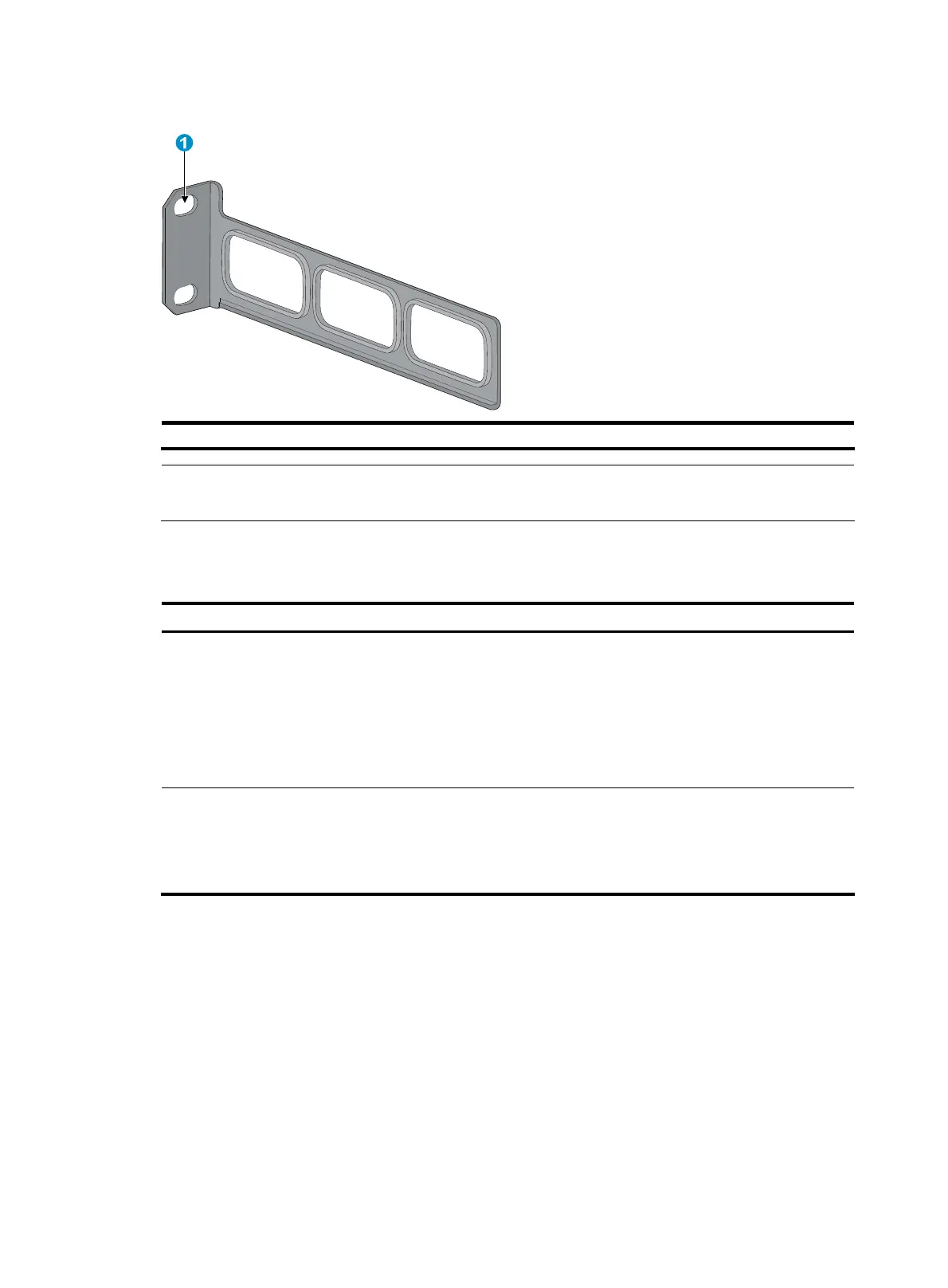

Figure 31 Rear mounting bracket
(1) Hole for attaching to a rack (by using an M6 screw)
NOTE:
The M6 screws for fixing the brackets to a rack are user supplied.
Table 7 shows the mounting bracket shipment for different switch models.
Table 7 Mounting bracket kit shipped with the 5120 EI switches
Chassis Front mounting brackets Rear mounting brackets
5120-24G EI (2 slots)
5120-24G EI TAA (2 slots)
5120-48G EI (2 slots)
5120-48G EI TAA (2 slots)
5120-24G EI
5120-48G EI
One pair N/A
5120-24G-PoE+ EI (2 slots)
5120-24G-PoE+ EI TAA (2 slots)
5120-48G-PoE+ EI (2 slots)
5120-48G-PoE+ EI TAA (2 slots)
One pair One pair
Rack-mounting by using only front mounting brackets
This installation method is available only for the 5120-24G EI (2 slots), 5120-24G EI TAA (2 slots),
5120-48G EI (2 slots), 5120-48G EI TAA (2 slots), 5120-24G EI, and 5120-48G EI switches.
This task requires two persons.
To mount a switch in a 19-inch standard rack by using only the front mounting brackets:
1. Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well
grounded.
2. Check that the rack is well grounded and can support the weight of the switch chassis and all its
accessories.
