HP 5120 EI Series Installation Guide

8

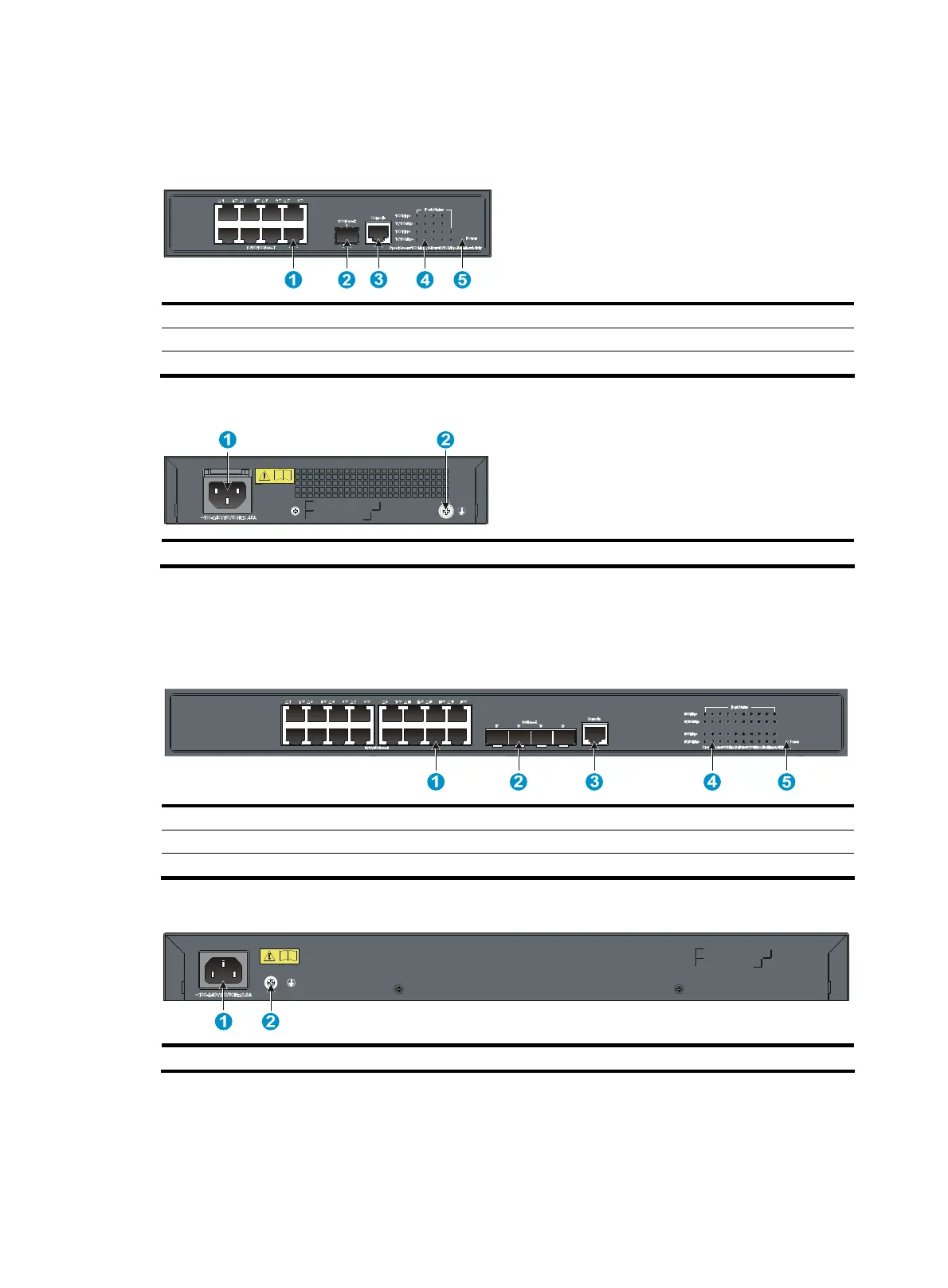

5120-8G SI panel views
Figure 13 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) 1000Base-X SFP port
(3) Console port (4) Port LED
(5) Power LED (Power)
Figure 14 Rear panel
(1) AC-input power receptacle (2) Grounding screw
5120-16G SI panel views
Figure 15 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) 1000Base-X SFP port
(3) Console port (4) Port LED
(5) Power LED (Power)
Figure 16 Rear panel
(1) AC-input power receptacle (2) Grounding screw
