5120-8G-PPoE+ SI panel views

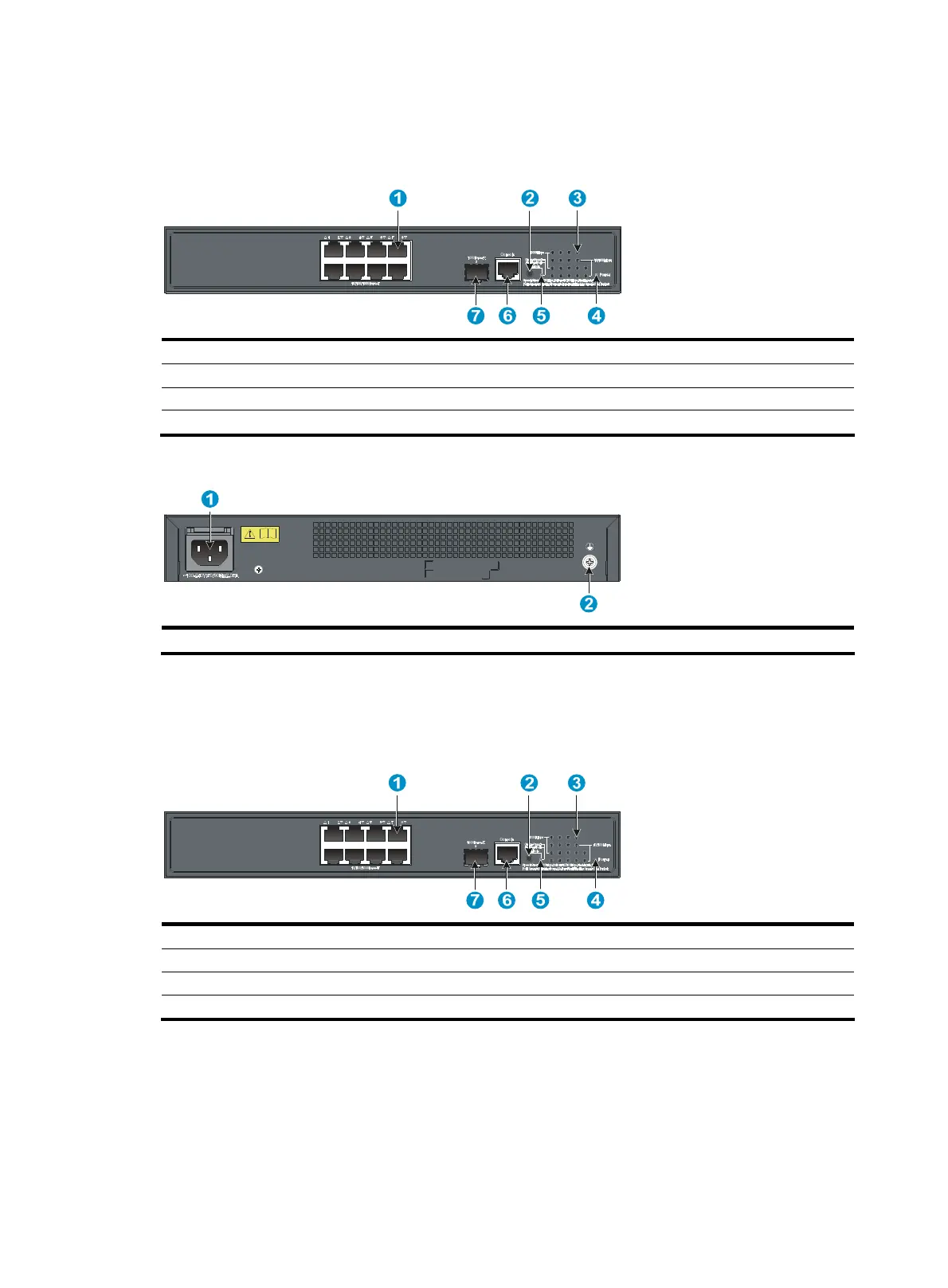

Figure 21 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) Port LED mode switching button
(3) Port LED (4) Power LED (Power)
(5) Port mode LED (6) Console port
(7) 1000Base-X SFP port
Figure 22 Rear panel
(1) AC-input power receptacle (2) Grounding screw
5120-8G-PoE+ SI panel views
Figure 23 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) Port LED mode switching button
(3) Port LED (4) Power LED (Power)
(5) Port mode LED (6) Console port
(7) 1000Base-X SFP port
