HP 5120 EI Series

46

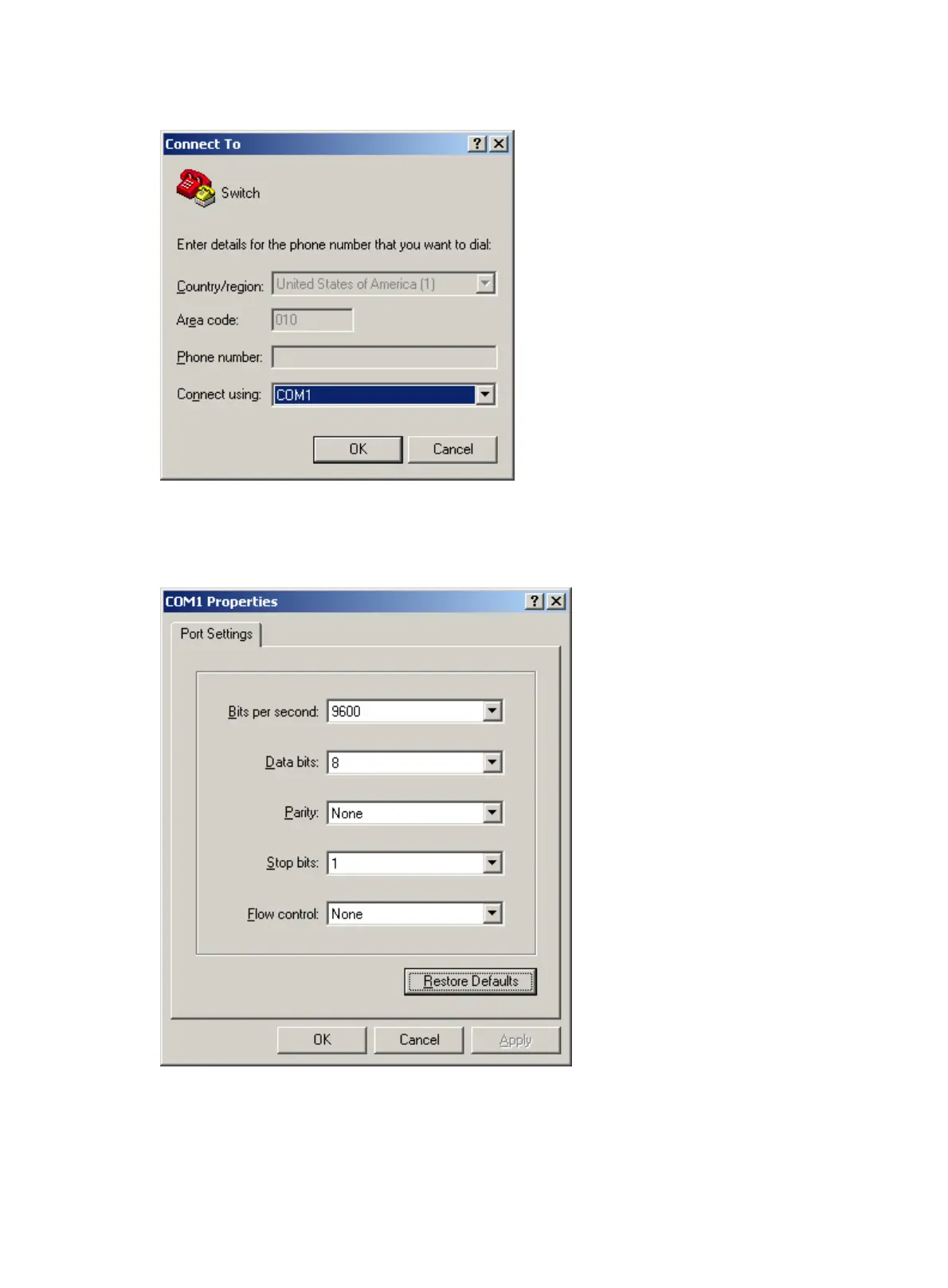

Figure 72 Set the serial port used by the HyperTerminal connection
4. Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None,
and click OK.
Figure 73 Set the serial port parameters
5. Select File > Properties in the HyperTerminal window.
