8
Press
Main/Delayed
, then press the
Main
softkey.
9
Use the horizontal vernier to change the time base to 1
µ
s/div, then
center the signal on the display with the Delay knob (delay about
901
µ
s).

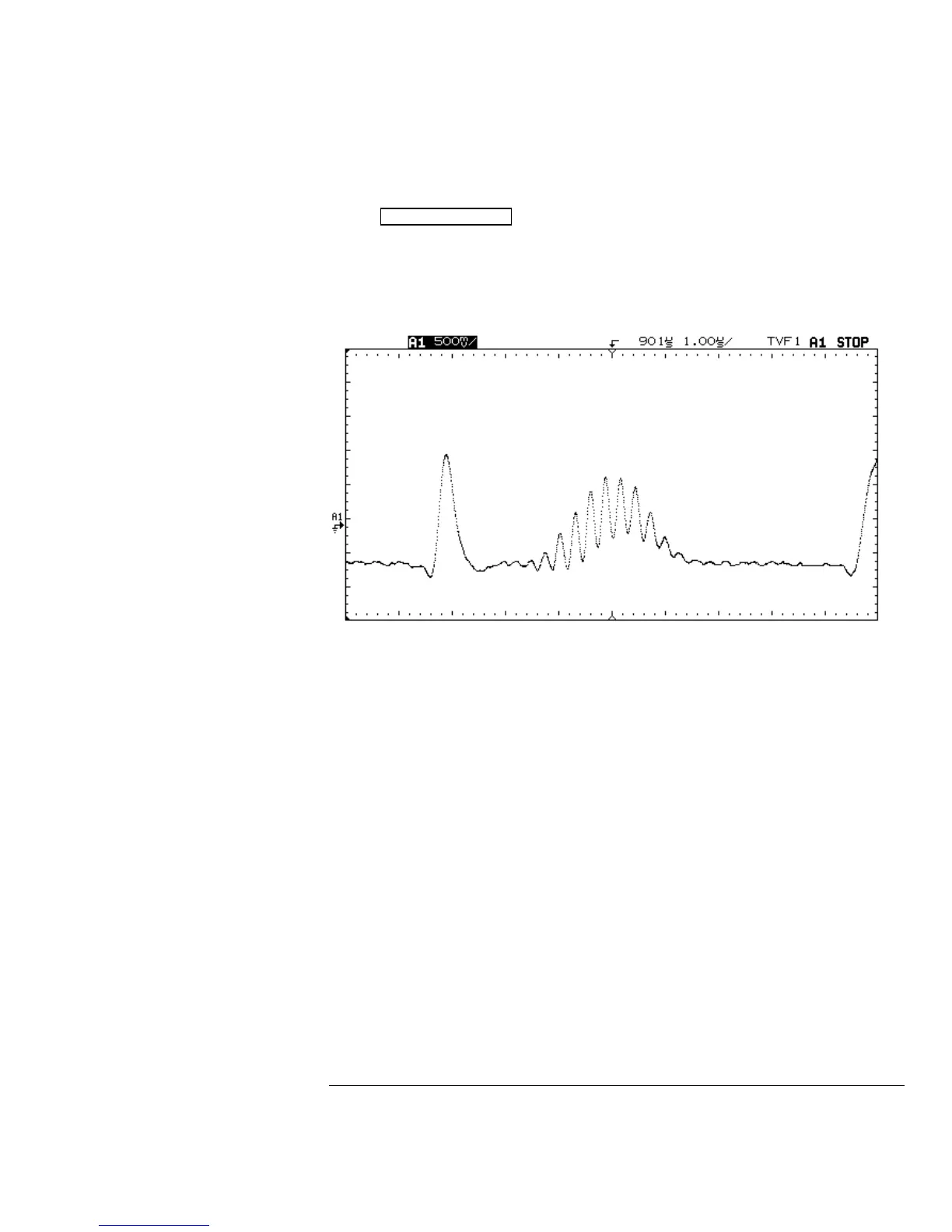

Modulated 12.5T Pulse on the FCC Composite Test Signal
Figure 5-15
Making Measurements with HP 54645A/D Oscilloscopes
To analyze video waveforms
