To view asynchronous noise on a signal
The following exercise shows how to use the oscilloscope to view
asynchronous noise on a signal that is not synchronous to the period of the
waveform.
1
Connect a noisy signal to the oscilloscope and obtain a stable display.
This shows a waveform with asynchronous noise in the pulse.

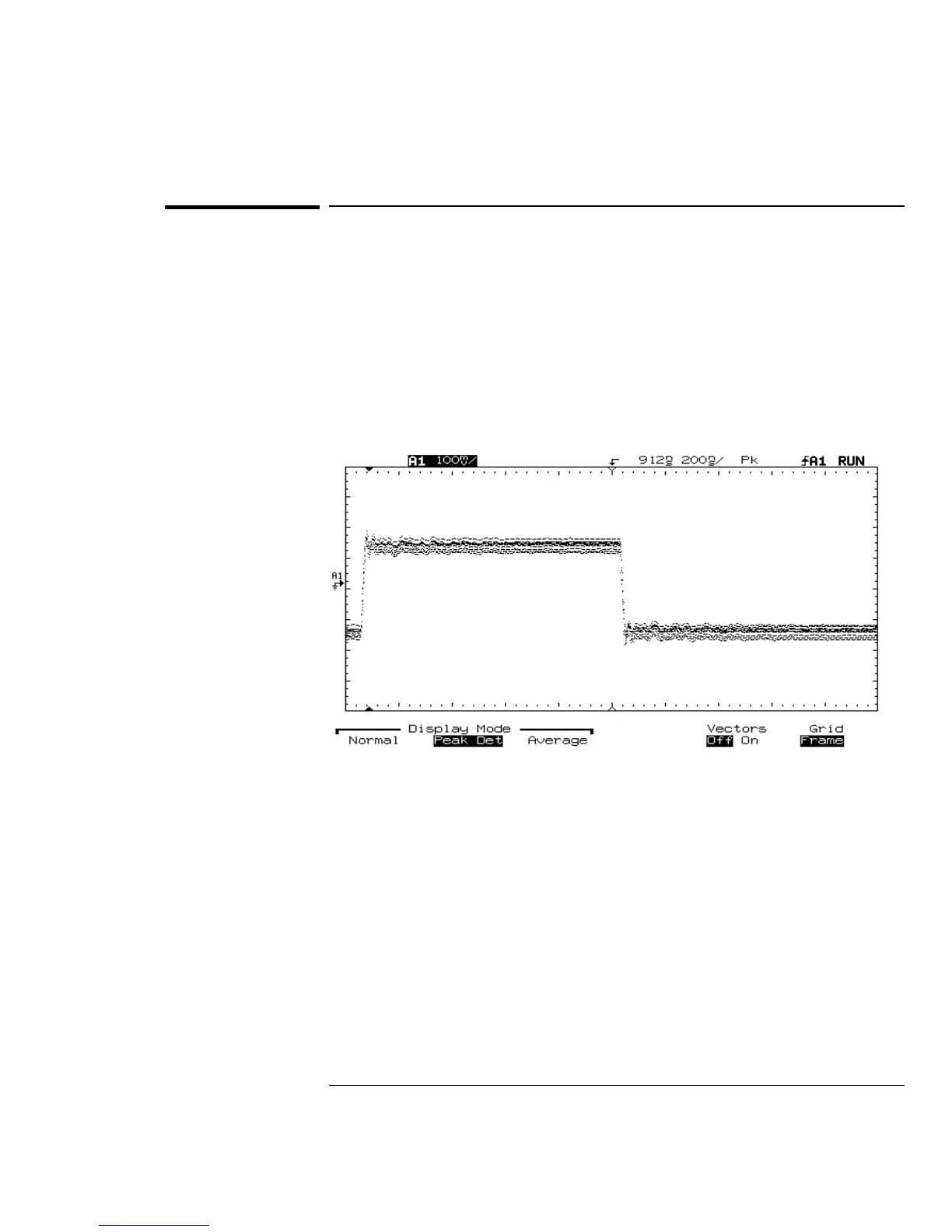

Asynchronous Noise in Pulse
Figure 5-2
