Moving Cursors Together
Pressing the time cursor softkey until both time cursors are highlighted
allows you to move them together when rotating the Entry knob.

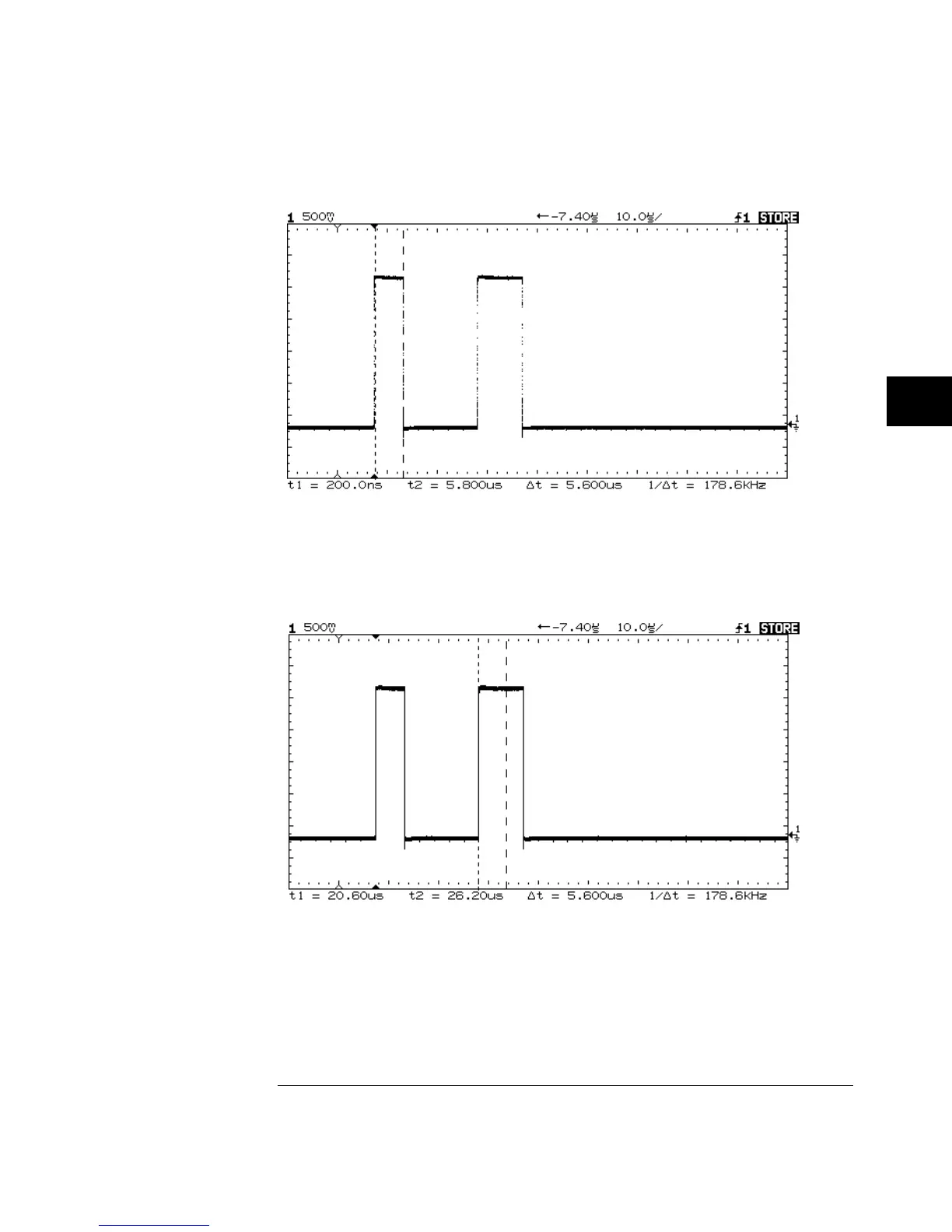

Checking Pulse Width Variations
Move the cursors together to check for pulse width variations in a pulse train.
Figure 5-19
Figure 5-20
Making Measurements with HP 54645A/D Oscilloscopes
To make cursor measurements
5-25
