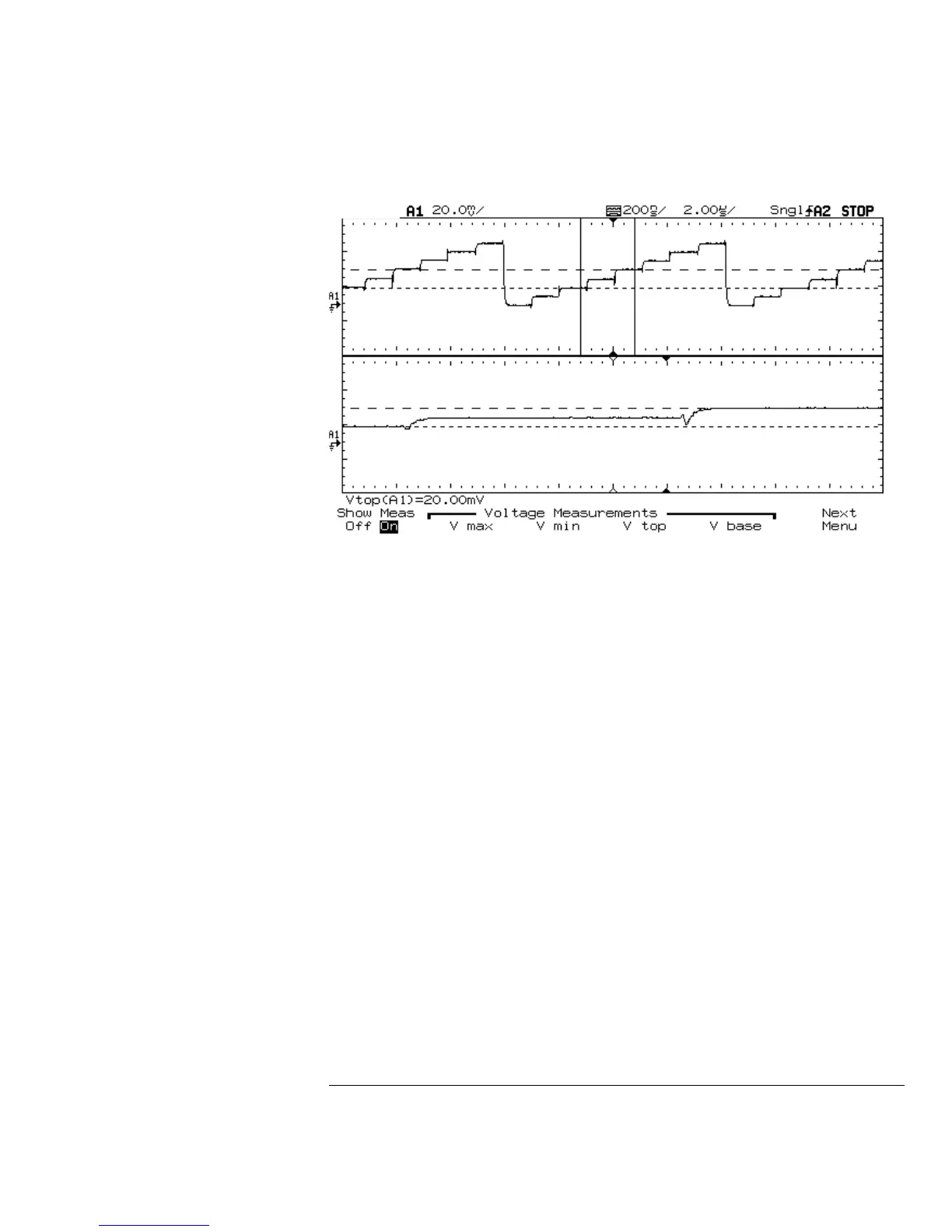

Isolating Area for Vtop Voltage Measurement
4
Press the
Next Menu
softkey.
A softkey menu appears with additional voltage measurement choices.
Show Meas
(show measurement) displays the horizontal and vertical
cursors showing where the measurement was taken.
Voltage Measurements
include choices for measuring the maximum
(V
max
), minimum (V
min
), top (V
top
), and base (V
base
) voltages.
Next Menu
displays the next softkey menu.
With the Measurement/Storage module attached to the oscilloscope, you can
also measure amplitude (V
amp
), overshoot (V
over
), and preshoot (V
pre
)
voltages.
Figure 5-27
Making Measurements with HP 54645A/D Oscilloscopes
To make voltage measurements automatically
5-34
