HP 5500 HI Series Installation Guide

6
5500-48G-PoE+-4SFP HI (2 slots)/
5500-48G-PoE+-4SFP HI TAA (2 slots) panel views

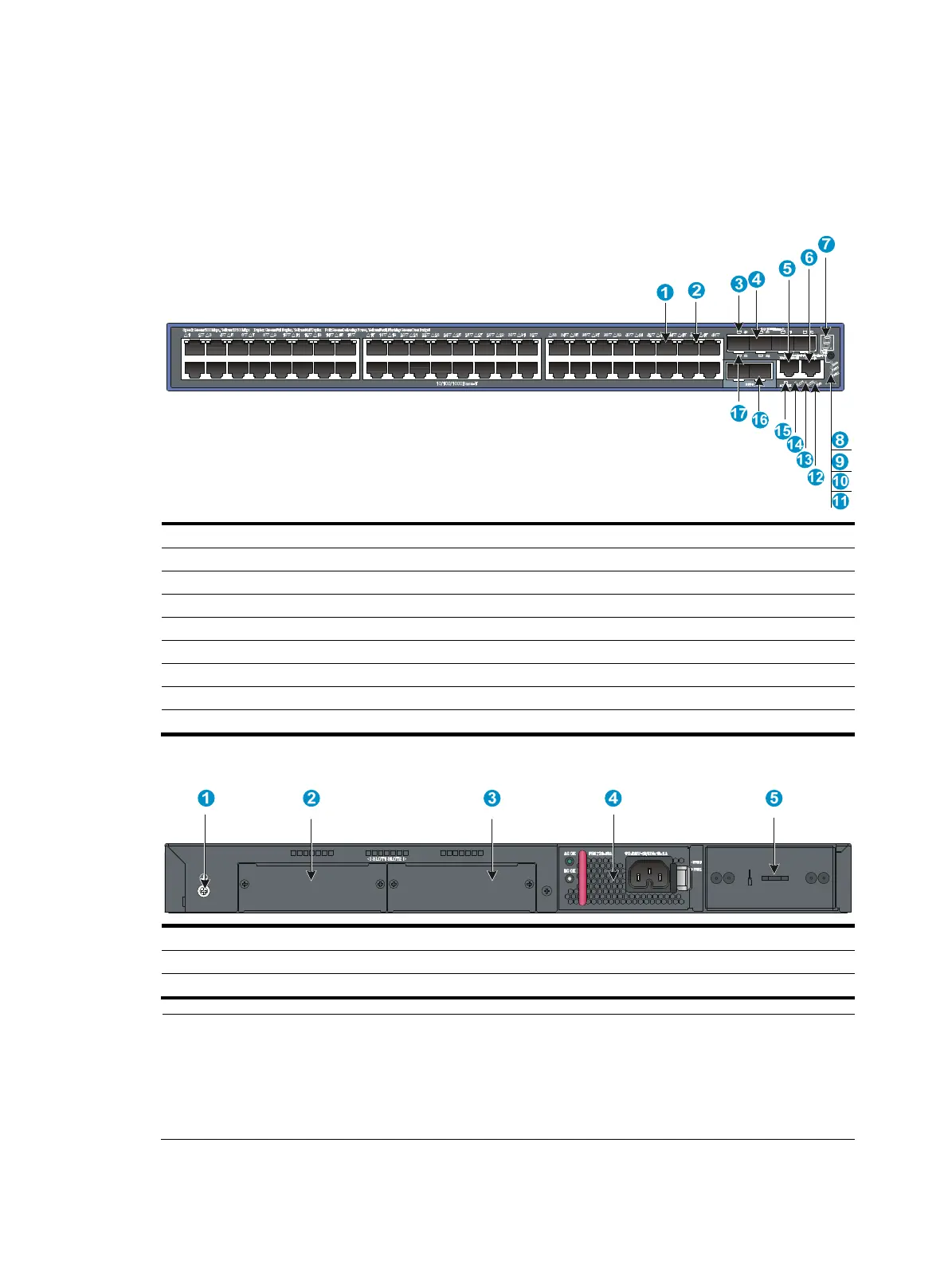

Figure 9 5500-48G-PoE+-4SFP HI (2 slots)/5500-48G-PoE+-4SFP HI TAA (2 slots) front panel
(1) 10/100/1000 Base-T auto-sensin
g
Ethernet port (2) 10/100/1000 Base-T Ethernet port LED
(3) SFP port LED (4) 100/1000 Base-X SFP port
(5) Management Ethernet port (Management) (6) Console port
(7) Seven-se
g
ment LED (Unit) (8) Port LED mode switchin
g
button
(9) Port mode LED (Mode) (10) Power supply 1 status LED (PWR1)
(11) Power supply 2 status LED (PWR2) (12) System status LED (SYS)
(13) Interface card 2 status LED (SLOT2) (14) Interface card 1 status LED (SLOT1)
(15) Mana
g
ement Ethernet port LED (ACT/LINK) (16) SFP+ port
(17) SFP+ port LED
Figure 10 5500-48G-PoE+-4SFP HI (2 slots)/5500-48G-PoE+-4SFP HI TAA (2 slots) rear panel
(1) Groundin
g
screw (2) Interface card slot 1 (SLOT1)
(3) Interface card slot 2 (SLOT2) (4) Power supply slot 1 (PWR1)
(5) Power supply slot 2 (PWR2)
NOTE:
• The 5500-48G-PoE+-4SFP HI (2 slots) switch and 5500-48G-PoE+-4SFP HI TAA (2 slots) switch come
with two expansion interface card slots covered by filler panels.
• The 5500-48G-PoE+-4SFP HI (2 slots) switch and 5500-48G-PoE+-4SFP HI TAA (2 slots) switch come
with power supply slots empty.
