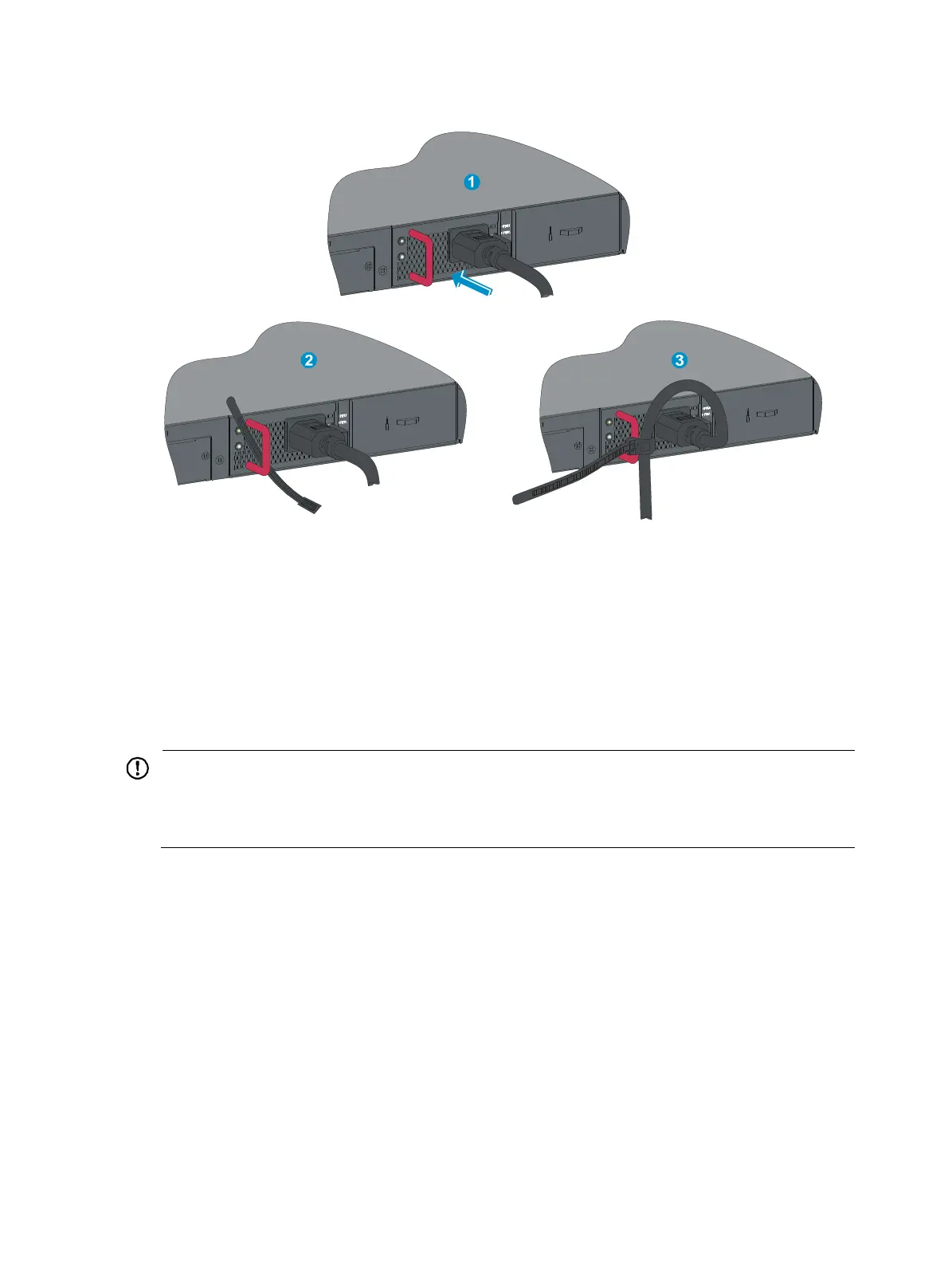

Figure 39 Connecting the PSR720-56A
Installing/removing an interface card
This section uses the LSPM2SP2P (JD368B) interface card as an example to describe the procedures of
installing and removing an interface card.
For the interface cards available for the switch series, see "Interface cards."
Installing an interface card
IMPORTANT:
On the 5500-24G-4SFP HI (2 slots), 5500-24G-SFP HI (2 slots), 5500-24G-SFP HI TAA (2 slots),
5500-24G-PoE+-4SFP HI (2 slots), and 5500-24G-PoE+-4SFP HI TAA (2 slots) switches, you can install
the LSP5GP8P0 (JG314A) and LSP5GT8P (JG313A) cards only in SLOT1.
To install an interface card:
1. Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well
grounded.
2. Loosen the mounting screws on the filler panel over the interface card slot with a Phillips
screwdriver and remove the filler panel.
Put away the removed filler panel for future use.
