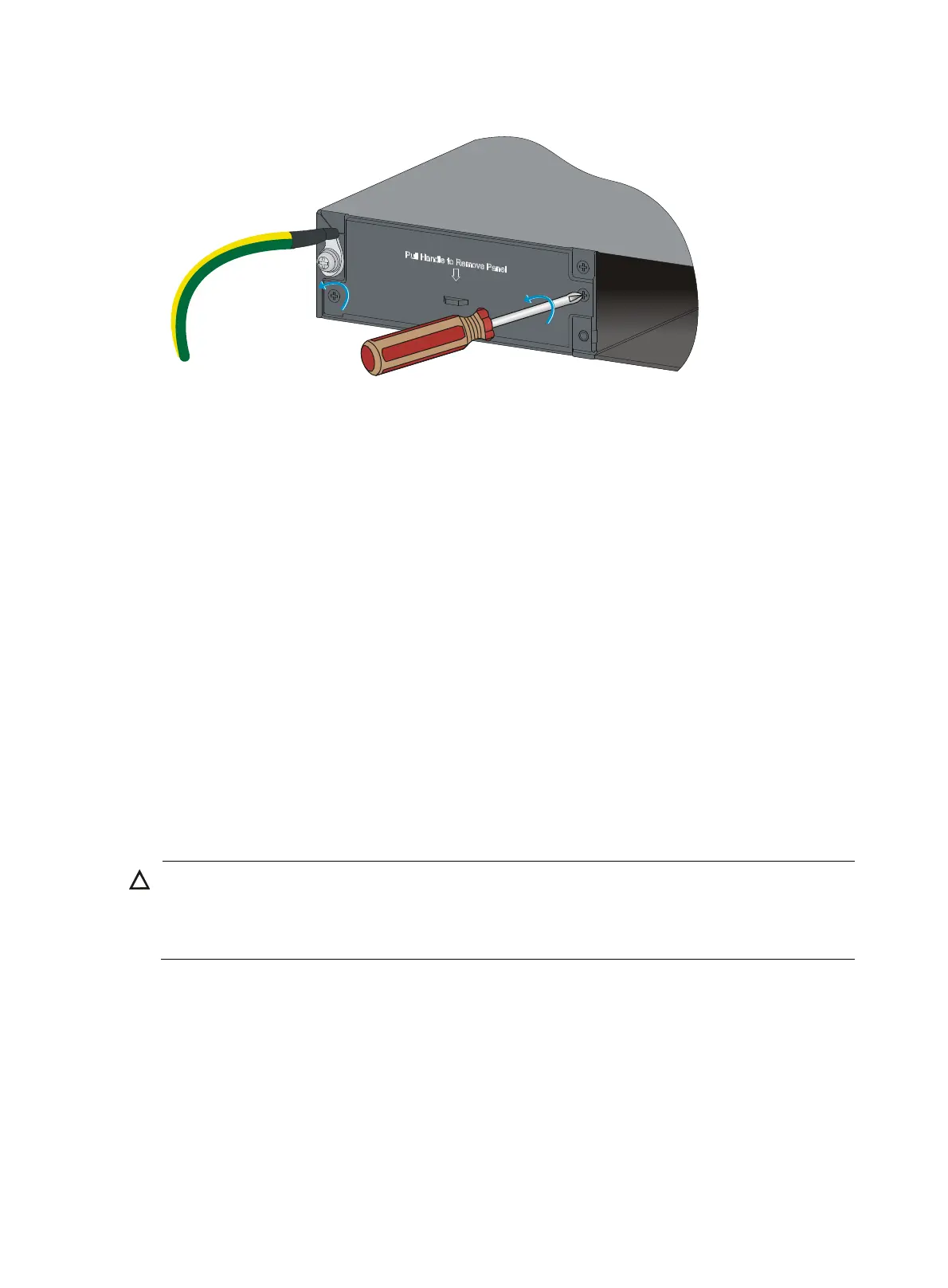

Figure 31 Removing the filler panel
Removing a PSR150 series power supply
To remove a power supply:
1. Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well
grounded.
2. Disconnect the power cord.
3. Loosen the captive screws of the power supply with a Phillips screwdriver until they are completely
disengaged.
4. Grasp the handle of the power supply with one hand and pull it out a little, support the bottom with
the other hand, and pull the power supply slowly along the guide rails out of the slot.
Put away the removed power supply in an antistatic bag or the power supply package bag for
future use.
5. Install the filler panel to prevent dust and ensure proper ventilation if no power supply is installed
in the slot.
Installing a PSR720-56A/PSR1110-56A power supply
CAUTION:
To prevent damage to the power supply or the connectors on the backplane, insert the power supply
ently. If you encounter a hard resistance while insertin
the power supply, pull out the power supply and
insert it again.
For the PSR720-56A and PSR1110-56A power supplies, the installation and removal procedures are the
same. The following takes the PSR720-56A power supply as an example.
To install a power supply:
1. Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well
grounded.
2. Unpack the power supply and check that the power supply model is correct.
Put away the packaging box and packaging bag of the power supply for future use.
