4
5500-24G-SFP HI (2 slots)/5500-24G-SFP HI TAA
(2 slots) panel views

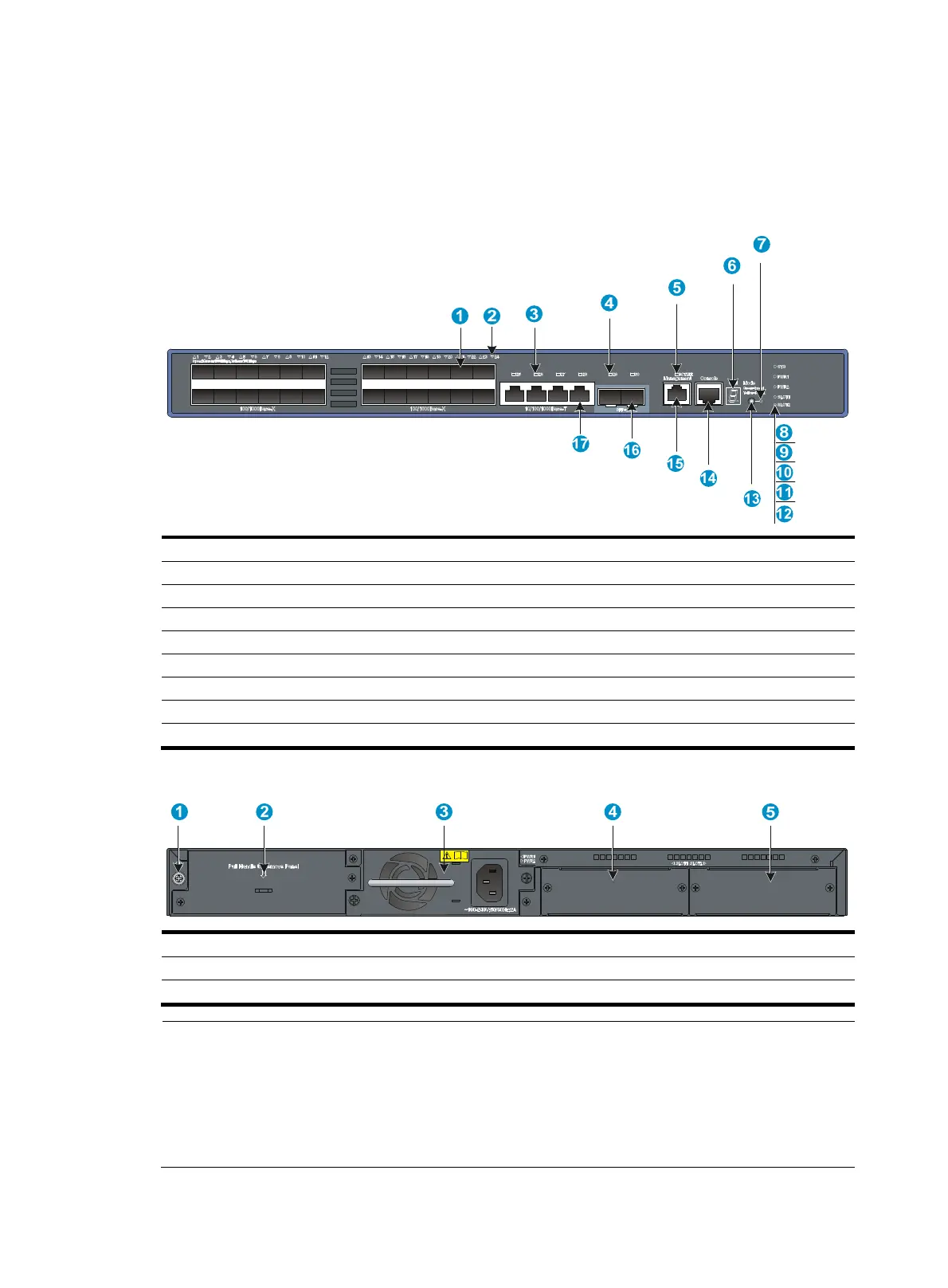

Figure 5 5500-24G-SFP HI (2 slots)/5500-24G-SFP HI TAA (2 slots) front panel
(1) 100/1000 Base-X SFP port (2) SFP port LED
(3) 10/100/1000 Base-T Ethernet port LED
(4) SFP+ port LED
(5) Management Ethernet port LED (ACT/LINK) (6) Seven-segment LED (Unit)
(7) Port mode LED (Mode) (8) System status LED (SYS)
(9) Power supply 1 status LED (PWR1)
(10) Power supply 2 status LED (PWR2)
(11) Interface card 1 status LED (SLOT1) (12) Interface card 2 status LED (SLOT2)
(13) Port LED mode switchin
g
button
(14) Console port
(15) Mana
g
ement Ethernet port (Mana
g
ement)
(16) SFP+ port
(17) 10/100/1000 Base-T auto-sensing Ethernet port
Figure 6 5500-24G-SFP HI (2 slots)/5500-24G-SFP HI TAA (2 slots) rear panel
(1) Groundin
g
screw (2) Power supply slot 1 (PWR1)
(3) Power supply slot 2 (PWR2) (4) Interface card slot 1 (SLOT1)
(5) Interface card slot 2 (SLOT2)
NOTE:
The 5500-24G-SFP HI (2 slots) switch and 5500-24G-SFP HI TAA (2 slots) switch come with two
expansion interface card slots covered by filler panels.
The 5500-24G-SFP HI (2 slots) switch and 5500-24G-SFP HI TAA (2 slots) switch come with power
supply slot 1 covered by a filler panel and power supply slot 2 empty. In this figure, a PSR150-A
(JD362A) power supply is installed in power supply slot 2.
