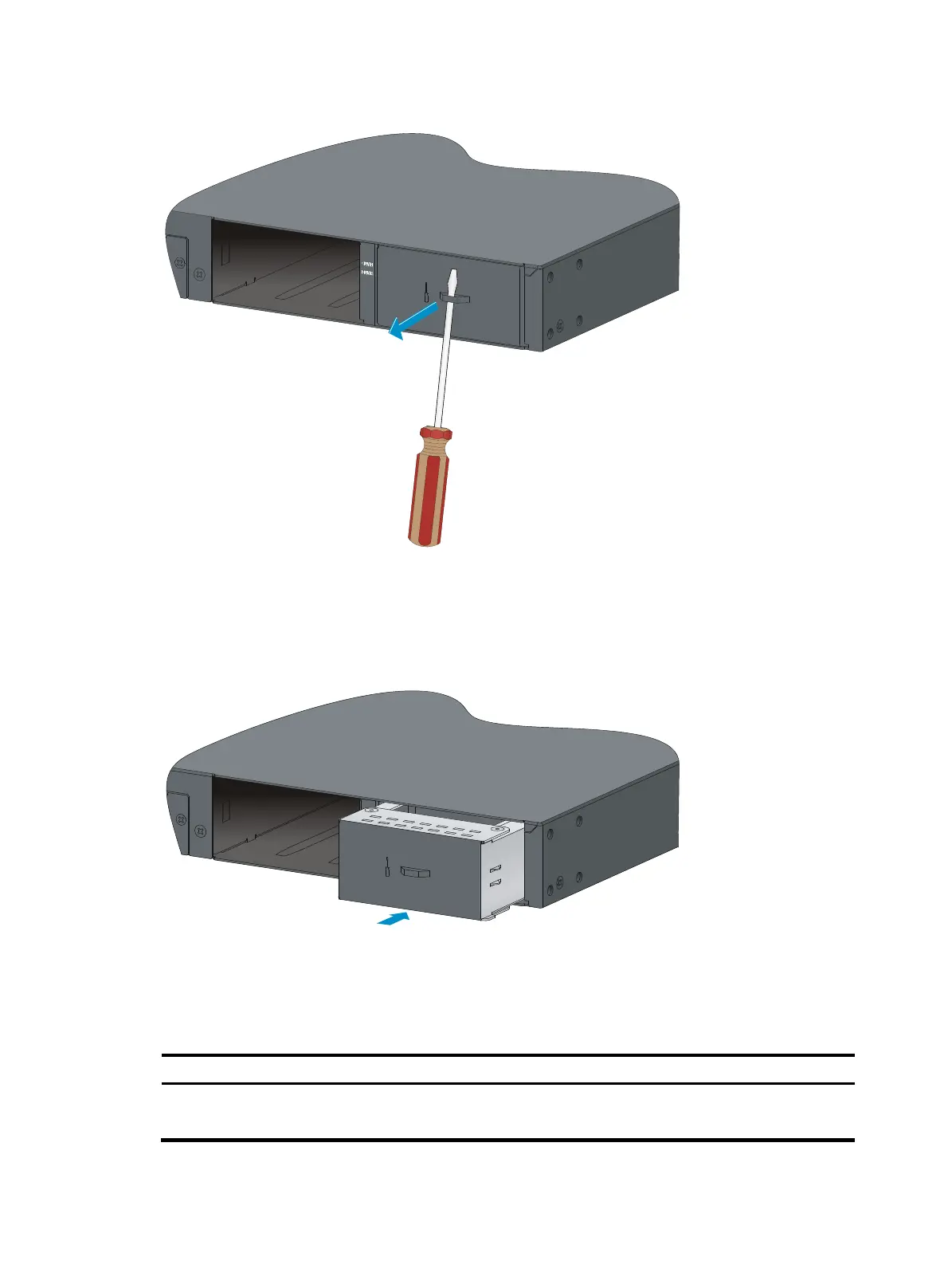

Figure 35 Installing a filler module
If the power supply slot where you want to install a power supply is covered by a filler module, remove
the filler module first. To do so, insert a flathead screwdriver through the handle and pull the filler module
outward along the guide rails, as shown in Figure 36. P
ut away the removed filler module for future use.
Figure 36 Removing a filler module
Connecting the power cord
Table 5 Power cord connection procedures at a glance
Power su
l
Connection
rocedure reference
PSR150-A (JD362A)
PSR150-A1 (JD362A)
Connecting the PSR150-A/PSR150-A1
