18

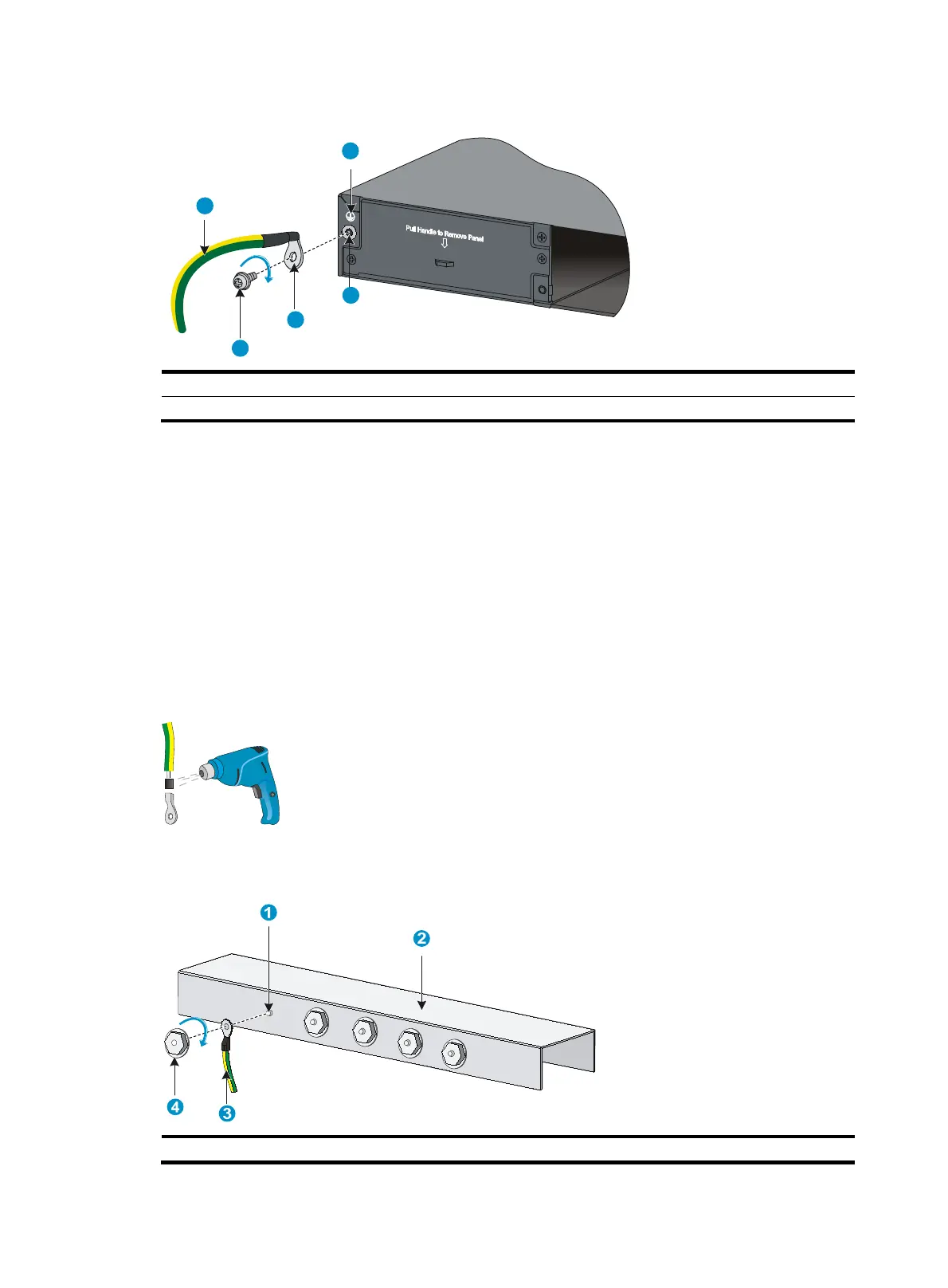

Figure 23 Connecting the grounding cable to the chassis
(1) Groundin
cable (2) Groundin
si
n
(3) Groundin
hole
(4) Rin
terminal
(5) Grounding screw
4. Check that the grounding cable has been securely connected to the rear grounding point.
5. Remove the hex nut of a grounding post on the grounding strip.
6. Cut the grounding cable as appropriate for connecting to the grounding strip.
7. Peel 5 mm (0.20 in) of insulation sheath by using a wire stripper, and insert the bare metal part
through the black insulation covering into the end of the ring terminal supplied with the switch.
8. Secure the metal part of the cable to the ring terminal with a crimper, cover the joint with the
insulation covering, and heat the insulation covering with a blow dryer to completely cover the
metal part.
9. Connect the ring terminal to the grounding post of the grounding strip, and fasten it with the
removed hex nut.
Figure 24 Attaching a ring terminal to the grounding cable
Figure 25 Connecting the grounding cable to a grounding strip
(1) Grounding post (2) Grounding strip (3) Grounding cable (4) Hex nut
1
2
3
4
5
