34

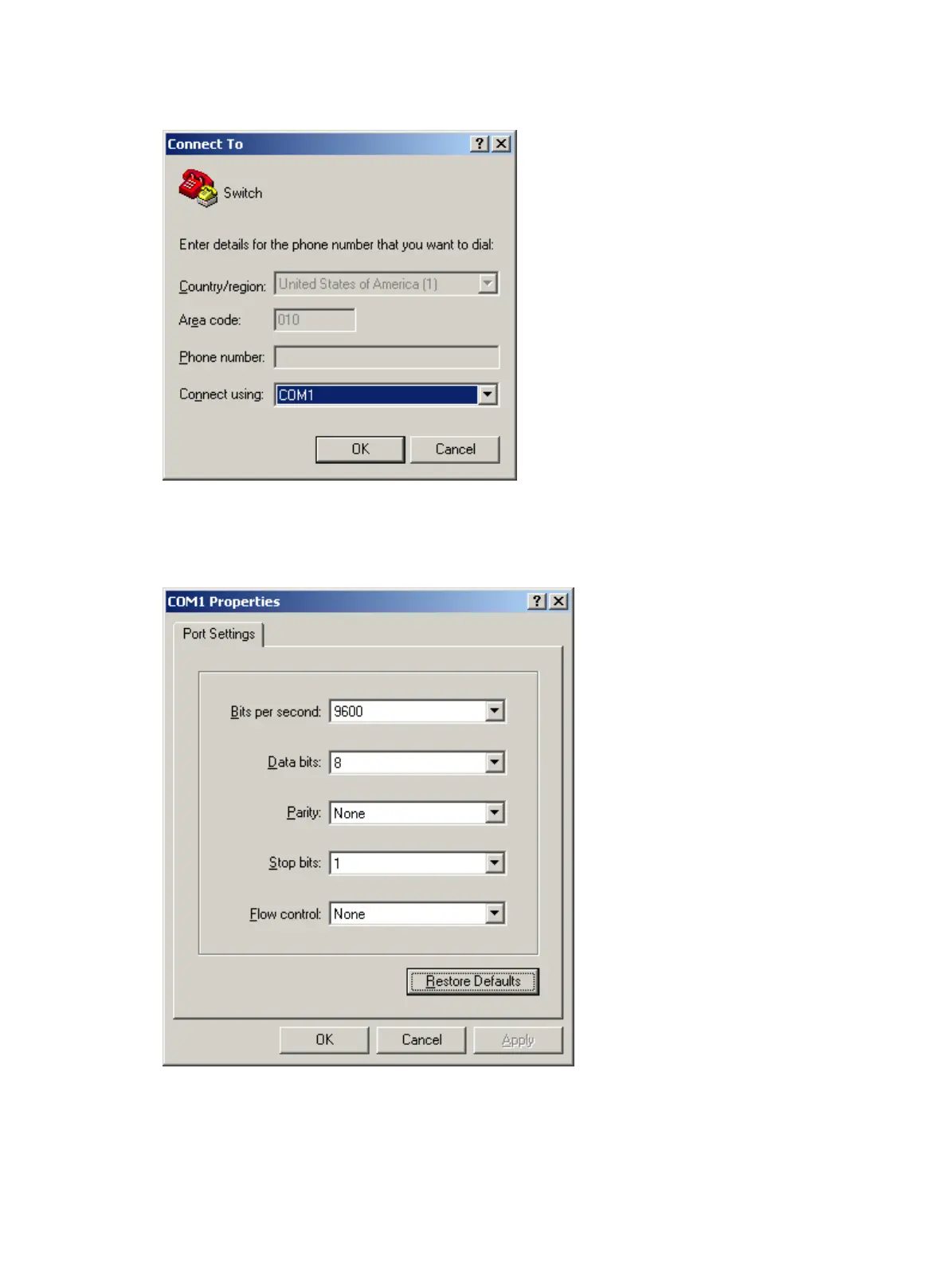

Figure 47
Setting the serial port used
by the HyperTerminal connection
4.
Set
Bits per second
to
9600
,
Data bits
to
8
,
Parity
to
None
,
Stop bits
to
1
, and
Flow control
to
None
,
and click
OK
.
Figure 48
Setting the serial port parameters
5.
Select
File
>
Properties
in the HyperTerminal window.
38
40
