HP 5800 Series Configuration Guide

70

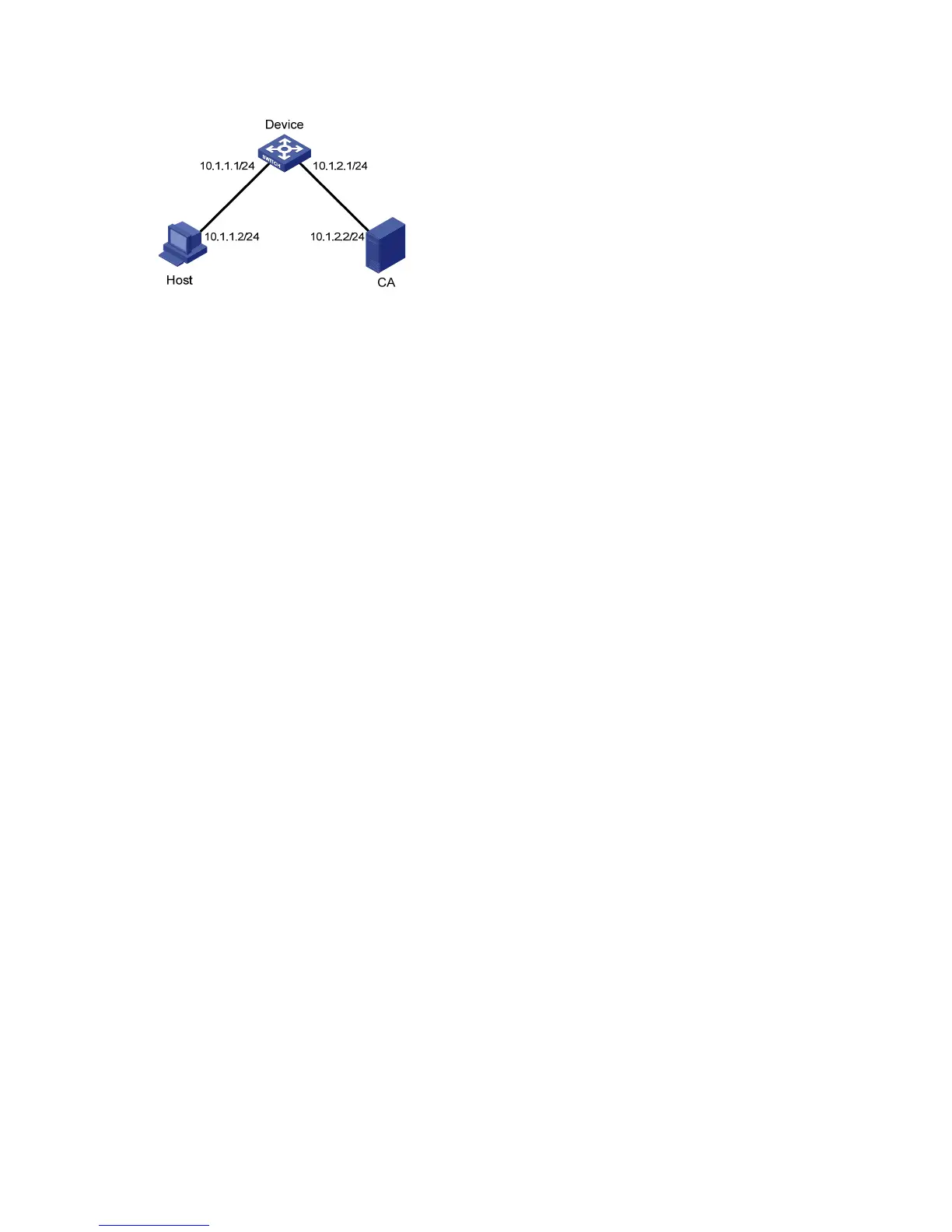

Figure 5 Network diagram for configuring HTTPS login
Procedure
1. Configure the device that acts as the HTTPS server
# Configure a PKI entity, configure the common name of the entity as http-server1, and the FQDN of the
entity as ssl.security.com.
<Device> system-view
[Device] pki entity en
[Device-pki-entity-en] common-name http-server1
[Device-pki-entity-en] fqdn ssl.security.com
[Device-pki-entity-en] quit
# Create a PKI domain, specify the trusted CA as new-ca, the URL of the server for certificate request as
http://10.1.2.2/certsrv/mscep/mscep.dll, authority for certificate request as RA, and the entity for
certificate request as en.
[Device] pki domain 1
[Device-pki-domain-1] ca identifier new-ca
[Device-pki-domain-1] certificate request url http://10.1.2.2/certsrv/mscep/mscep.dll
[Device-pki-domain-1] certificate request from ra
[Device-pki-domain-1] certificate request entity en
[Device-pki-domain-1] quit
# Create RSA local key pairs.
[Device] public-key loc al create rsa
# Retrieve the CA certificate from the certificate issuing server.
[Device] pki retrieval-certificate ca domain 1
# Request a local certificate from a CA through SCEP for the device.
[Device] pki request-certificate domain 1
# Create an SSL server policy myssl, specify PKI domain 1 for the SSL server policy, and enable
certificate-based SSL client authentication.
[Device] ssl server-policy myssl
[Device-ssl-server-policy-myssl] pki-domain 1
[Device-ssl-server-policy-myssl] client-verify enable
[Device-ssl-server-policy-myssl] quit

HP 5800 Series Specifications

General

MAC Address Table Size	32, 000 entries
Uplink Ports	2 or 4 SFP+ 10GbE ports
Routing Protocol	BGP, IS-IS
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 95% (noncondensing)
PoE	Optional
Power Supply	Redundant power supply (optional)
