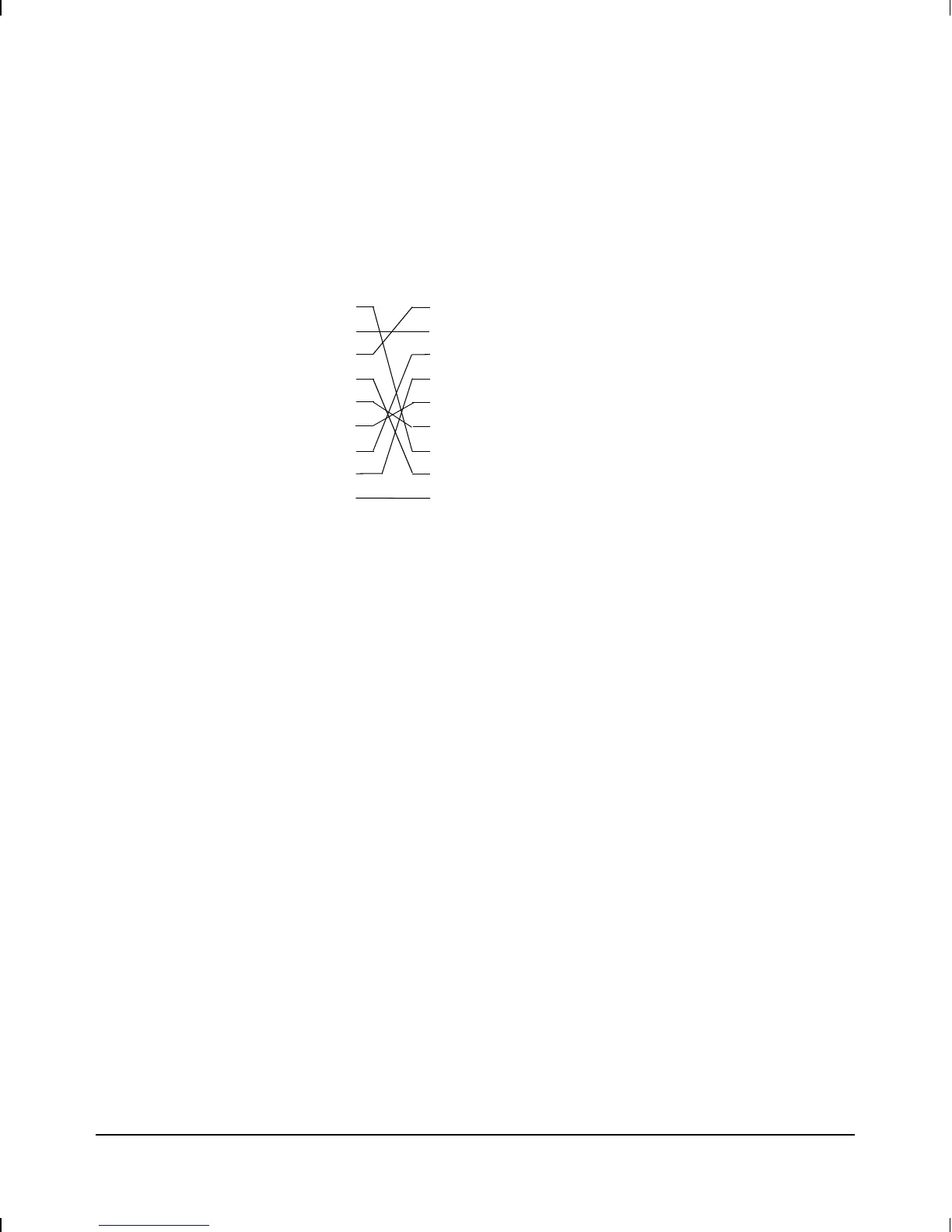

Alternate Console-to-Modem Cable
(24542M)
Signal Router
Modem
(25-pin) Signal
DCD 1 2 Tx
Rx 2 3 Rx
Tx 3 4 RTS
DTR 4 5 CTS
Gnd 5 6 DSR
DSR 6 7 Gnd
RTS 7 8 DCD
CTS 8 20 DTR
RI 9 22 RI
Cables and Adapters
A-6
