HP Cable and Adapter Pin-Outs

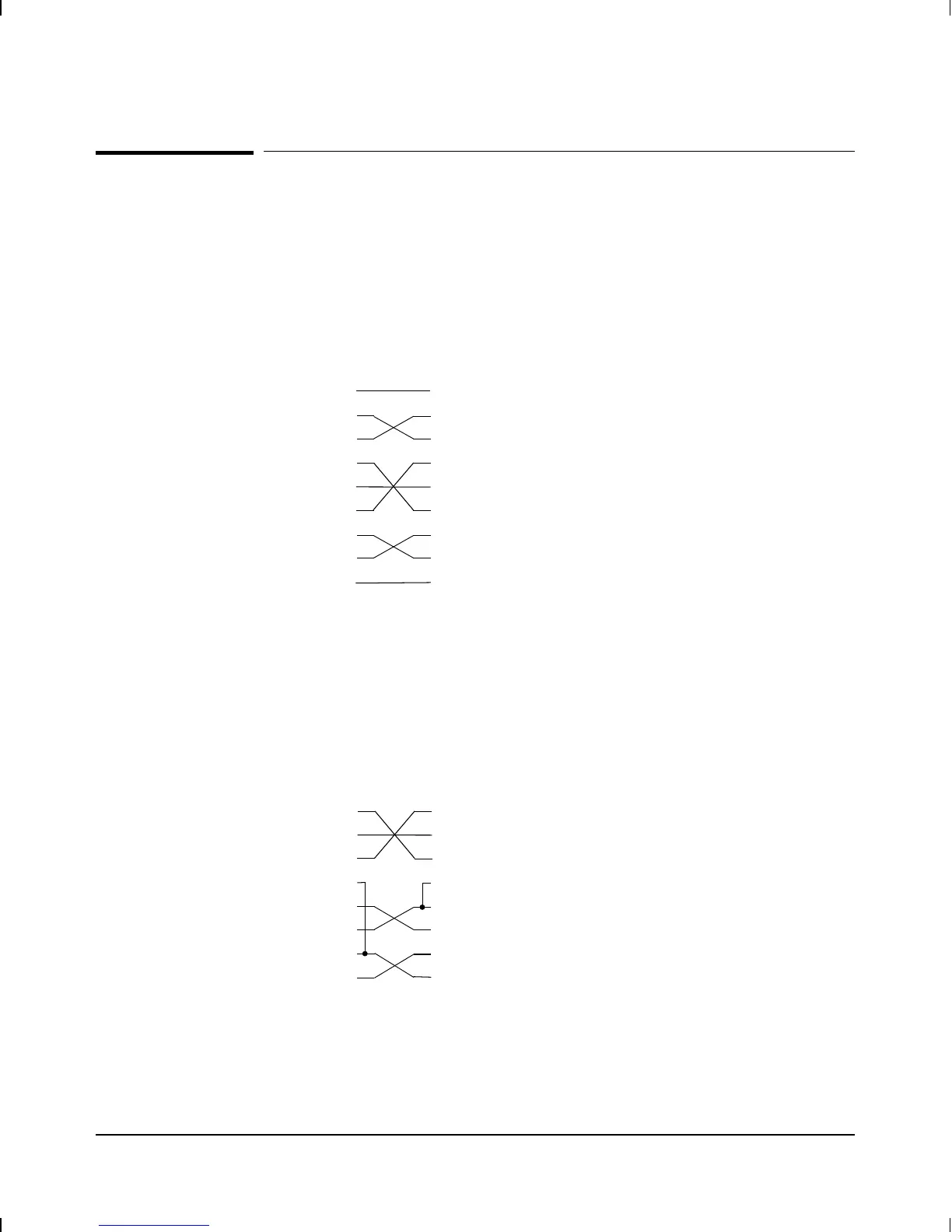

Console Cable (F1047-80002)
Signal Router
PC or
Terminal
(9-pin) Signal
DCD 1 1 DCD
Rx 2 2 Rx
Tx 3 3 Tx
DTR 4 4 DTR
Gnd 5 5 Gnd
DSR 6 6 DSR
RTS 7 7 RTS
CTS 8 8 CTS
RI 9 9 RI
25-Pin Terminal Adapter (5181-6640)
Signal Router
PC or
Terminal
(25-pin) Signal
1
DCD 1 2 Tx
Rx 2 3 Rx
Tx 3 4 RTS
DTR 4 5 CTS
Gnd 5 6 DSR
DSR 6 7 Gnd
RTS 7 8 DCD
CTS 8 20 DTR
RI 9 22
25
Cables and Adapters
A-4
