6-55Removal and Replacement
AUTOMATIC BAIL LIFT MECHANISM REMOVAL
To remove the bail lift mechanism, perform the following steps:
1. Remove the window assembly.
2. Remove the left and right endcovers.
3. Remove the encoder strip.
4. Remove the bail assembly.
5. Remove the overdrive support assembly.
6. Remove the drive roller assembly.
7. Using needle-nose pliers, remove the engagement lever spring. See Figure 6-35.
8. Using a TORX T-10 screwdriver, remove the engagement lever screw from inside
the left sideplate.
9. Remove the spring, lever, and screw from the plotter.

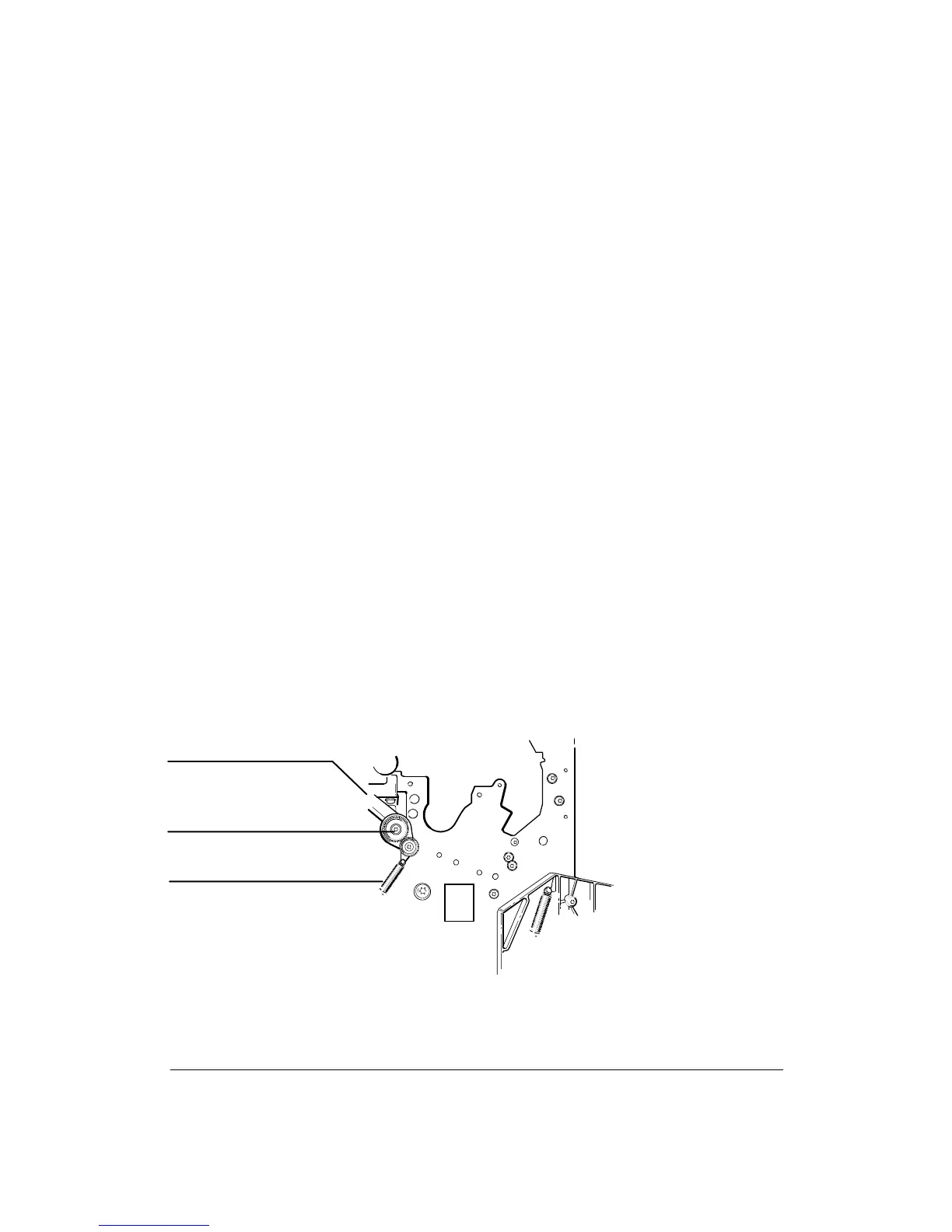

Figure 6-35.
Engagement Lever
Engagement Lever Spring
Screw (Remove
from inside.)
(C)C2858-31b
To Next Page
