6-20 Removal and Replacement
MEDIA SENSOR REMOVAL
To remove the media sensor, perform the following steps:
1. Remove the electronics enclosure cover.
2. Disconnect the media sensor cable connector from the main PCA.
3. Remove the right endcover.
4. Using a TORX T-10 screwdriver, remove the screw that attaches the media sensor to
the entry platen. The screw is accessible from underneath the entry platen.
5. Remove the sensor through the access hole in the right sideplate. See Figure 6-14.
Note
During installation ensure that the sensor is properly aligned to its mounting
hole in the entry platen before screwing it down. Perform the sensor calibra-
tion procedure when completed.

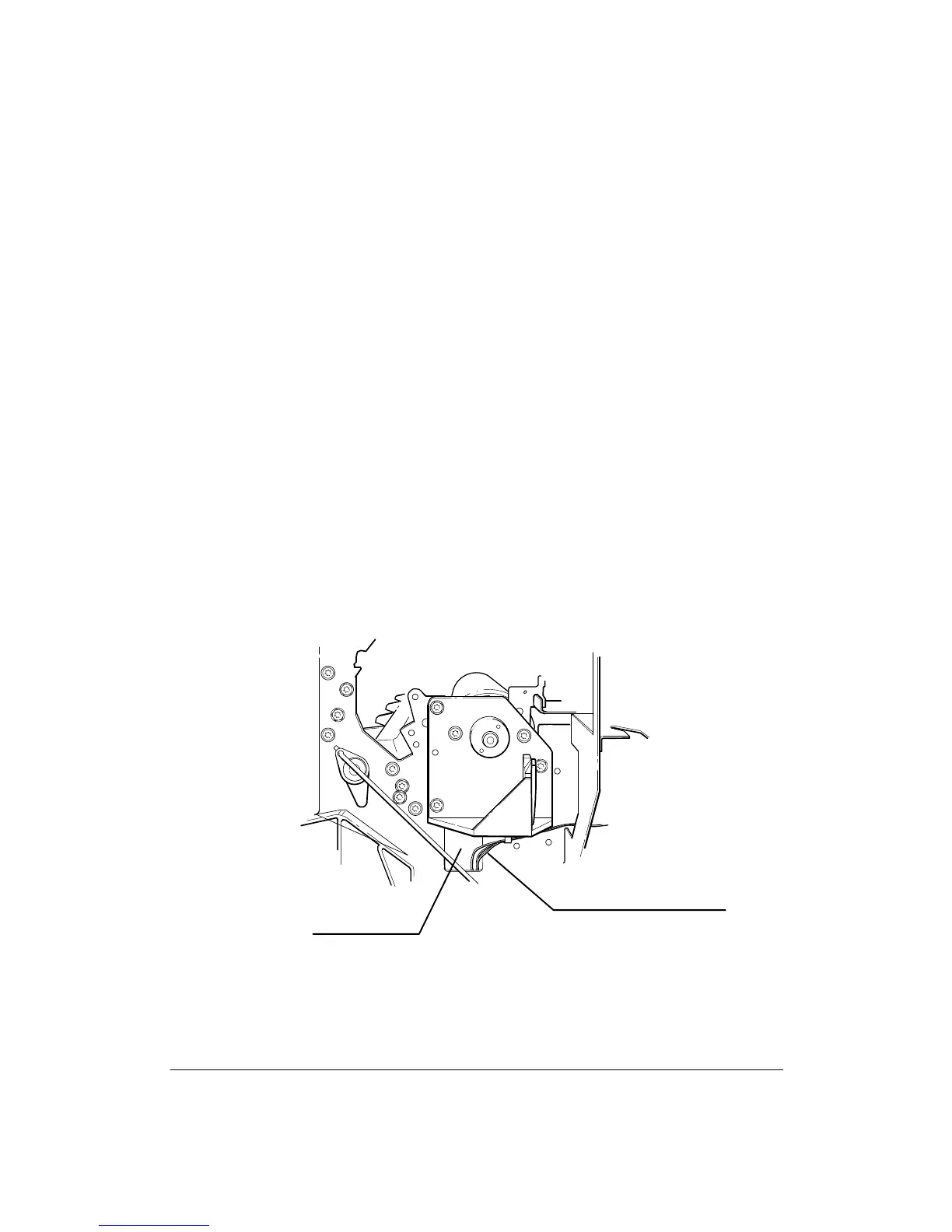

Figure 6-14.
Access Hole
Media Sensor Cable
(C)C2858-3
To Next Page
