6-13Removal and Replacement
FAN REMOVAL
To remove the fan, refer to Figure 6-8 and perform the following procedure:
1. Remove the electronic enclosure cover.
2. Disconnect the fan connector at the main PCA.
3. For model C2858A plotters, remove the outer electronics enclosure assembly.
4. Using a TORX T-10 screwdriver, remove the two screws that secure the fan to the
electronics enclosure assembly. See Figure 6-8.
5. Lift the fan clear of the plotter.

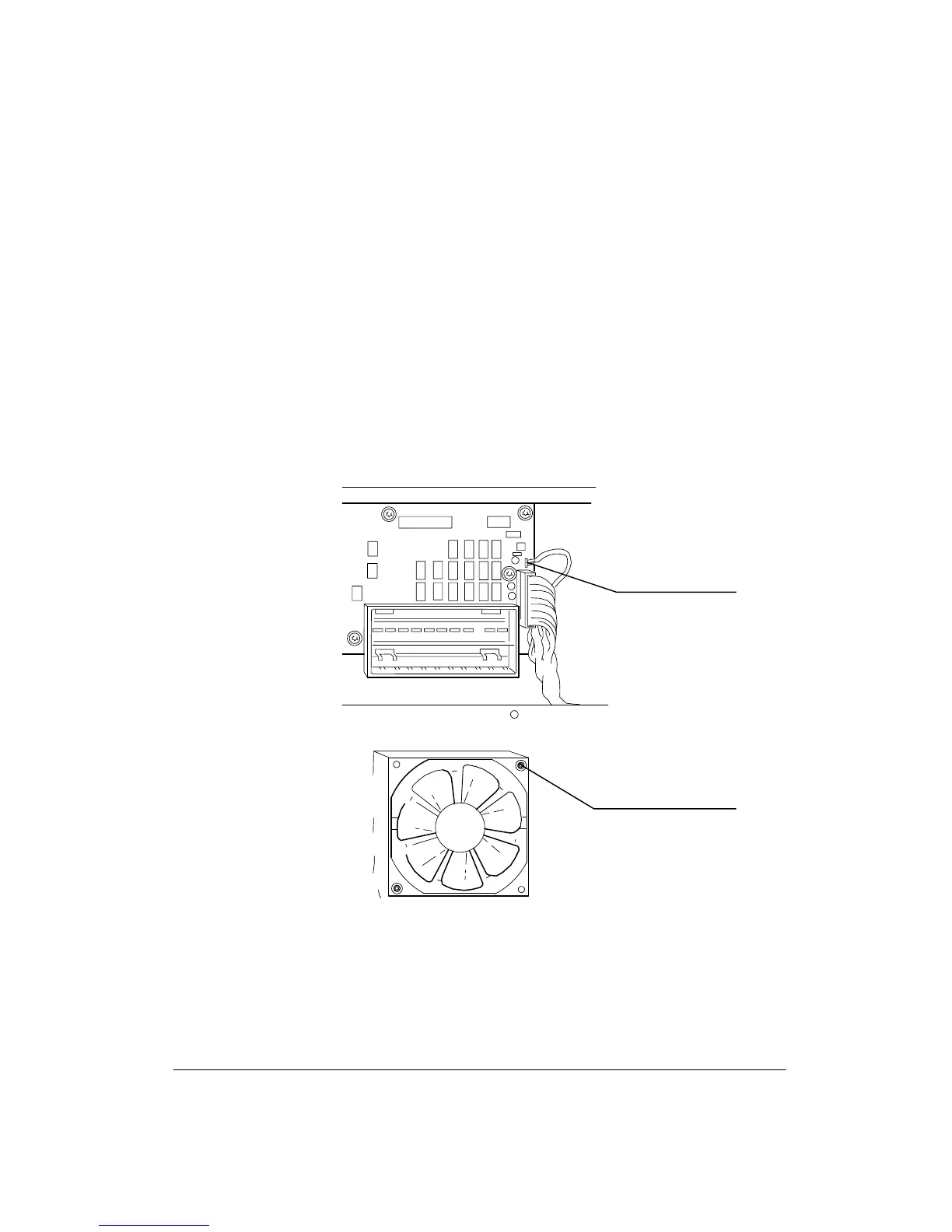

Figure 6-8.
Fan Connector
Fan Screws (2)
(C)C2858-44
