General Information Model 83522A

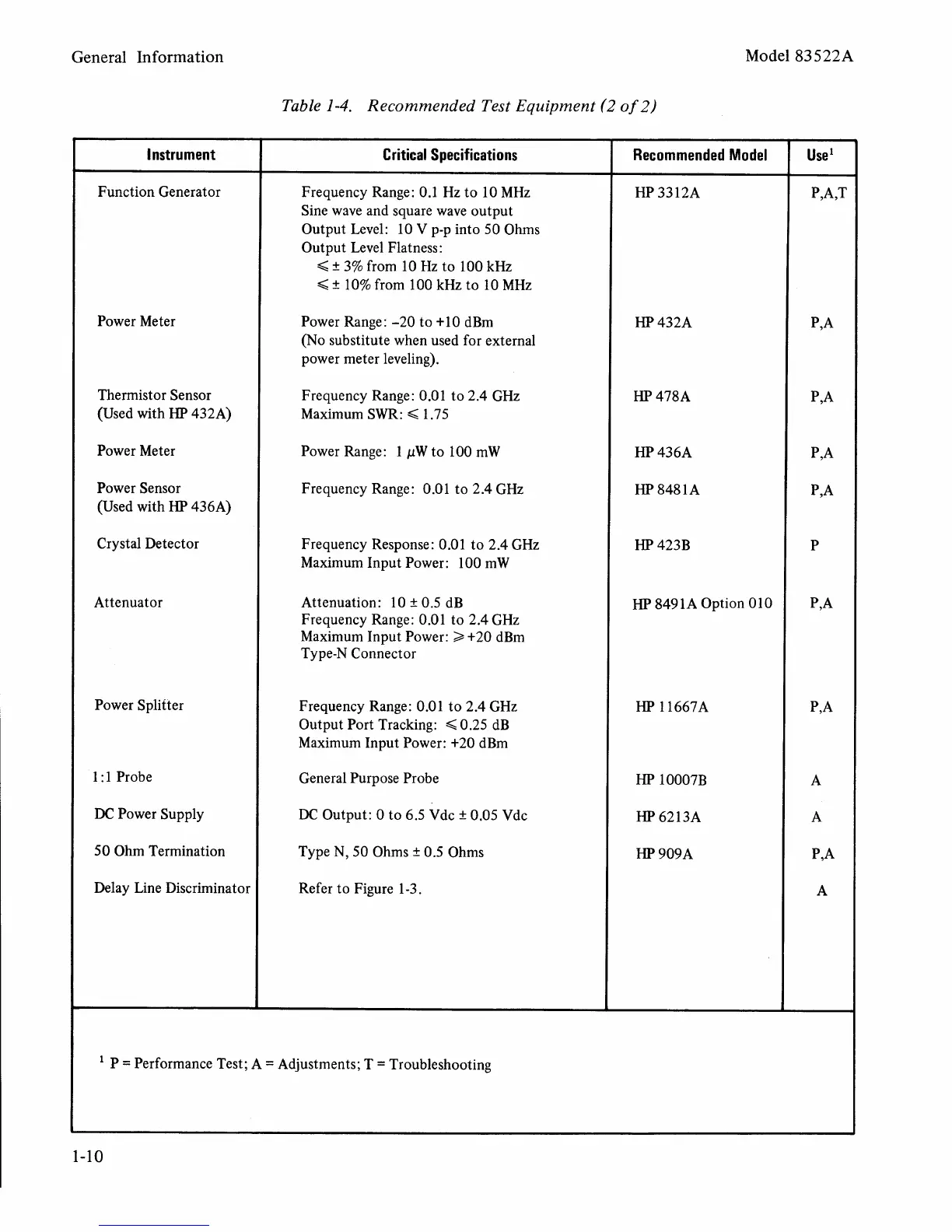

Table 1-4. Recommended Test Equipment (2 of 2)
l nstrument
Function Generator
Power Meter
Thermistor Sensor
(Used with
HP 432A)
Power Meter
Power Sensor
(Used with
HP 436A)
Crystal Detector
Attenuator
Power Splitter
1
: 1 Probe
DC Power Supply
50 Ohm Termination
Delay Line Discriminator
P
= Performance Test; A = Adjustments; T = Troubleshooting
Critical Specifications
Frequency Range: 0.1 Hz to 10 MHz
Sine wave and square wave output
Output Level: 10 V p-p into 50 Ohms
Output Level Flatness:
< + 3% from 10 Hz to 100 kHz
< + 10% from 100 kHz to 10 MHz
Power Range: -20 to +10
dBm
(No substitute when used for external
power meter leveling).
Frequency Range: 0.0 1 to 2.4
GHz
Maximum SWR: < 1.75
Power Range: 1
yW to 100 mW
Frequency Range: 0.0 1 to 2.4 GHz
Frequency Response : 0.0 1 to 2.4 GHz
Maximum Input Power: 100 mW
Attenuation: 10 + 0.5 dB
Frequency Range: 0.0 1 to 2.4
GHz
Maximum Input Power: 2 +20 dBm
Type-N Connector
Frequency Range: 0.0 1 to 2.4
GHz
Output Port Tracking: < 0.25 dB
Maximum Input Power: +20
dBm
General Purpose Probe
DC Output: 0 to 6.5 Vdc + 0.05 Vdc
Type
N, 50 Ohms + 0.5 Ohms
Refer to Figure 1-3.
*
Recommended Model
HP 3312A
HP 432A
HP 478A
HP 436A
HP 8481A
HP 423B
HP 849 1A Option 010
HP 1 1667A
HP 10007B
HP 62 13A
HP 909A
Use1
P,A,T
P,A
P,A
P,A
P,A
P
P,A
P,A
A
A
P,A
A
