Model 83522A General Information

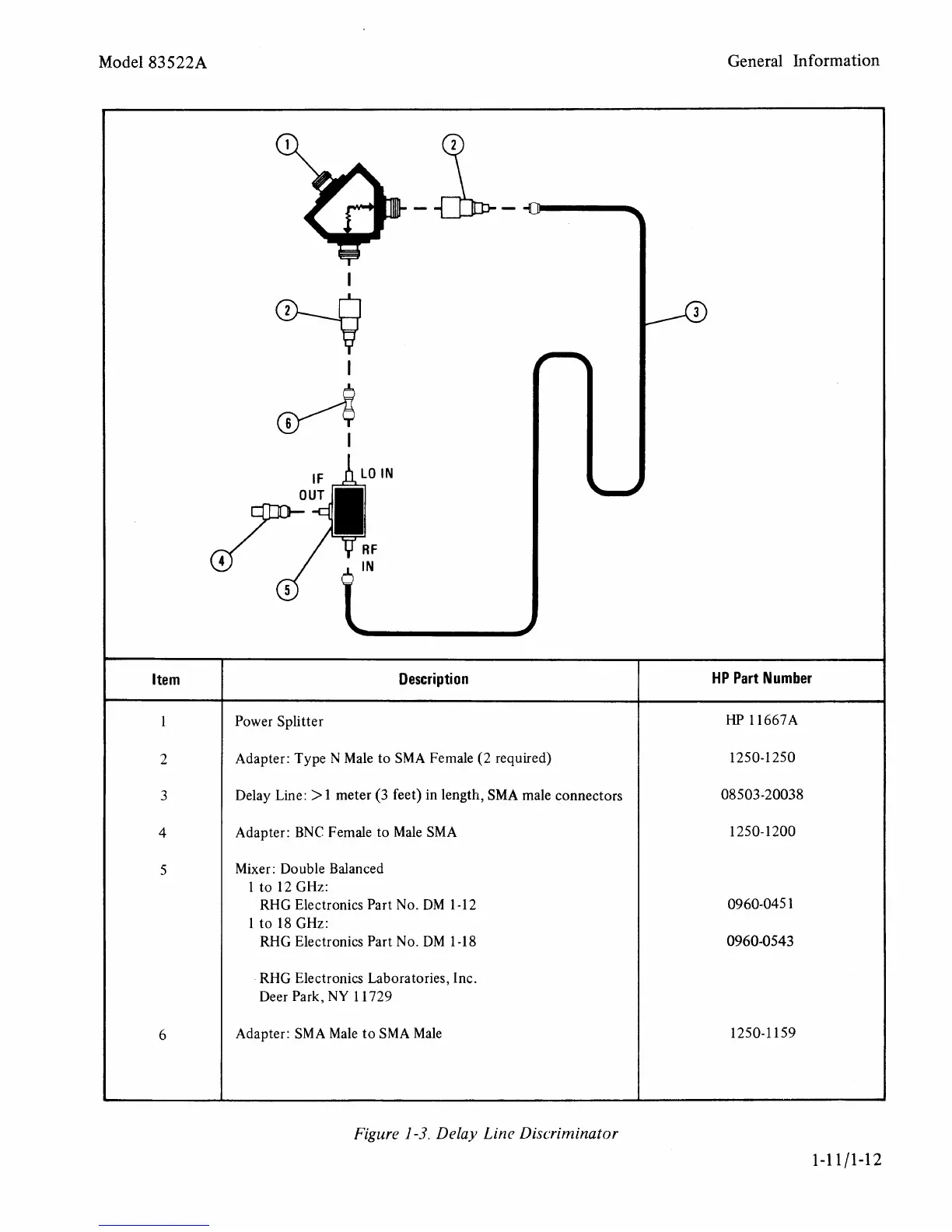

Figzrre 1-3. Delay Line Discriminator
k
I
Item
1
2
3
4
5
6
i
Description
Power Splitter
Adapter: Type N Male to SMA Female
(2 required)
Delay Line:
> 1 meter (3 feet) in length, SMA male connectors
Adapter: BNC Female to Male SMA
Mixer: Double Balanced
1 to 12 GHz:
RHG Electronics Part No. DM 1-12
1
to 18 GHz:
RHG Electronics Part No. DM 1-18
RHG Electronics Laboratories, Inc.
Deer Park, NY
1 1729
Adapter: SMA Male to SMA Male
HP Part Number
HP 1 1667A
1250-1 250
08503-20038
1250-1200
1250-1 159
