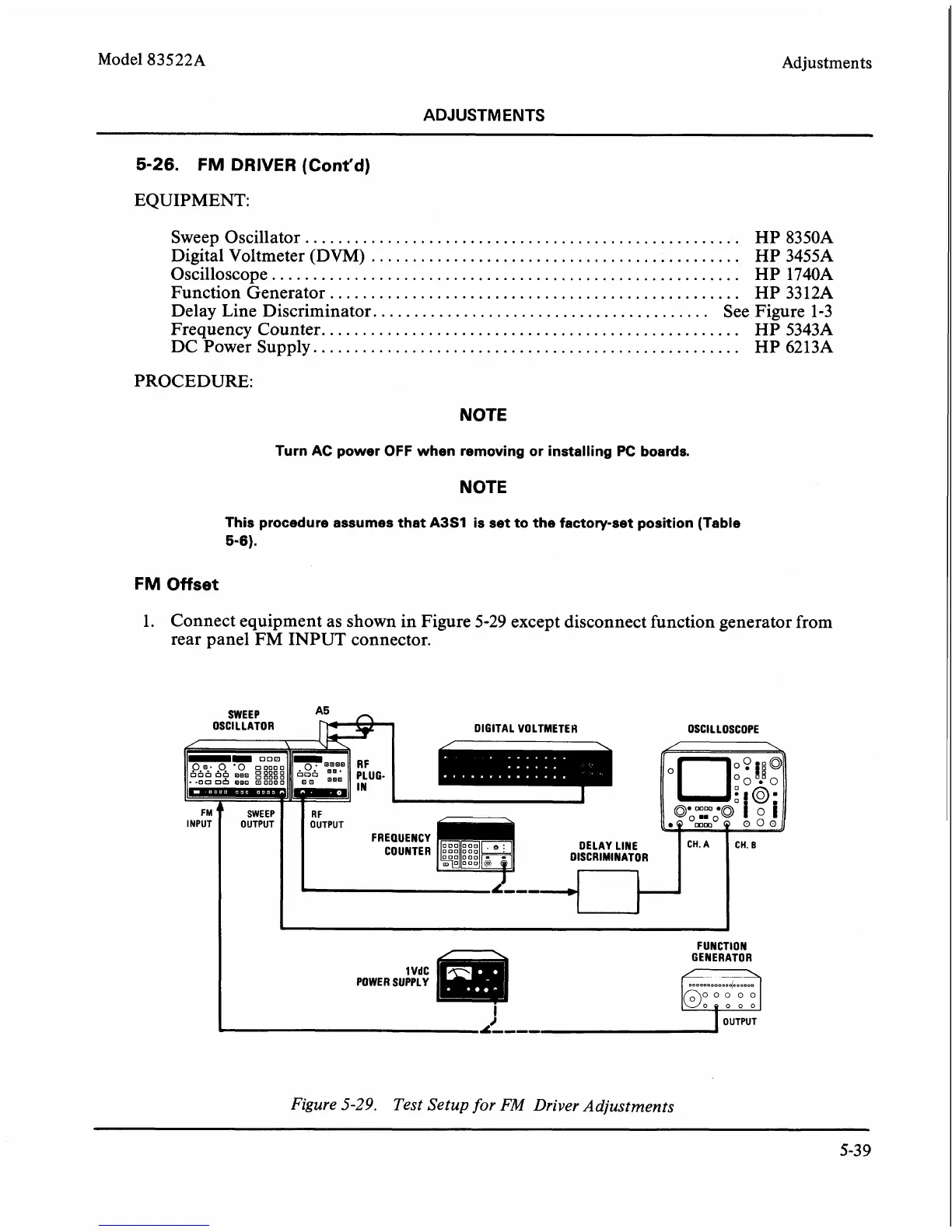

Model 83522A
ADJUSTMENTS
Adjustments
5-26.
FM
DRIVER
(Cont'd)
EQUIPMENT:
Sweep Oscillator.
....................................................
HP 8350A
Digital Voltmeter (DVM)
.............................................
HP 3455A
Oscilloscope
.........................................................
HP 1740A
Function Generator
..................................................
HP 33 12A
Delay Line Discriminator.
........................................
See Figure 1-3
Frequency Counter.
..................................................
HP 5343A
DC Power Supply.
...................................................
HP 6213A
PROCEDURE:
NOTE
Turn
AC
power
OFF
when removing or installing
PC
boards.
NOTE
This procedure assumes that
A3S1
is set to the factovset position (Table
5-6).
FM
Offset
1. Connect equipment as shown in Figure 5-29 except disconnect function generator from
rear panel
FM
INPUT connector.
SWEEP
OSCILLATOR
/
\
I
INPUT
FM
1
SWEEP
OUTPUT
DIGITAL VOLTMETER
OUTPUT
DELAY LINE
DISCRIMINATOR
OSCILLOSCOPE
FUNCTION
GENERATOR
1-
\
~o~ooooooooo(oocoooo
0:;:::
I
OUTPUT
Figure
5-29.
Test Setup for FM Driver Adjustments
