ADJUSTMENTS
Adjustments
5-27.
MARKER AND SAMPLER ADJUSTMENTS (Cont'd)
EQUIPMENT:
....................................................
Sweep Oscillator. HP 8350A
........................................................
Oscilloscope. HP 1740A
..................................................
Frequency Counter. HP 5343A
.................................................
50 Ohm Termination. HP 909A
PROCEDURE:
NOTE
Turn ac power off when removing or installing PC boards.
NOTE
This procedure assumes that A3S1 is set to the factory-set position (Table
5-6).
1. Place A8 assembly on extender board. Connect equipment as shown in Figure 5-32.
Terminate 83522A RF output in 50 Ohms. Set 1740A Oscilloscope to A vs. B sweep
mode to obtain horizontal deflection as a function of the
8350A SWEEP OUT.
SWEEP
A8
nc----------
FREQUENCY
OSCILLATOR COUNTER
OSCILLOSCOPE
R F
PLUG-IN
;,":zT 1 1 RF OUTPUT
I I
son CH.A CH B
TERMINATION

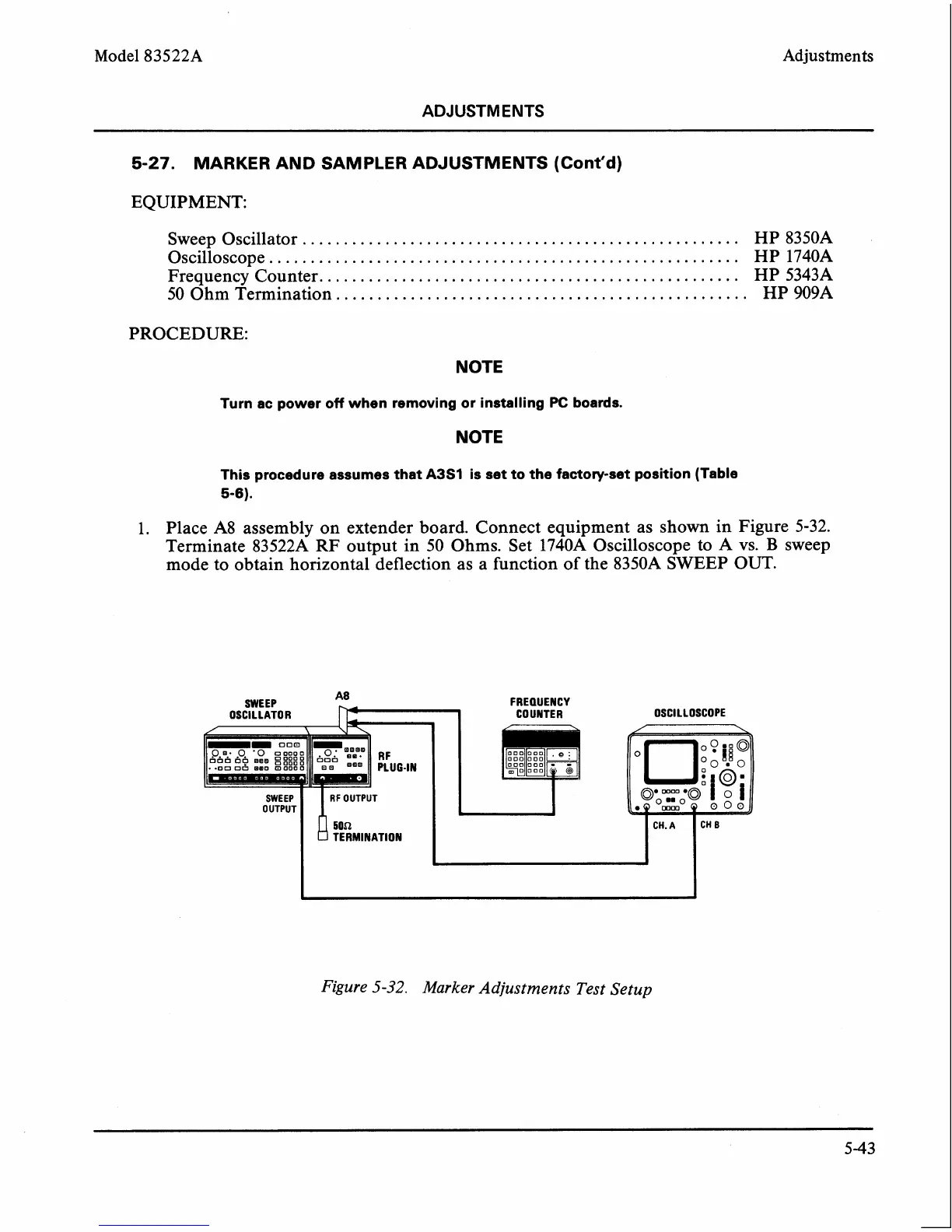

Figure 5-32.
Marker Adjustments Test Setup
