HP 83522A User Manual

Model 83522A
ADJUSTMENTS
Adjustments
5-28. EXTERNAL MARKER ADJUSTMENT (Cont'd)
EQUIPMENT:
Sweep Oscillator
..................................................... HP 8350A
RF Marker Source. ...........................................
HP 8350N83522A
Swept Amplitude Analyzer. ........................................... HP 8755C
Detector. ........................................................... HP 11664A
Oscilloscope.. ....................................................... HP 1740A
10 dB Attenuator.. ........................................ HP 8491A Option 010
PROCEDURE:
NOTE
This procedure assumes that A3S1 is set to the factory-set position (Table
5-6), and at the
8350A Sweep Oscillator, 27.8 kHz square wave modulation
is selected.
1. Connect equipment as shown in Figure 5-39. Set external marker source to a selected
marker frequency. Set power level between -10 and +10 dBm.
RF MARKER SOURCE
SWEPT AMPLITUDE
ANALYZER
OSCILLOSCOPE
10 dB ATTENUATOR

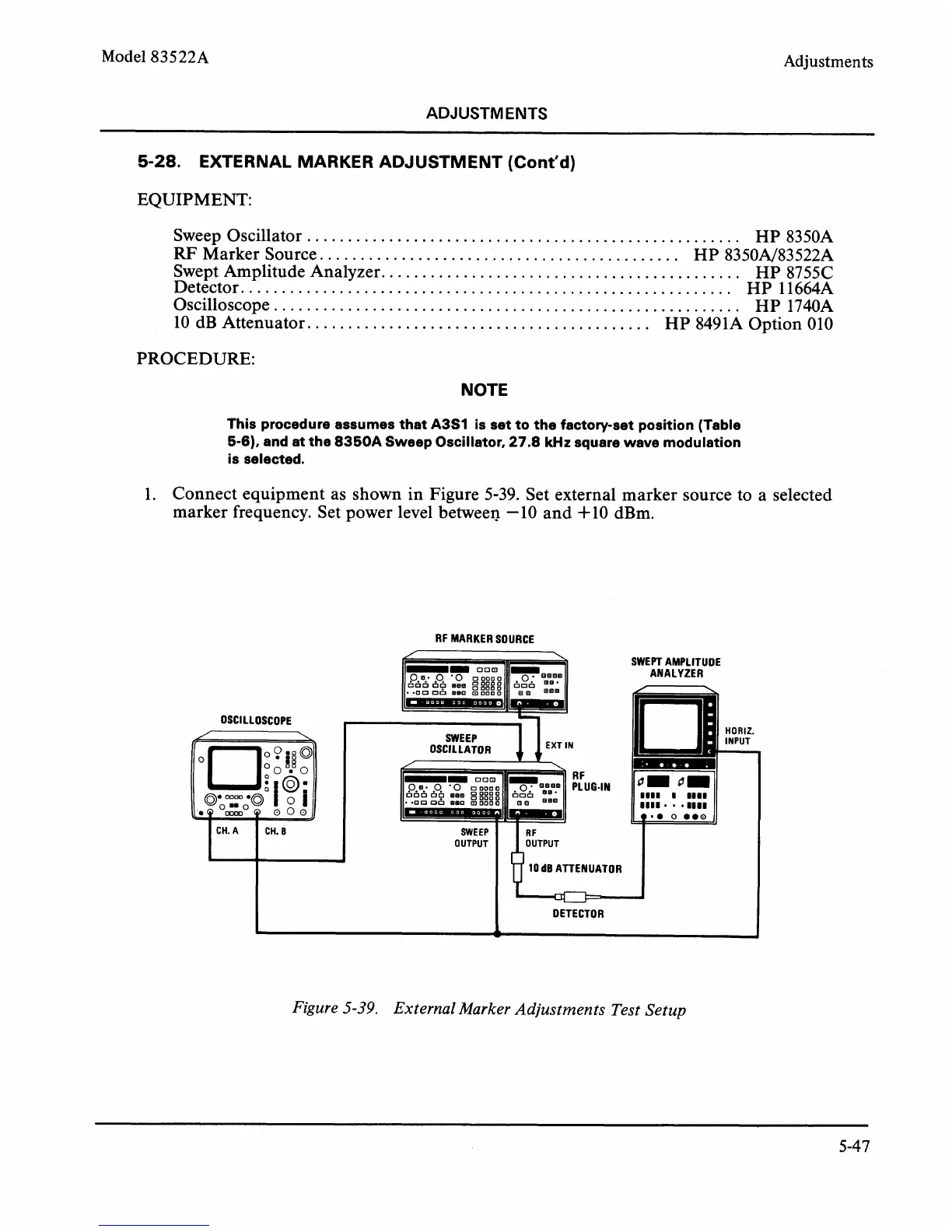

Figure 5-39. External Marker Adjustments Test Setup
