HP 8559A User Manual

MODEL 8559A
PERFORMANCE TESTS
PERFORMANCE TESTS

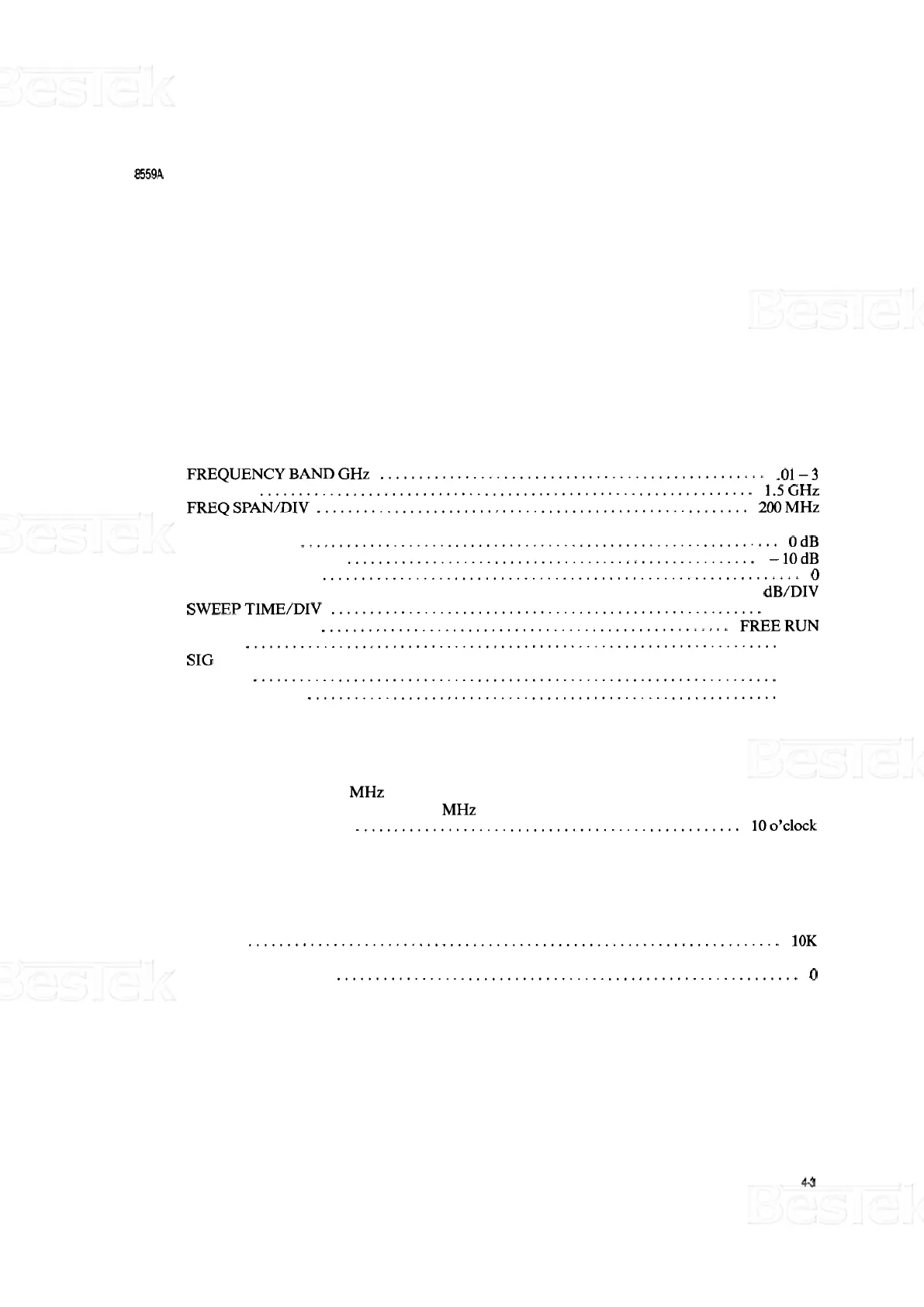

4 - 11. FREQUENCY SPAN ACCURACY (Cont'd)
PROCEDURE:
1.
Set equipment controls
as follows:
Spectrum Analyzer:
FREQUENCYBANDGHz .................................................. .01-3
TUNING ................................................................ 1.5GHz
FREQSPAIWDIV ........................................................ 200MHz
...................................
RESOLUTION BW
OPTIMUM, coupled (pushed in)
INPUTATTEN
.............................................................. OdB
REFERENCELEVEL ..................................................... -1OdB
REFLEVELFINE .............................................................. 0
........................................................
Amplitude Scale 10 dB/DIV
SWEEPTIME/DIV ........................................................ AUTO
SWEEPTRIGGER
..................................................... FREERUN
ALTIF ..................................................................... OFF
.................................................................
SIG IDENT OFF
BLCLIP
.................................................................... OFF
VIDEOFILTER
............................................................. OFF
Comb Generator:
...............................................
COMB FREQUENCY - MHz
100 MC
......................................
INTERPOLATION AMPLITUDE - 1 MHz OFF
OUTPUTAMPLITUDE
.................................................. 10o'clock
Function Generator:
................................................................
FUNCTION SINE
RANGE
..................................................................... 10K
................................................................
Frequency 200 kHz
DCOFFSETLEVEL
............................................................ 0
2. Connect equipment as shown in Figure 4 - 1 but do not connect function generator to comb generator.
