HP 8559A User Manual

MODEL 8559A
PERFORMANCE TESTS
PERFORMANCE TESTS

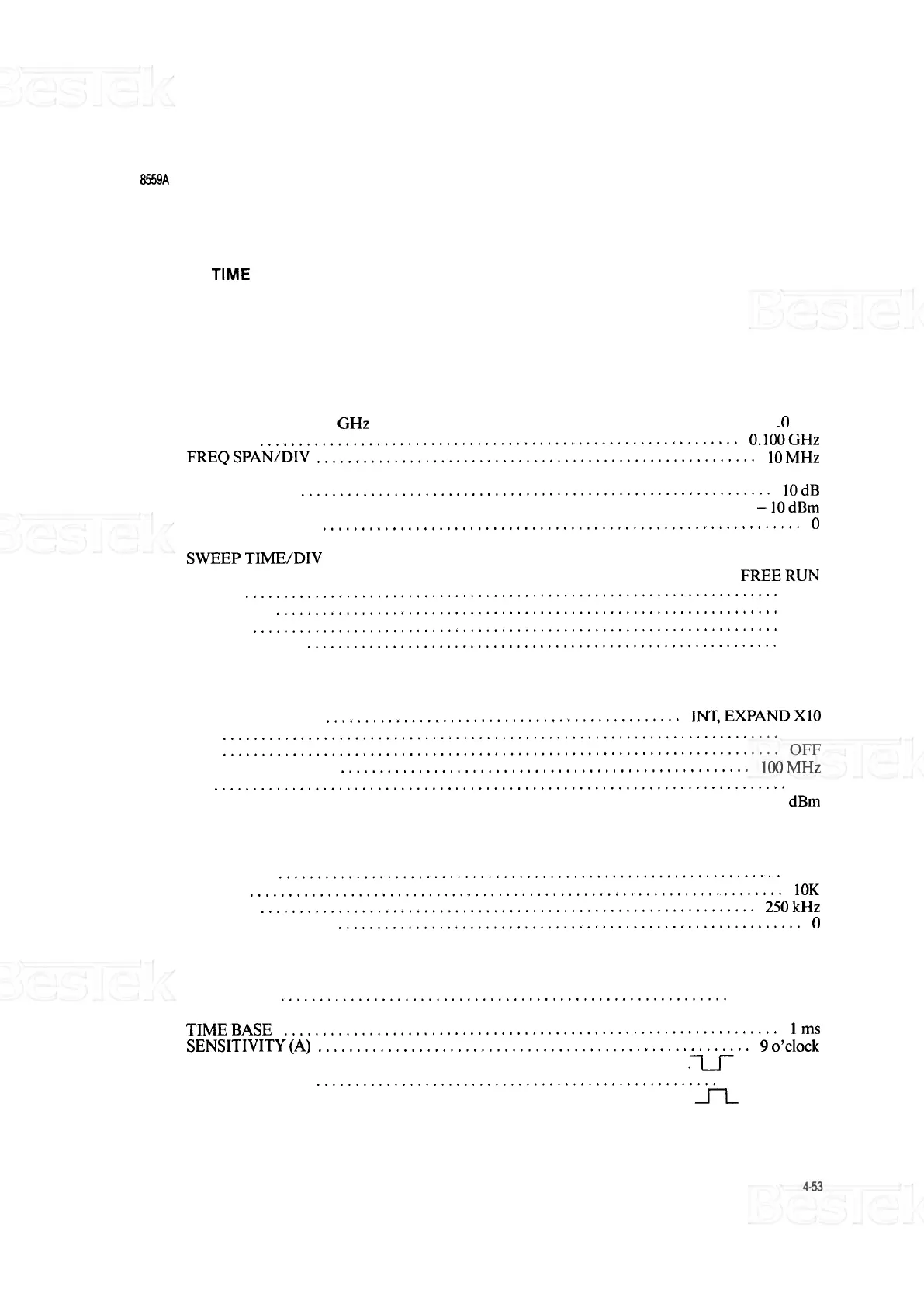

4 - 24. SWEEP TIME ACCURACY (Cont'd)
PROCEDURE:
1. Set equipment controls as follows:
Spectrum Analyzer:
..................................................
FREQUENCY BAND GHz
.0 1 - 3
TUNING .............................................................. 0.100GHz
FREQSPAWDIV ......................................................... 10MHz
...............................................
RESOLUTION BW 3 MHz, uncoupled
INPUTATTEN
............................................................. 10dB
....................................................
REFERENCELEVEL -10dBm
REFLEVELFINE .............................................................. 0
..............................................................
Amplitude Scale LIN
........................................................
SWEEPTIME/DIV AUTO
.....................................................
SWEEPTRIGGER FREERUN
ALTIF ..................................................................... OFF
SIGIDENT
................................................................. OFF
BLCLIP
.................................................................... OFF
VIDEOFILTER
............................................................. OFF
Signal Generator:
COUNTERMODE
.............................................. INT,EXPANDXlO
AM ........................................................................ OFF
FM
........................................................................ OFF
FREQUENCYTUNE
..................................................... 100MHz
RF .......................................................................... ON
.......................................................
OUTPUT LEVEL - 10 dBm
Function Generator:
FUNCTION
................................................................. TRI
RANGE
..................................................................... 10K
Frequency ................................................................ 250kHz
DCOFFSETLEVEL ............................................................ 0
50 MHz Universal Counter:
FUNCTION
.......................................................... PERAVGB
...............................................
SAMPLE RATE Full counterclockwise
TIMEBASE ................................................................ lms
SENSITIVITY(A) ........................................................ 9o'clock
..................................................
A 50 MHz Input
.v (falling edge)
SENSITIVITY (B)
.................................................... Full clockwise
...................................................
B 10 MHz Input n (rising edge)
